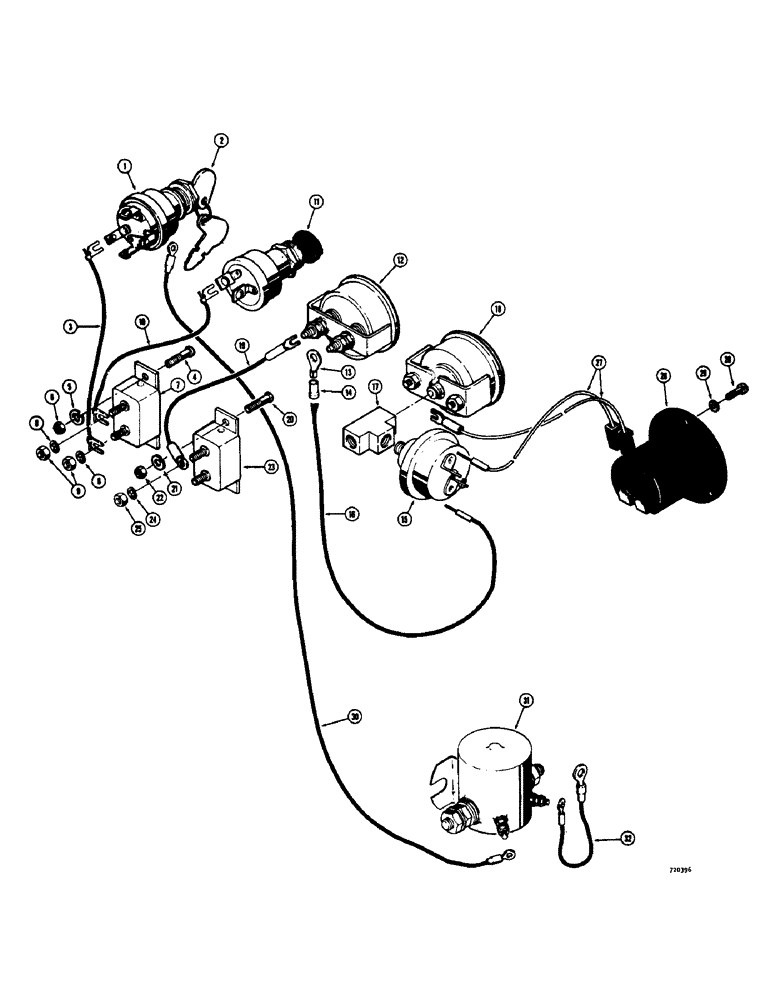

Запчасти Case 475 (054) - INSTRUMENT PANEL WIRING (55) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
D35092
SWITCH
AND KEY - electrical
1шт.
1
NSS
NOT SOLD SEPARAT
SWITCH - electrical
1шт.
2
D36822
KEY
- switch, set of two
1шт.
3
A11768
ELECTRICAL WIRE
WIRE - jumper, electrical switch to circuit breaker
1шт.
4
173-203
SCREW,Sl Rnd Hd, #6 - 32 x 1/2"
RHMS - #6 - 32 NC x 3/8" (Zinc plated)
2шт.
5
192-15
LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND
Washer, Lock, #6
2шт.
6
129-15
NUT,#6-32
2шт.
7
D37203
BREAKER
CIRCUIT BREAKER - 15 amps, 12 volt
1шт.
8
192-15
LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND
Washer, Lock, #6
2шт.
9
129-15
NUT,#6-32
2шт.
10
A11768
ELECTRICAL WIRE
WIRE - jumper, circuit breaker to light switch
1шт.
11
D35065
SWITCH
- light
1шт.
12
R18748
AMMETER
GAUGE - ammeter
1шт.
13
223-50
TERMINAL CONNECTOR,14 - 16
TERMINAL - electrical, oil pressure gauge wire
1шт.
14
223-83
SLEEVE
- terminal
1шт.
15
D28798
SWITCH
- pressure
1шт.
16
D28797
ELECTRICAL WIRE
WIRE - switch
1шт.
17
217-10
TEE,1/8" - 27 NPTF Fem
- pipe, female (1/8" NPT)
1шт.
18
D22853
GAUGE
- engine oil pressure
1шт.
19
G44017
ELECTRICAL WIRE
WIRE - jumper, ammeter to circuit breaker
1шт.
20
173-203
SCREW,Sl Rnd Hd, #6 - 32 x 1/2"
RHMS - #6 - 32 NC x 3/8" (Zinc plated)
2шт.
21
192-15
LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND
Washer, Lock, #6
2шт.
22
129-15
NUT,#6-32
2шт.
23
A22877
BREAKER,40A
CIRCUIT BREAKER - 40 amps
1шт.
24
192-18
LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND
WASHER, LOCK, #10
2шт.
25
129-37
NUT,#10-32
2шт.
D39286
GAUGE
KIT - hourmeter
1шт.
26
NSS
NOT SOLD SEPARAT
METER - engine hour
1шт.
27
D39285
ELECTRICAL WIRE
WIRE - hour meter (36" long)
2шт.
D39284
KIT
PACKAGE - mounting hardware
1шт.
28
173-61
SCREW,Sl Rnd Hd, #6 - 32 x 1/2"
RHMS - #6 - 32 NC x 1/2"
3шт.
29
193-24
LOCK WASHER,Int Tooth, #6
WASHER, LOCK, Int Tooth, #6
3шт.
30
G13087
CABLE PULLING GRIP
WIRE - jumper, circuit, Serial Range: breaker-solenoid
1шт.
31
D31479
SOLENOID SWITCH
SWITCH - solenoid, electrical, Serial Range: switch-starter
1шт.
32
D31548
ELECTRICAL WIRE
WIRE - ground, solenoid
1шт.
Выбрано товаров: 35
