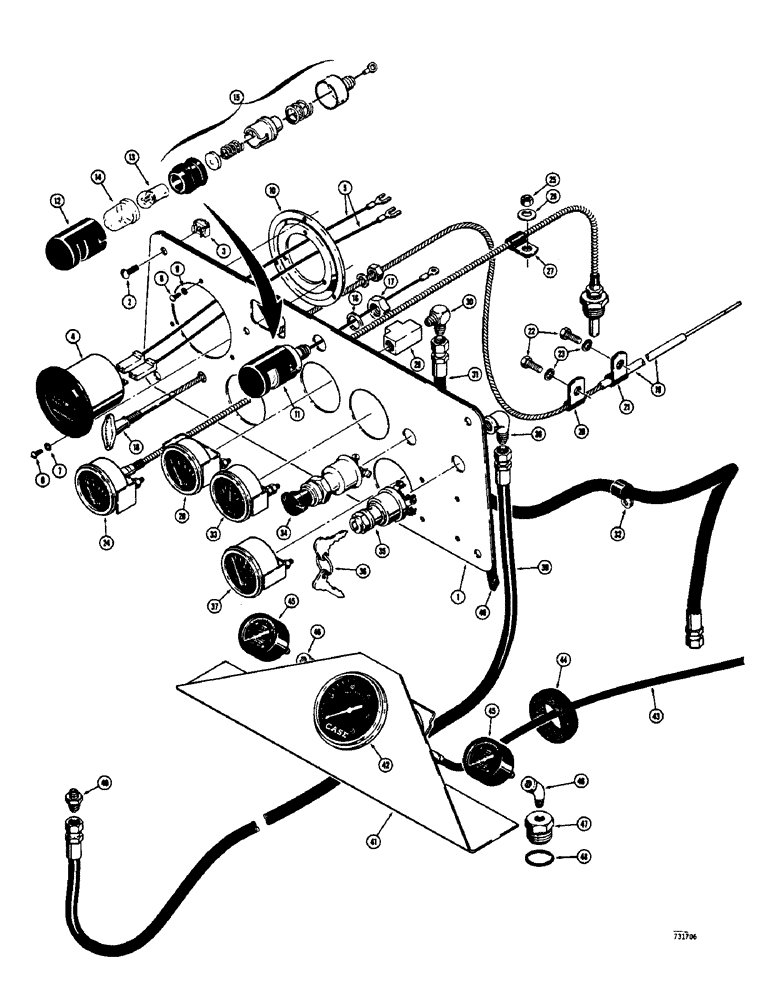

Запчасти Case 475 (052) - INSTRUMENT PANEL AND GAUGES (55) - ELECTRICAL SYSTEMS

1

R25583

PANEL

- instrument

1шт.

2

174-212

SCREW,Sl Rnd Hd, 5/16" - 24 x 3/4"

RHMS - 5/16" - 24 NF x 7/8"

4шт.

3

131-139

SPRING NUT,Ret, 5/16"-24

Tinnerman Ret, 5/16"-24

4шт.

D39286

GAUGE

KIT - hourmeter

1шт.

4

NSS

NOT SOLD SEPARAT

METER - hour

1шт.

5

D39285

ELECTRICAL WIRE

WIRE - hourmeter (36" long)

2шт.

D39284

KIT

PACKAGE - mounting hardware

1шт.

6

173-61

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

RHMS - #6 - 32 NC x 1/2"

3шт.

7

193-24

LOCK WASHER,Int Tooth, #6

WASHER, LOCK, Int Tooth, #6

3шт.

8

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

RHMS - #6 - 32 NC x 1/2" (Zinc plated)

3шт.

9

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

3шт.

10

D35079

DAMPER

DAMPENER - vibration

1шт.

11

D33212

INTERIOR LIGHT

LAMP - dash, complete

1шт.

12

R22238

COVER - dash light

1шт.

13

71421

BULB,R5W, 12V, 5W

1шт.

14

R22232

SIGHTGLASS

LENS - dash light

1шт.

15

NSS

NOT SOLD SEPARAT

BASE AND MOUNT ASSEMBLY

1шт.

16

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

17

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - hex., jam (5/8" - 18NC)

1шт.

18

R30305

CABLE

CONTROL - engine shutoff

1шт.

19

F19416

TUBE

- cable, engine shutoff

1шт.

20

49839

CLAMP

- shutoff cable

1шт.

21

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- shutoff tube

1шт.

22

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

23

92-6

LOCK WASHER,3/8"

2шт.

24

11284

ELECTRICAL GAUGE

GAUGE - engine heat

1шт.

25

25-107

NUT,7/16"-14, G5

- hex. (7/16" - 14 NC)

1шт.

26

195-29

WASHER,7/16"

- plain, 7/16"

1шт.

27

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- tube, engine heat

1шт.

28

D22853

GAUGE

- oil pressure, engine

1шт.

29

217-10

TEE,1/8" - 27 NPTF Fem

- pipe (1/8" NPT)

1шт.

30

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- male, 90 degrees

2шт.

31

D95115

HOSE

- engine oil pressure

1шт.

32

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- hose, engine oil pressure

1шт.

33

R18748

AMMETER

GAUGE - ammeter

1шт.

34

D35065

SWITCH

- light

1шт.

D35092

SWITCH

AND KEY - ignition

1шт.

35

NSS

NOT SOLD SEPARAT

SWITCH - electrical

1шт.

36

D36822

KEY

- ignition (Set of two)

1шт.

37

D29570

GAUGE

- oil pressure, transmission

1шт.

38

218-511

ELBOW,90º, 7/16"-20, 37º x 1/8"-27, Fem NPTF

- female, 90 degrees

1шт.

39

R24455

HOSE ASSY.

HOSE - transmission oil pressure

1шт.

40

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - male, straight

1шт.

41

R25582

BRACKET

- tachometer

1шт.

42

D38122

TACHOMETER

1шт.

43

A59691

CABLE

- tachometer

1шт.

44

D35078

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

- cable

1шт.

45

R29792

GAUGE ASSY.

GAUGE - oil pressure, filter

2шт.

46

221-401

ELBOW,45 Degree, 1/8"-27, NPT

- street, 45 degrees

2шт.

47

R26251

ADAPTER - special

2шт.

49

R26191

TRIM - instrument panel (If used)

1шт.

48

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.
