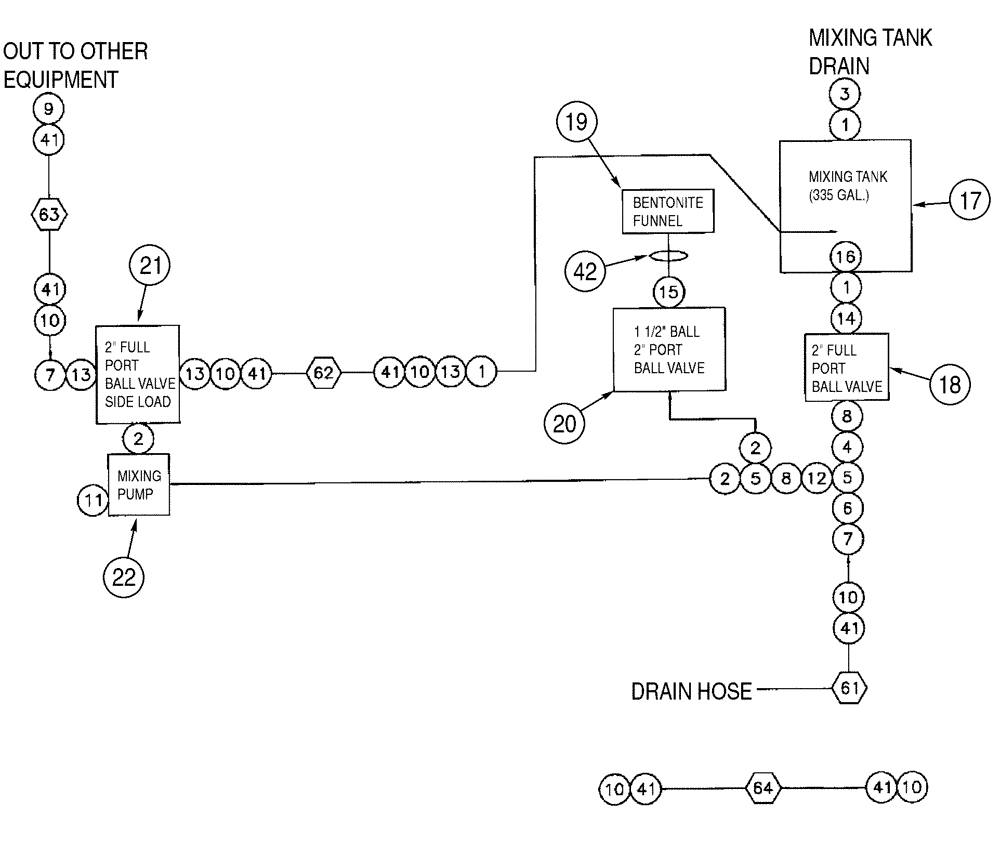

Запчасти Case BPM335 (09-30) - BPM335 PUMP, MIXING AND INJECTOR SYSTEM

1

98060516

FITTING

2 in blkhd

3шт.

2

98024112

NIPPLE, LUBE

NIPPLE , 2 in PT

3шт.

3

98020032

PLUG

2 in, Square Head, Drain

1шт.

4

98020018

NIPPLE, LUBE

NIPPLE , 2 PT x 6 in

1шт.

5

52110011

TEE

2 in fem PT

2шт.

6

98200618

ADAPTER

2 in PT, male

1шт.

7

98220018

CAP

2 in

2шт.

8

98020312

PIPE

2 in PT

2шт.

9

98200518

ADAPTER

To Machine

1шт.

10

98200318

COUPLING

2 in fem barb

4шт.

11

99682912

DRAIN VALVE

1/4 PT

1шт.

12

326201A1

NIPPLE, LUBE

NIPPLE , 2 x 3 in

1шт.

13

98029012

ADAPTER,2" Male Thread

3шт.

14

98024012

TRANSMISSION SLEEVE

2 PT x 4 in

1шт.

15

69332040

FITTING

2 x 2-1/2 in PT

1шт.

16

301966A1

TUBE,1" ID, 2.375" OD, 12, 4.5" Length

2 NPT, Siphon

1шт.

17

99040300

TANK

335 gal, Bentonite Tank

1шт.

18

52120111

VALVE

2 in PT, Component Parts Not Serviced Separately

1шт.

19

98184415

FUNNEL

1шт.

20

52120011

VALVE

2 Inch PT With 1-1/2 Inch Port, Component Parts Not Serviced Separately

1шт.

21

98022212

VALVE

2 in PT, Component Parts Not Serviced Separately

1шт.

22

349365A1

PUMP

Mixing Pump, With 5.5 hp Honda Engine, Vendor Part Number 200PI-5H, Component Parts Not Serviced Separately

1шт.

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16 x 1-1/4

4шт.

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

8шт.

231-1445

NUT,5/16"-18, GB

4шт.

41

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

7шт.

42

89700032

CLAMP

2 in

1шт.

61

307360A1

HOSE

2 in ID x 1220 mm

1шт.

62

307359A1

HOSE

3/4 x 715 mm

1шт.

63

307358A1

HOSE

2 in ID x 865 mm

1шт.

64

371041A2

HOSE ASSY.

2 in ID x 15240 mm

1шт.
