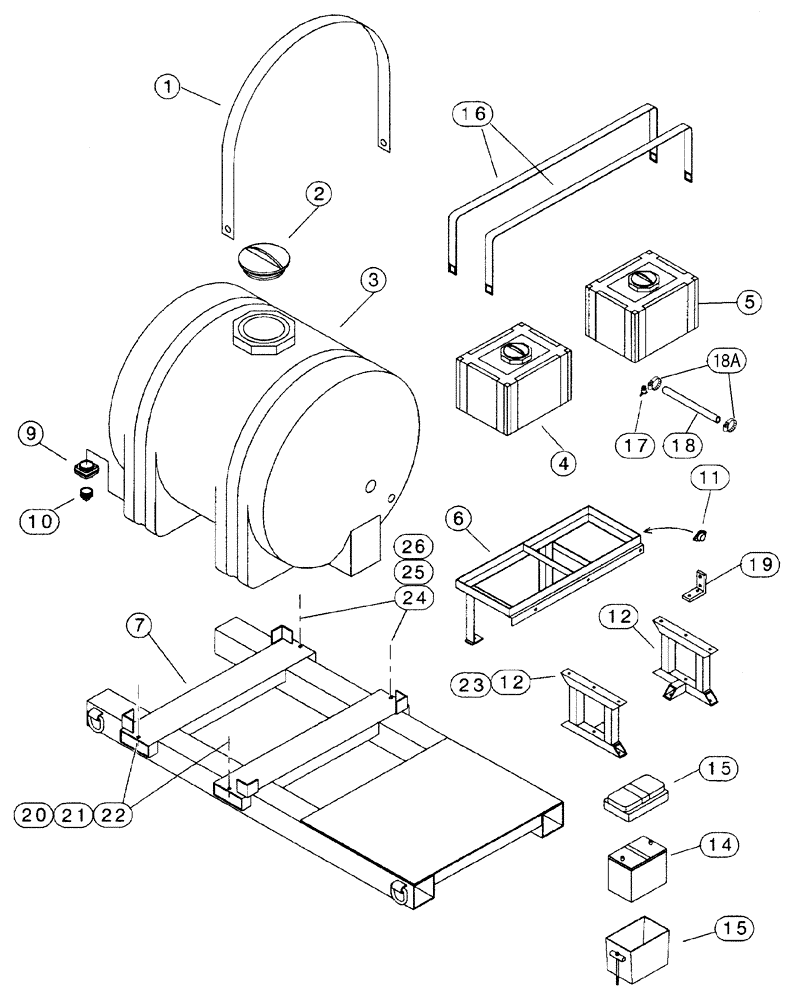

Запчасти Case BPGHP335 (09-19) - BPDHP335 FRAME AND BENTONITE TANK

1

99040301

STRAP

2шт.

2

NSS

NOT SOLD SEPARAT

Cap

1шт.

3

99040300

TANK

335 gal, Bentonite Tank

1шт.

4

15012035

PLASTIC

12 gal, Anti-Freeze

1шт.

5

98031010

RESERVOIR

12 gal, Fuel

1шт.

6

308212A1

STAND

Fuel / Flush Tank

1шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

231-1448

NUT,1/2"-13, GB

2шт.

7

98600335

SUPPORT

Skid

1шт.

9

98060516

FITTING

2 in blkhd

1шт.

10

98020032

PLUG

2 in

1шт.

11

02360213

CONTROL

Female

1шт.

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

496-21028

WASHER,.281" x 5/8" x .075", HDN

9/32 x 5/8 x 5/64

4шт.

231-1444

NUT,1/4"-20, GB

2шт.

12

317927A1

STAND

Engine Enclosure

1-2шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

6шт.

496-21053

WASHER,17/32" x 1 1/16" x .134"

10шт.

231-1448

NUT,1/2"-13, GB

6шт.

14

40341215

BATTERY

1шт.

TX400303

TERMINAL CONNECTOR

Battery

2шт.

98007522

CABLE ASSY.

Jumper Cable

1шт.

15

98091765

BOX

Battery

1шт.

413-6120

BOLT,Hex, 3/8" - 16 x 7-1/2", Gr 5

3/8 x 7-1/2

2шт.

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

231-1446

NUT,3/8" - 16, Gr 5

2шт.

16

98033513

CABLE TIE

CABLE STRAP

2шт.

17

99682912

DRAIN VALVE

1/4 PT

1шт.

18

325396A1

HOSE

1/4 ID x 1375 mm, Fuel

1шт.

18

325397A1

HOSE

1220 mm, Fuel

1шт.

18

325398A1

HOSE

1/4 ID x 305 mm, Fuel

1шт.

18

325400A1

HOSE

1/4 ID x 245 mm, Fuel

1шт.

18a

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

No. 4

8шт.

19

TX440164

BRACKET

Fuel Filter Mounting

1шт.

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

20

325058A1

BOLT

3/8 x 5, J-Type

2шт.

21

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

22

231-1446

NUT,3/8" - 16, Gr 5

2шт.

23

98040316

STAND

Engine Enclosure, No Longer Available, Order REF 12

1шт.

24

461-73120

HEX SOC SCREW,Btn Hd, 5/16"-18 x 1 1/4"

5/16 x 1-1/4

2шт.

25

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

26

231-1445

NUT,5/16"-18, GB

2шт.

496-21028

WASHER,.281" x 5/8" x .075", HDN

9/32 x 5/8 x 5/64

2шт.

231-1444

NUT,1/4"-20, GB

2шт.

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.
