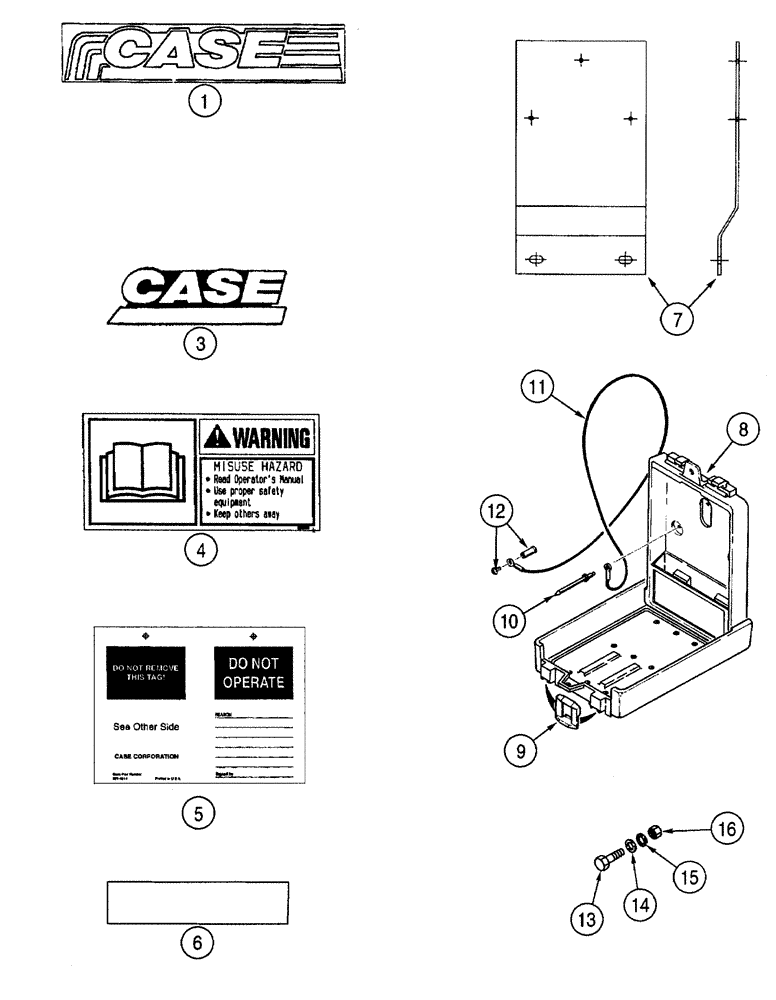

Запчасти Case BPGHP335 (09-18) - BPGHP335 DECALS

1

179217A2

DECAL

Case, With Stripes, Left-Hand

1шт.

1

179218A2

DECAL

Case, With Stripes, Right-Hand, Not Illustrated

1шт.

3

187186A1

SYMBOLS

SYMBOL , Case

1шт.

4

283605A1

DECAL

Misuse Hazard

1шт.

5

321-4614

TAG

Do Not Operate

1шт.

6

110528A1

ADHESIVE STRIP

76 x 318 mm, Anti-Skid

8шт.

7

300722A1

BRACKET

1шт.

8

R46464

CASE

Includes 9

1шт.

9

NSS

NOT SOLD SEPARAT

Latch

2шт.

10

151-522

RIVET,Pop, 3/16" x .575"

3/16 x 7/32

3шт.

11

R46465

CABLE,36mm L

Manual Retention

1шт.

12

R46463

SCREW,0.18" x 0.75"

1шт.

13

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

14

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

15

492-11031

LOCK WASHER,5/16"

2шт.

16

234-10431

CROWN NUT,Crown, 5/16"-18

2шт.
