Запчасти Case BPGHP335 (09-15) - BPGHP335 PANEL, CONTROL

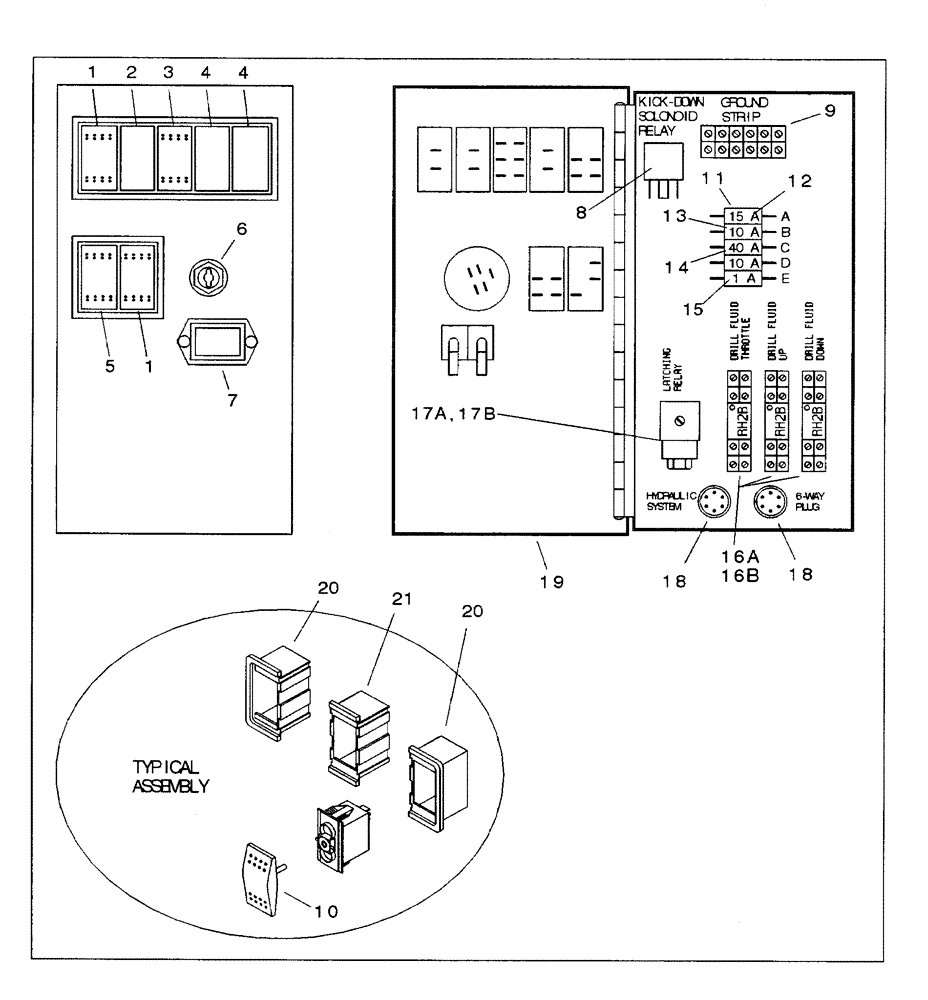

Схема запчастей Case BPGHP335 - (09-15) - BPGHP335 PANEL, CONTROL
16a
10
20
17a
8
3
2
5
18
7
13
1
16b
18
6
1
17b
11
4
12
14
21
15
9
4
20
19

Артикул

Название

Примечание

Количество

1

TX444321

SWITCH

On/Off, DPST (Double Pole, Single Throw), Mounts In Panel

2шт.

2

TX452251

LIGHT

Indicator, Blue

1шт.

3

TX444324

SWITCH

On/Off/On, Momentary, DPDT (Double Pole, Double Throw), Mounts In Panel

1шт.

4

TX452241

LIGHT

Indicator, Green

2шт.

98052244

LIGHT

Up/Down, Drill Fluid, Mounts In Panel

1шт.

5

TX444305

SWITCH

On/Off, With Lamp, SPST (Single Pole, Single Throw)

1шт.

6

NSS

NOT SOLD SEPARAT

Switch, Ignition

1шт.

7

98085094

HOURMETER

Mounts To Door

1шт.

8

TX445113

RELAY

Engine Seat / Shutdown, Mounts To Board

1шт.

9

12071513

BLOCK

Terminal, Mounts To Board

1шт.

440-1068

SCREW,Cross Pan Hd, #6-32 x 1/2"

2шт.

225-14106

NUT,#6-32

2шт.

12037211

POINT

Mounts To Terminal Block

7шт.

10

TX444361

ACTUATOR

4шт.

11

TX403504

BLOCK

Fuse, Mounts To Board

1шт.

440-10616

SCREW,Cross Pan Hd, #6-32 x 1"

2шт.

225-14106

NUT,#6-32

2шт.

12

A149801

FUSE,Lt Blue, 15 Amp

15 amp, Light Blue

1шт.

13

A149800

FUSE,10 Amp

10 amp, Red

2шт.

14

325665A1

FUSE

40 amp, Amber

1шт.

15

A187975

FUSE

1 amp, Blade Type

1шт.

16a

TX402005

SOCKET/RECEPTACLE

Relay, Mounts To DIN Rail

3шт.

16b

TX400212

RELAY

Mounts To Socket

3шт.

17a

98055039

RELAY

Mounts To Base

1шт.

17b

98050311

BASE

Mounts To Board

1шт.

225-14108

NUT,#8-32

1шт.

18

TX402451

MULTIPOLE CONNECTOR,Male, 6 Pole

Male, Panel Mounting, Mounts To Box

2шт.

440-1068

SCREW,Cross Pan Hd, #6-32 x 1/2"

8шт.

225-14106

NUT,#6-32

8шт.

TX402458

CONNECTOR, ELEC

CONNECTOR , Female, Mounts To Male Connector

2шт.

19

98801210

BOX

1шт.

225-14108

NUT,#8-32

Door Mounting

4шт.

20

TX444383

CONTROL PANEL

Switch and Lamp Mounting, End, Mounts To Box Door

4шт.

21

TX444384

CONTROL PANEL

Switch and Lamp Mounting, Center, Mounts To Box Door

2шт.

440-1104

SCREW,Cross Pan Hd, #10-24 x 1/4"

No. 10 x 1/4, Board To Box

4шт.

260-1438

SELF-TAP SCREW,Cross Pan Hd, #6 x 1/2"

No. 6 x 1/2 st, Door Latch To Door

3шт.

TX401000

RAIL

3-1/2, DIN Mounting, Mounts To Board

1шт.

282-1448

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

No. 8-18 x 1

2шт.

TX402212

MULTIPOLE CONNECTOR

12 Ground DIN With LED, To Machine

1шт.

98007522

CABLE ASSY.

Jumper Cable, Includes 02360313, TX401806

1шт.

02360313

PLUG

Male

2шт.

TX401806

HARNESS

50 ft

1шт.

Выбрано товаров: 42
