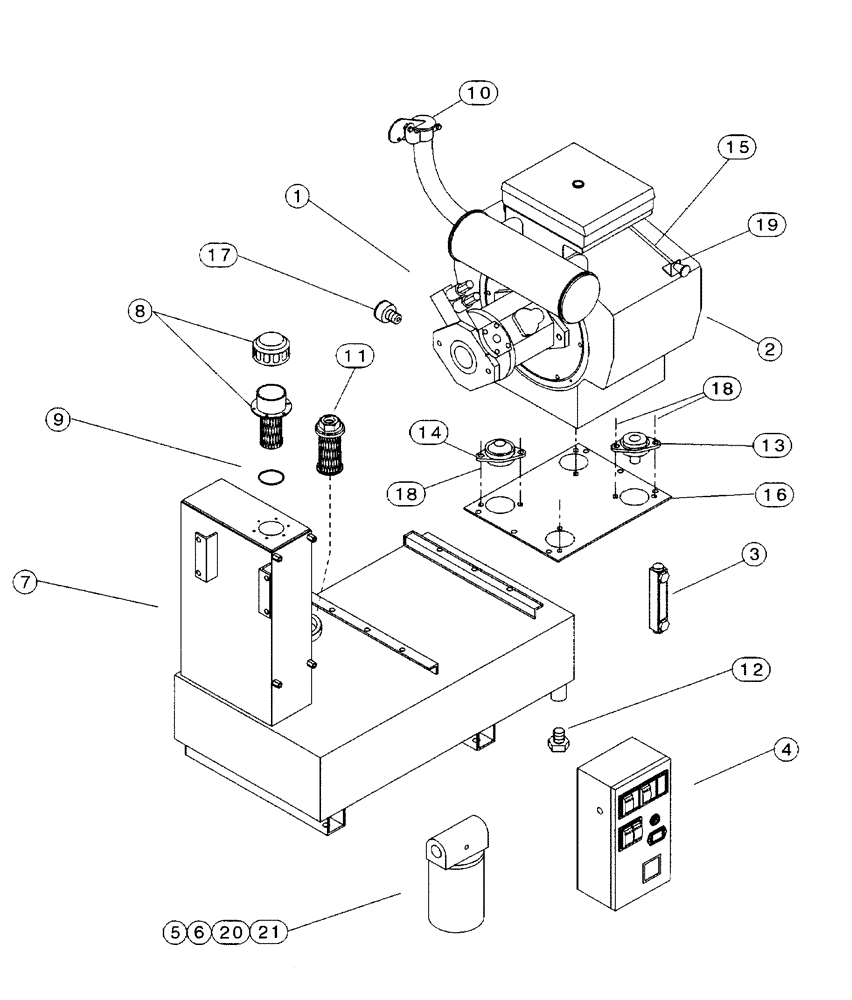

Запчасти Case BPGHP335 (09-14) - BPGHP335 ENGINE, FILTER AND RESERVOIR

1

98010180

PUMP

Load Sense Hydraulic Pump, Component Parts Not Serviced Separately

1шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

2

98000020

ENGINE ASSEMBLY

ENGINE ASSY , 20 hp, Gasoline, Onan Brand, Component Parts Not Serviced Separately

1шт.

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

496-21041

WASHER,13/32" x 13/16" x .089", HDN

8шт.

231-1446

NUT,3/8" - 16, Gr 5

4шт.

3

00370015

GAUGE

Oil, With Thermometer

1шт.

4

NSS

NOT SOLD SEPARAT

Control Assy, See Page(s) 9-57

1шт.

5

98112513

HEAD

Spin-On

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

496-21028

WASHER,.281" x 5/8" x .075", HDN

9/32 x 5/8 x 5/64

2шт.

6

98112510

ELEMENT

Filter

1шт.

7

98040320

RESERVOIR

Hydraulic Oil

1шт.

8

TX405715

FILLER CAP

Filler Cap

1шт.

9

NSS

NOT SOLD SEPARAT

Seal, Filler Cap

1шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

496-21053

WASHER,17/32" x 1 1/16" x .134"

8шт.

231-1448

NUT,1/2"-13, GB

4шт.

10

NSS

NOT SOLD SEPARAT

Cap

1шт.

11

98010301

FILTER

3-3/8 in, Suction Screen

1шт.

12

TX407518

PLUG

3/4 in, Magnetic

1шт.

13

98062265

ANCHOR

Front

2шт.

14

98062280

ANCHOR

Rear

2шт.

15

98000021

CABLE

Choke Cable

1шт.

16

98040327

LARGE PLATE

PLATE, LARGE , Engine Mounting

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

5шт.

496-21041

WASHER,13/32" x 13/16" x .089", HDN

10шт.

231-1446

NUT,3/8" - 16, Gr 5

5шт.

17

00031511

GAUGE

5000 psi, Pressure

1шт.

18

276-14612

SELF-TAP SCREW,Hex Hd, #12 x 3/4"

No. 12 x 3/4 st

8шт.

19

284237A1

BRACKET

1шт.

20

284851A1

BRACKET

Filter

1шт.

21

275-14716

SELF-TAP SCREW,Hex Hd, 1/4" x 1"

1/4-14 x 1 st

2шт.
