Запчасти Case BPGHP335 (09-45) - SKID, 24 HORSEPOWER ENGINE PUMP, MIXING SYSTEM

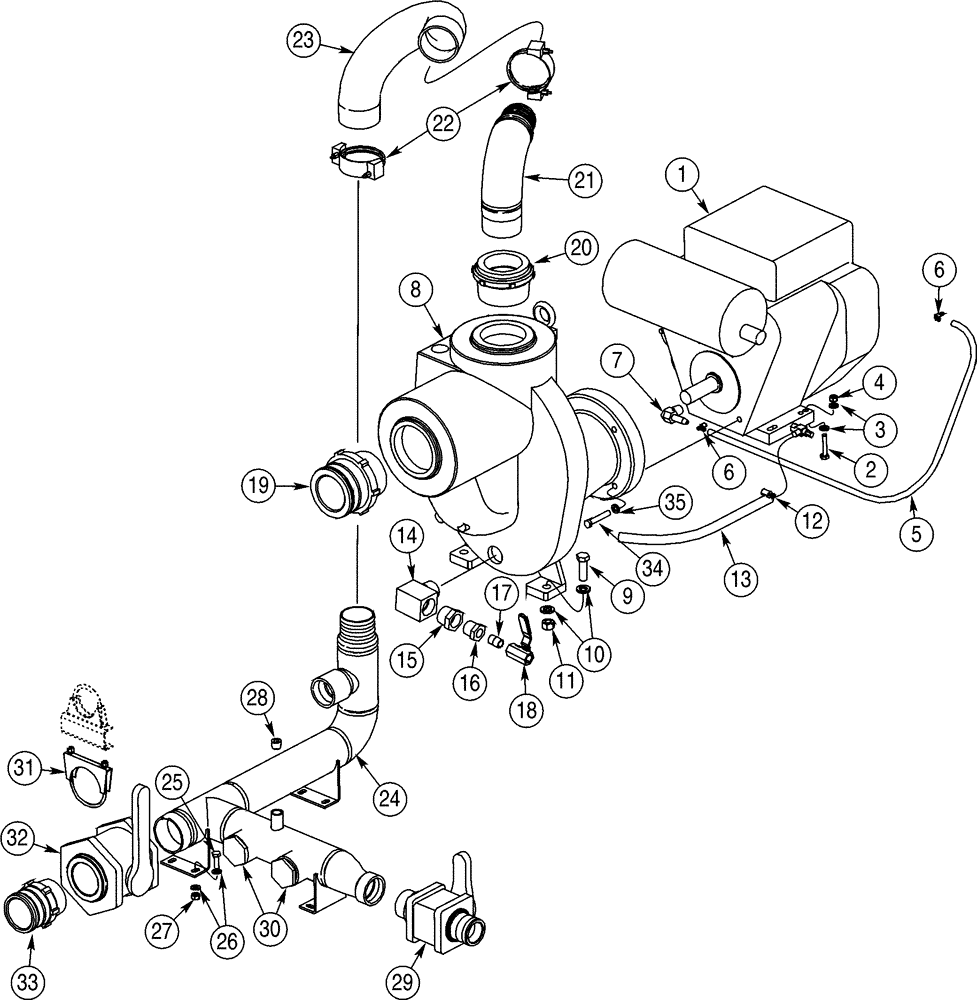

Схема запчастей Case BPGHP335 - (09-45) - SKID, 24 HORSEPOWER ENGINE PUMP, MIXING SYSTEM
12
20
33
24
32
6
3
34
7
13
35
27
11
10
16
28
9
21
19
29
18
8
1
5
17
23
15
22
6
26
30
2
25
31
4
14

Артикул

Название

Примечание

Количество

1

390200A1

ENGINE

24 hp, Honda Engine, Component Parts Not Serviced Separately

1шт.

2

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

4шт.

4

832-46410

NUT,M10 x 1.5, Cl 8

4шт.

5

325397A1

HOSE

1220 mm, Fuel, If Used

1шт.

5

412071A1

FUEL HOSE,6.40 mm ID x 1125.00 mm, SAE 30R7

If Used

1шт.

6

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

7

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

1шт.

8

390199A1

PUMP

See Page(s) 9-181B

1шт.

276-14612

SELF-TAP SCREW,Hex Hd, #12 x 3/4"

No. 12 x 3/4 st, Access Cover

2шт.

9

614-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd

2шт.

10

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

11

832-46416

NUT,M16 x 2, Cl 8

2шт.

12

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

1шт.

13

403490A2

HOSE

300 mm, Drain, Replaces 403490A1, 400 mm Long Hose

1шт.

14

221-417

ELBOW,90 Degree, 1 1/4"-11 1/2, NPT

1-1/4 NPT, Black, If Used

1шт.

14

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

1/2 PT, If Used

1шт.

15

217-1097

REDUCER,1 1/4"-11 1/2 Male NPTF x 1"-11 1/2 Female NPTF

1-1/4 male x 1 fem PTF

1шт.

16

217-1110

REDUCER,1" - 11-1/2 NPT x 1/2" - 14 NPT

1 male x 1/2 fem PTF

1шт.

17

221-1185

FITTING

1/2 PTF x 1-1/8

1шт.

18

01400111

BALANCE VALVE

1/2 fem PT

1шт.

19

392939A1

FITTING

4 stem x 4 in male PT

1шт.

20

387971A1

BUSHING

4 male x 3 in fem PT

1шт.

21

402465A1

ELBOW

1шт.

22

398648A1

CLAMP

2шт.

23

403162A1

HOSE

627 mm

1шт.

24

398611A1

MANIFOLD ASSY

Component Parts Not Serviced Separately

1шт.

25

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

6шт.

27

832-46410

NUT,M10 x 1.5, Cl 8

6шт.

28

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

2шт.

29

387986A1

VALVE

2 fem stem x 2 in male PT, Component Parts Not Serviced Separately

1шт.

30

402579A1

PLUG

2шт.

31

A17851

CLAMP

1шт.

32

387984A1

VALVE

3 in male PT, Component Parts Not Serviced Separately

1шт.

33

387977A1

FITTING

1шт.

34

426-740

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 8

7/16 x 2-1/2

4шт.

35

492-11044

LOCK WASHER,7/16"

4шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

26

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

12шт.

Выбрано товаров: 38
