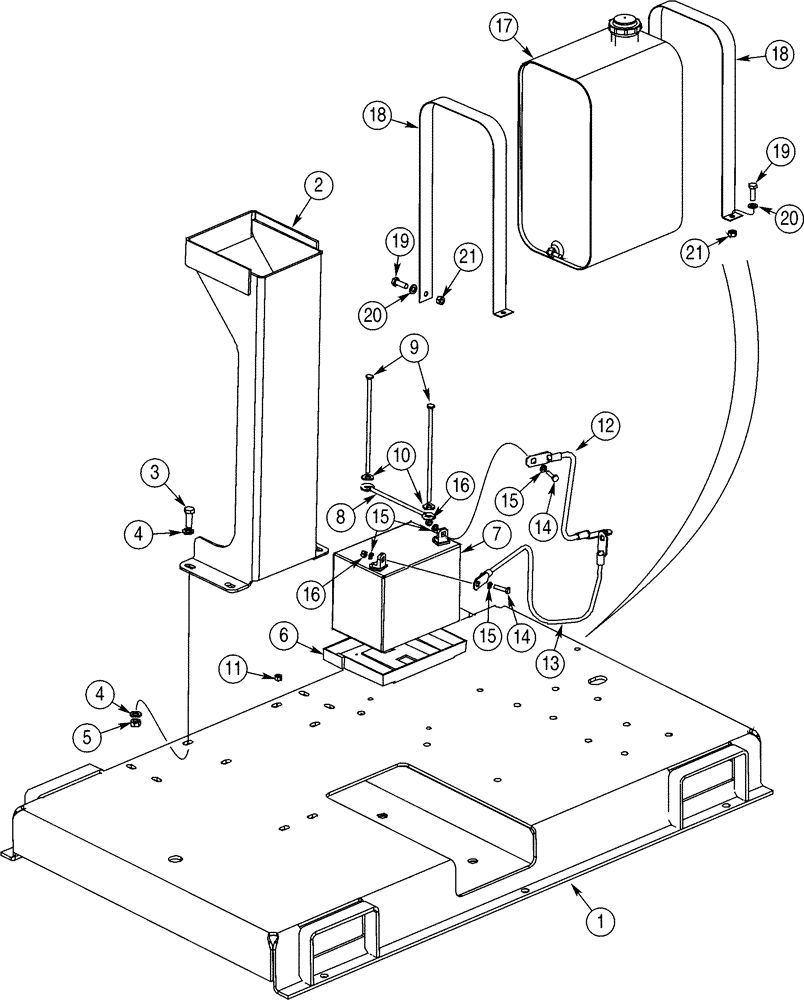

Запчасти Case BPGHP335 (09-43) - SKID, 24 HORSEPOWER ENGINE FRAME

1

387816A1

FRAME ASSY

Skid

1шт.

2

402477A2

SUPPORT

Funnel, Replaces 402477A1

1шт.

3

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

5

832-46410

NUT,M10 x 1.5, Cl 8

4шт.

6

98106948

TRAY

Battery

1шт.

7

D59470

SPARE PART , 12 V

1шт.

8

399385A1

BRACKET

Battery Hold-Down

1шт.

9

413-4120

BOLT,Hex, 1/4" - 20 x 7-1/2", Gr 5

1/4 x 7-1/2 in

2шт.

10

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8

2шт.

11

231-4144

NUT,1/4"-20, GB

2шт.

12

401158A1

CABLE ASSY.

Negative

1шт.

13

401159A1

CABLE ASSY.

Positive

1шт.

14

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

15

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2-4шт.

16

832-46406

NUT,M6 x 1, Cl 8

2шт.

16

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

17

391345A1

FUEL TANK

1шт.

18

391920A1

STRAP

2шт.

19

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

21

832-46410

NUT,M10 x 1.5, Cl 8

4шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

20

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.
