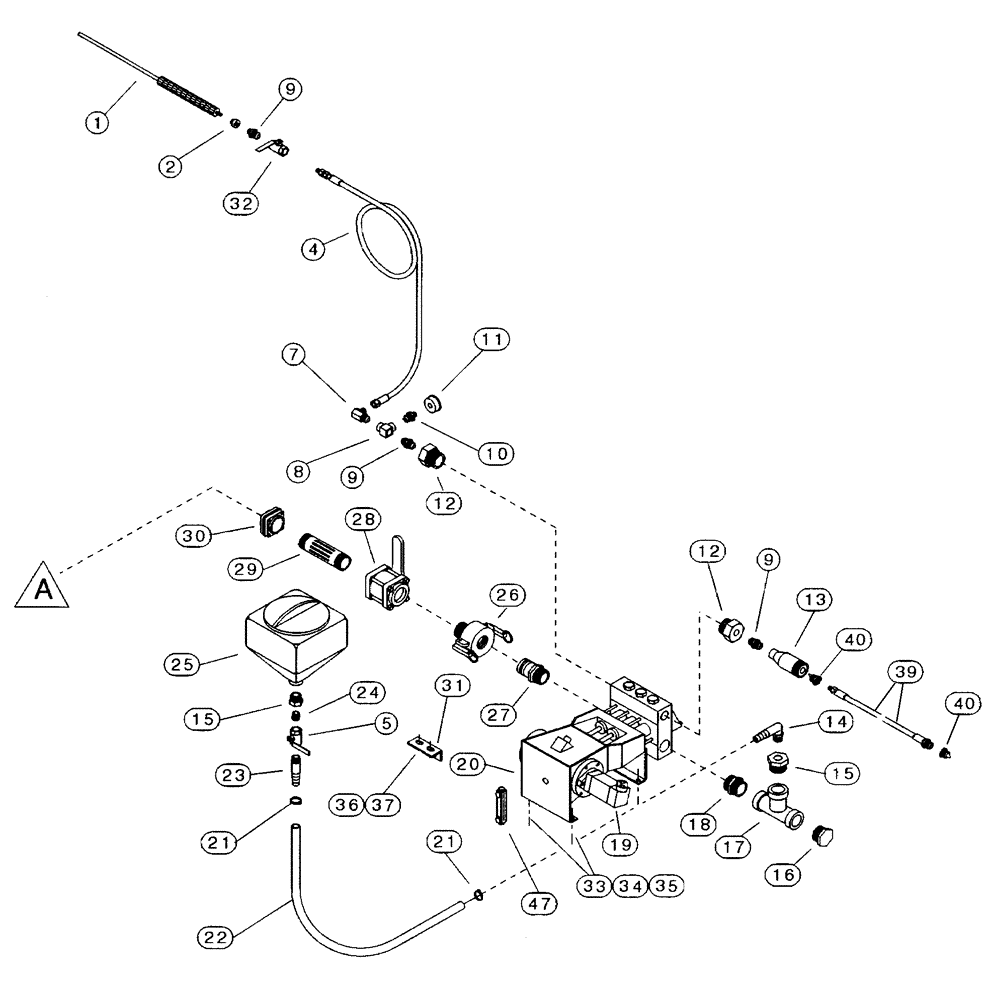

Запчасти Case BPGHP335 (09-13) - BPGHP335 PUMP, INJECTOR SYSTEM

1

02507311

WASHER

48 in

1шт.

2

221-1055

REDUCER,Hex, 1/2" x 1/4" NPT

1/2 fem x 1/4 male PT

1шт.

4

301958A1

HOSE ASSY.

1/2 x 2510 mm

1шт.

5

01434111

BALANCE VALVE

1шт.

7

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

3/4 fl x 1/2 PT

1шт.

8

217-1064

TEE,1/2" - 14 Female x 1/2" - 14 Male Run

1шт.

9

217-1072

HYD CONNECTOR,1/2" - 14 NPTF

1/2 PT x 1-7/8

3шт.

10

217-1109

REDUCER,1/2"-14 Male NPTF x 1/4"-18 Female NPTF

1шт.

11

15224511

GAUGE

5000 psi, Pressure, Drill Fluid

1шт.

12

310589A1

BUSHING

2 male x 1/2 fem PT

2шт.

13

00400511

COUPLING

To Machine

1шт.

14

98759019

FITTING

3/4 PT x 3/4 barb

1шт.

15

98020075

FITTING

2 PT x 3/4 in PT

2шт.

16

98020032

PLUG

2 in

1шт.

17

52110011

TEE

2 in fem PT

1шт.

18

98024112

NIPPLE, LUBE

NIPPLE , 2 in PT

1шт.

19

98001032

MOTOR, HYDRAULIC

Hydraulic, Pump Drive

1шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

20

98032687

PUMP

Injector Pump, Component Parts Not Serviced Separately

1шт.

21

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

22

307359A1

HOSE

3/4 x 715 mm

1шт.

23

98750018

FITTING

3/4 PT x 3/4 barb

1шт.

24

217-1073

HYD CONNECTOR,3/4" - 14 NPTF

3/4 PT

1шт.

25

98184416

FUNNEL

Fresh Water

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

492-11031

LOCK WASHER,5/16"

4шт.

26

98200218

COUPLING

2 in fem PT

1шт.

27

98200618

ADAPTER

2 in PT, male

1шт.

28

52120111

VALVE

2 in PT, Component Parts Not Serviced Separately

1шт.

29

98020018

NIPPLE, LUBE

NIPPLE , 2 PT x 6 in

1шт.

30

98060516

FITTING

2 in blkhd, For Attaching Parts, See Page(s) 9-43, Ref 28

1шт.

31

98040385

BRACKET

Motorized Needle Valve

1шт.

See Page(s) 9-75, Ref 45

1шт.

32

01400111

BALANCE VALVE

1/2 fem PT

1шт.

33

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

34

496-21053

WASHER,17/32" x 1 1/16" x .134"

8шт.

35

231-1448

NUT,1/2"-13, GB

4шт.

36

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

37

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

39

308295A1

HYDRAULIC HOSE,19.05 mm ID x 15315.00 mm, SAE 100R1

3/4 ID x 15315 mm, To Machine

1шт.

40

00400512

NIPPLE, LUBE

NIPPLE , 1/2

2шт.
