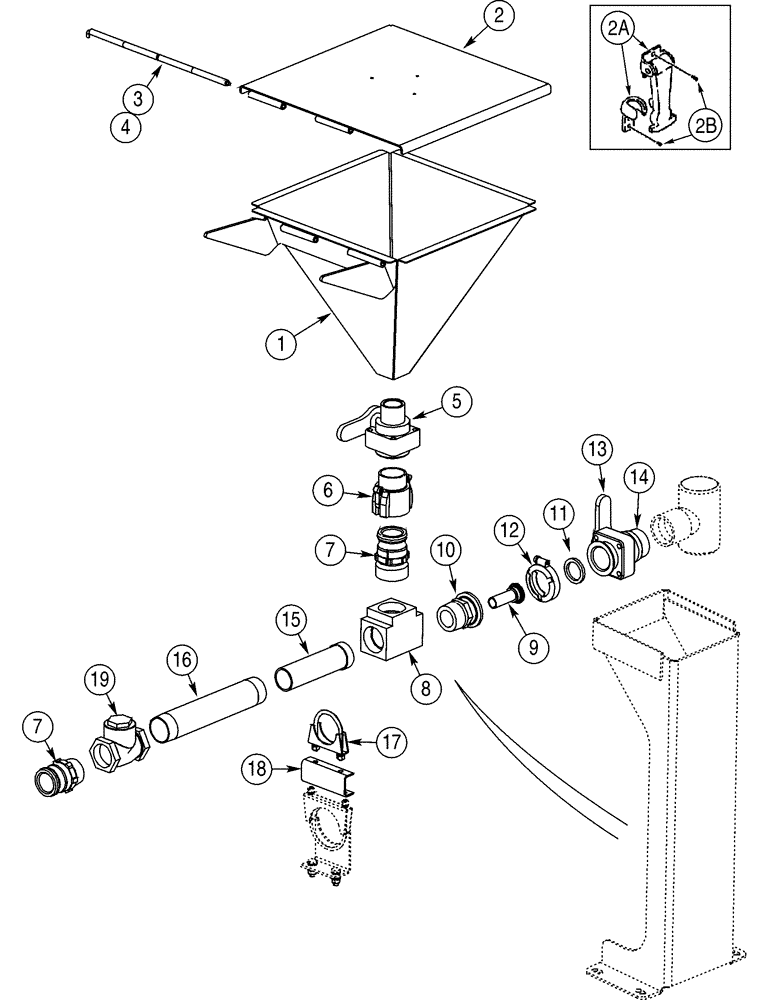

Запчасти Case BPGHP335 (09-39) - SKID, 13 HORSEPOWER ENGINE PUMP, MIXING SYSTEM

1

388657A2

FUNNEL

Replaces 388657A1

1шт.

2

399439A2

COVER

Funnel, Replaces 399439A1

1шт.

2a

235363A1

LATCH ASSY.

1шт.

2b

151-558

RIVET,Pop, 3/16" x .450"

3/16 x 1/2

2шт.

3

399445A1

ROD

420 mm

1шт.

4

432-416

COTTER PIN,1/16" x 1"

1/16" x 1"

1шт.

5

405633A1

VALVE

2 male PT x 2 in fem PT

1шт.

6

98200218

COUPLING

2 in fem PT

1шт.

7

98200618

ADAPTER

2 in PT, male

2шт.

8

221-1429

TEE,Pipe, 2" NPT

1шт.

9

404134A1

FITTING

1шт.

10

405634A1

ADAPTER

1шт.

11

400504A1

GASKET

1шт.

12

400502A1

CLAMP,80.96mm ID

3-3/16, Includes Hardware

1шт.

13

401874A1

VALVE,2" Flange x 2" Male NPT

Component Parts Not Serviced Separately

1шт.

14

221-343

X

1шт.

15

405635A1

INSERT

1шт.

16

221-325

PIPE,Nipple, 2" NPT x 12"

2 NPTF x 12 in

1шт.

17

A13240

CLAMP,2-5/8" ID

1шт.

18

398642A1

SUPPORT

1шт.

19

408161A1

VALVE

2 in

1шт.
