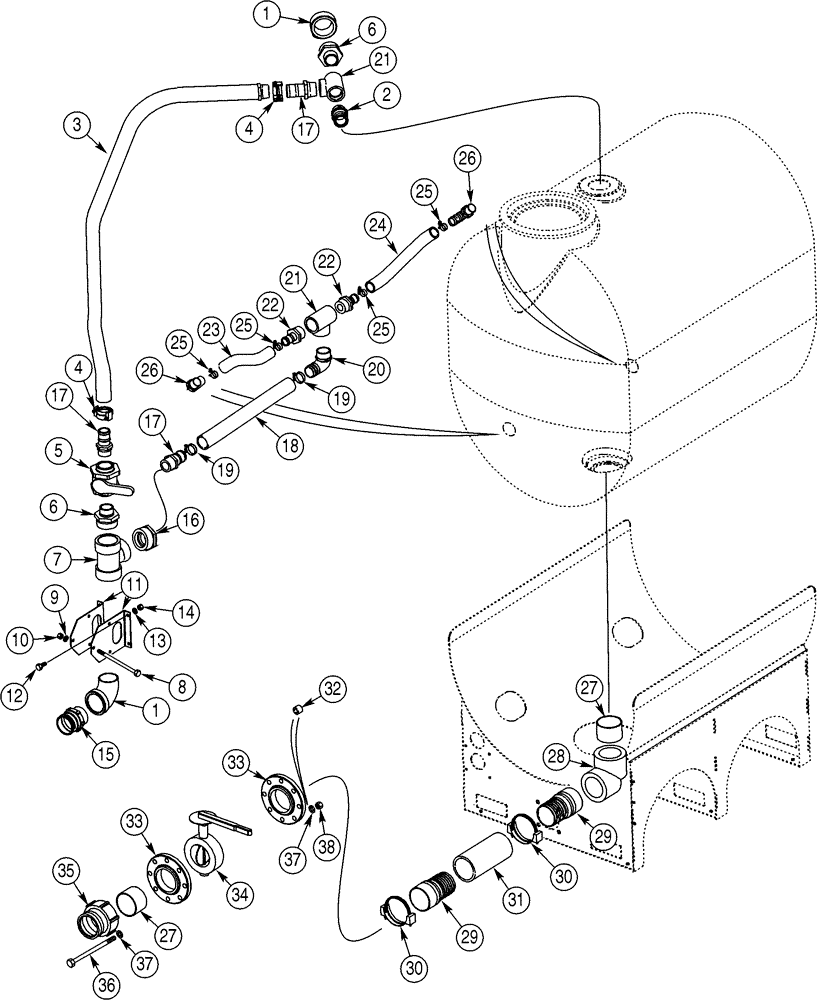

Запчасти Case BPGHP335 (09-36) - TANK, 750 GALLON FITTINGS

1

387980A1

ELBOW

3 in male PT x fem

2шт.

2

98200618

ADAPTER

2 in PT, male

1шт.

3

408338A1

HOSE

2 in ID x 1650 mm, Supply

1шт.

4

398647A1

CLAMP

2 in

2шт.

5

52120111

VALVE

2 in PT, Component Parts Not Serviced Separately

1шт.

6

387970A1

NIPPLE, LUBE

NIPPLE , 3 x 2 in PT

2шт.

7

387969A1

TEE

1шт.

8

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

3шт.

10

832-46410

NUT,M10 x 1.5, Cl 8

3шт.

11

407786A2

BRACKET

Tee Mounting, Replaces 407786A1

2шт.

12

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

14

832-46410

NUT,M10 x 1.5, Cl 8

4шт.

15

387977A1

FITTING

1шт.

16

387988A1

BUSHING

1шт.

17

98020212

HOSE

2 in PT x barb

3шт.

18

392574A2

HOSE,50.80 mm ID x 600.00 mm

1шт.

19

214-1536

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm, W/ Liner

1-13/16 - 2-3/4

2шт.

20

401875A1

FITTING,2" Male Thread x 2" 90 Degree Hose Barb

2 in male PT x barb

1шт.

21

52110011

TEE

2 in fem PT

2шт.

22

390979A1

FITTING

2 in male PT x 1-1/2 barb

2шт.

23

392576A1

HOSE,38.10 mm ID x 320.00 mm

1шт.

24

392575A1

HOSE,38.10 mm ID x 510.00 mm

1шт.

25

214-1524

HOSE CLAMP,#24, 1.06" - 2", Type F Worm, W/ Liner

4шт.

26

387989A1

ELBOW

1-1/2 male PT x barb

2шт.

27

221-1726

PIPE,Nipple, 4" NPT x 2 7/8"

4 NPTF x 2-7/8

2шт.

28

392128A1

ELBOW

4 in fem PT

1шт.

29

402347A1

NIPPLE, LUBE

NIPPLE , 4 in male PT x barb

2шт.

30

393158A1

CLAMP

4 in

2шт.

31

392573A1

HOSE,101.60 mm ID x 325.00 mm

Suction

1шт.

32

140220R1

SPACER,3/4" X-Strng Pipe x 2 1/8"

3/4 x 1-1/16 x 2-1/8 lg

4шт.

33

402201A1

FLANGE

4 in fem PT

2шт.

34

392263A1

VALVE

4 in; 200 psi

1шт.

35

398639A1

ADAPTER

4 in fem PT x male

1шт.

36

827-16200

BOLT,Hex, M16 x 2 x 200mm, Cl 10.9

4шт.

37

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

38

832-46416

NUT,M16 x 2, Cl 8

4шт.

9

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

13

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.
