Запчасти Case BPGHP335 (09-12) - BPGHP335 PUMP, MIXING SYSTEM

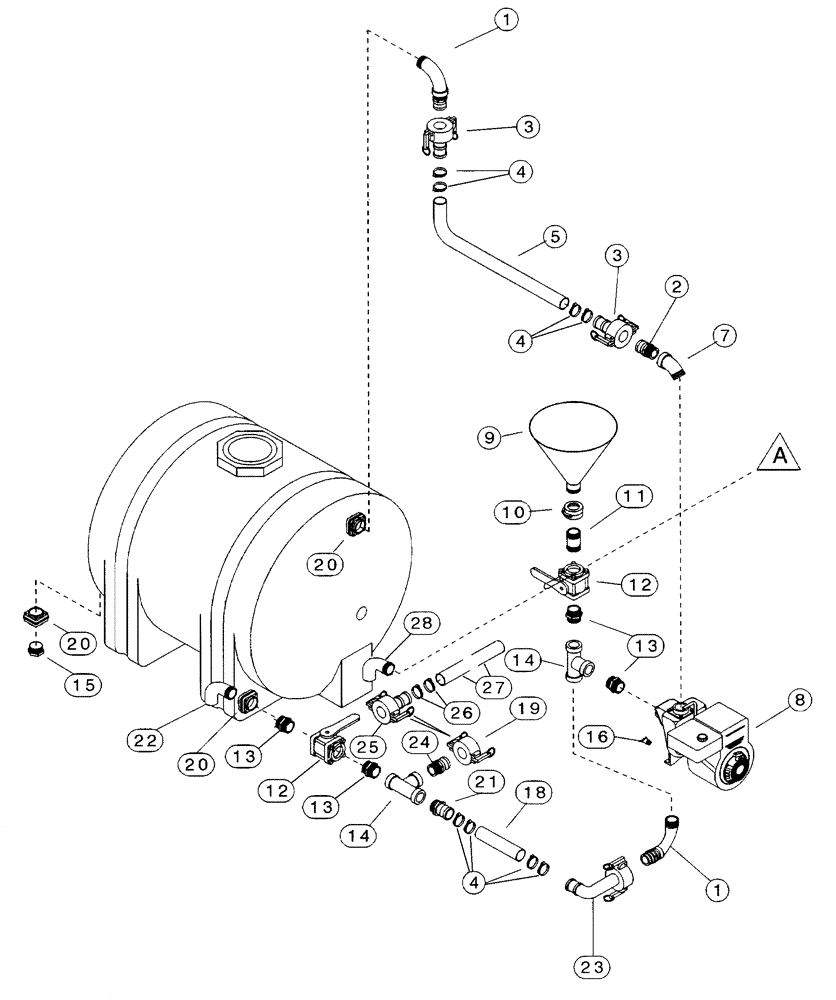

Схема запчастей Case BPGHP335 - (09-12) - BPGHP335 PUMP, MIXING SYSTEM
8
4
20
3
20
16
22
14
1
12
9
5
14
18
27
19
13
12
20
13
28
11
24
3
25
4
2
21
15
7
13
23
4
10
1
26

Артикул

Название

Примечание

Количество

1

98029012

ADAPTER,2" Male Thread

2шт.

2

98020212

HOSE

2 in PT x barb

1шт.

3

98200318

COUPLING

2 in fem barb

2шт.

4

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

8шт.

5

307357A1

HOSE

2 in ID x 635 mm

1шт.

7

98204518

ELBOW

2 in PT

1шт.

8

301884A1

PUMP

Gasoline, Mixing Pump, With 5 hp Briggs and Stratton Engine, See Page(s) 9-65

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

8шт.

231-1445

NUT,5/16"-18, GB

4шт.

9

98184415

FUNNEL

1шт.

10

89700032

CLAMP

2 in

1шт.

11

69332040

FITTING

2 x 2-1/2 in PT

1шт.

12

52120111

VALVE

2 in PT, Component Parts Not Serviced Separately

2шт.

13

98024112

NIPPLE, LUBE

NIPPLE , 2 in PT

4шт.

14

52110011

TEE

2 in fem PT

2шт.

15

98020032

PLUG

2 in

1шт.

16

99682912

DRAIN VALVE

1/4 PT

1шт.

18

307358A1

HOSE

2 in ID x 865 mm

1шт.

19

98220018

CAP

2 in, Auxiliary Fluid Connection and Drain, If Used

1шт.

20

98060516

FITTING

2 in blkhd

3шт.

21

98020212

HOSE

2 in PT x barb

1шт.

22

301966A1

TUBE,1" ID, 2.375" OD, 12, 4.5" Length

2 NPT, Siphon

1шт.

23

98200319

COUPLING

90 deg, 2 in fem barb

1шт.

24

98200618

ADAPTER

2 in PT, male

1шт.

25

98200318

COUPLING

2 in fem barb

1шт.

26

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

27

307365A1

HOSE

2 ID x 1220 mm (48 in)

1шт.

28

301966A1

TUBE,1" ID, 2.375" OD, 12, 4.5" Length

2 NPT, Siphon, For Attaching Parts, See Page(s) 9-47, Ref 30

1шт.

Выбрано товаров: 29
