Запчасти Case BPGHP335 (09-26) - BPDHP335 PANEL, CONTROL

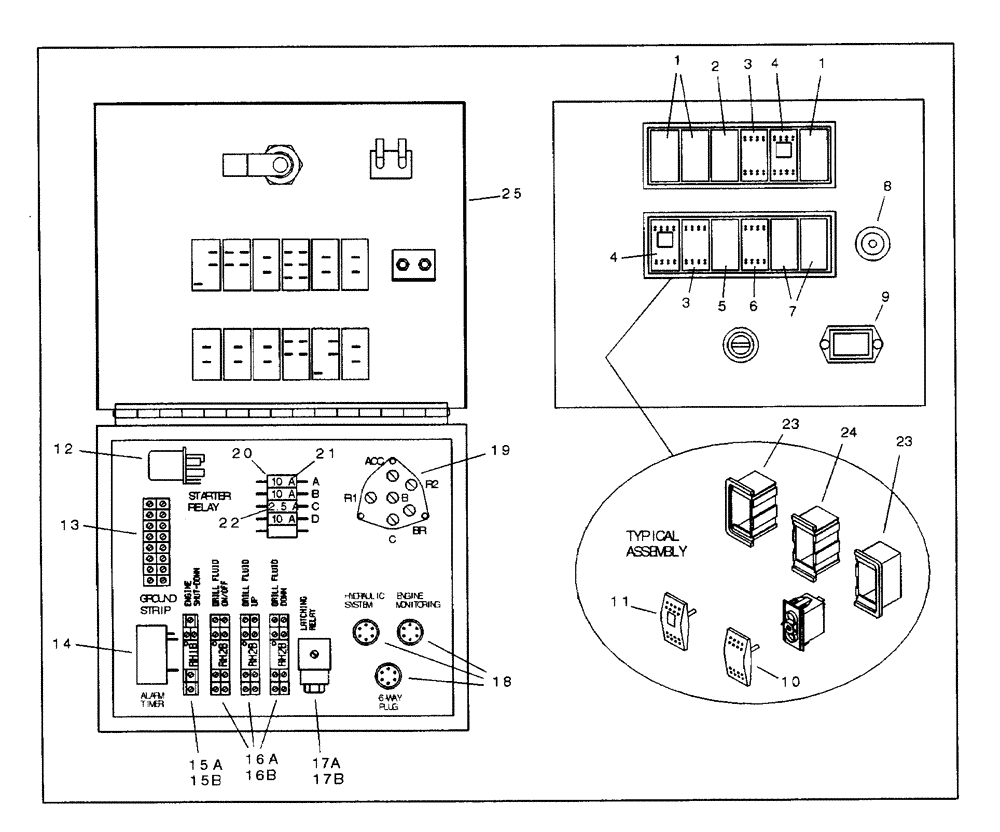

Схема запчастей Case BPGHP335 - (09-26) - BPDHP335 PANEL, CONTROL
2
1
14
6
23
16a
23
10
3
20
17b
12
3
18
25
11
19
8
4
15b
13
16b
7
15a
4
1
22
21
9
17a
5
24

Артикул

Название

Примечание

Количество

1

TX402114

LIGHT

Indicator, Red

3шт.

2

TX402214

LIGHT

Indicator, Amber

1шт.

3

TX444321

SWITCH

On/Off, DPST (Double Pole, Single Throw)

2шт.

4

TX444305

SWITCH

On/Off, With Lamp, SPST (Single Pole, Single Throw)

2шт.

5

TX452251

LIGHT

Indicator, Blue

1шт.

6

TX444324

SWITCH

On/Off/On, Momentary, DPDT (Double Pole, Double Throw)

1шт.

7

TX452241

LIGHT

Indicator, Green

2шт.

8

TX400131

DIPSTICK

Glow Plug

1шт.

9

98085094

HOURMETER

1шт.

10

TX444361

ACTUATOR

Switch

3шт.

11

TX444363

CLUSTER, INSTR.

CLUSTER, INSTRUMENT , Switch, Black, With Amber Lamp

2шт.

12

TX400231

RELAY

Starter

1шт.

13

12071513

BLOCK

Terminal, 8 Pole

1шт.

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

2шт.

225-14108

NUT,#8-32

2шт.

14

TX401213

RELAY

Timer Control Relay, 15 Second

1шт.

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

1шт.

231-1444

NUT,1/4"-20, GB

1шт.

12037211

POINT

Jumper

7шт.

15a

TX401005

SOCKET

Relay, Single Pole

1шт.

15b

TX400112

RELAY

Single Pole

1шт.

16a

TX402005

SOCKET/RECEPTACLE

Relay, Double Pole

3шт.

16b

TX400212

RELAY

Double Pole

3шт.

17a

98055039

RELAY

Latching

1шт.

17b

98050311

BASE

Latching Relay

1шт.

225-14108

NUT,#8-32

1шт.

18

TX402451

MULTIPOLE CONNECTOR,Male, 6 Pole

Male, Panel Mounting

3шт.

440-1068

SCREW,Cross Pan Hd, #6-32 x 1/2"

12шт.

225-14106

NUT,#6-32

12шт.

TX402458

CONNECTOR, ELEC

CONNECTOR , Female, Mounts To Male Connector

3шт.

19

TX408231

SWITCH

Key

1шт.

20

TX403504

BLOCK

Fuse, 5 Pole

1шт.

440-10616

SCREW,Cross Pan Hd, #6-32 x 1"

2шт.

225-14106

NUT,#6-32

2шт.

21

A149800

FUSE,10 Amp

10 amp, Red

2шт.

22

A187975

FUSE

1 amp, Blade Type

1шт.

23

TX444383

CONTROL PANEL

Switch and Lamp Mounting, End

4шт.

24

TX444384

CONTROL PANEL

Switch and Lamp Mounting, Center

8шт.

25

99012104

BOX

1шт.

440-1086

SCREW,Cross Pan Hd, #8-32 x 3/8"

4шт.

225-14108

NUT,#8-32

4шт.

26

A149803

FUSE,25 Amp

25 amp

1шт.

27

A149801

FUSE,Lt Blue, 15 Amp

15 amp

1шт.

TX440151

BRACKET

Timer Relay

1шт.

TX401000

RAIL

3-1/2, DIN Mounting

1шт.

282-1448

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

No. 8-18 x 1

1шт.

440-1068

SCREW,Cross Pan Hd, #6-32 x 1/2"

1шт.

225-14106

NUT,#6-32

1шт.

TX402206

MULTIPOLE CONNECTOR

6 Ground DIN With LED

1шт.

TX402212

MULTIPOLE CONNECTOR

12 Ground DIN With LED

1шт.

TX405066

GAUGE

Vacuum

1шт.

TX476062

SWITCH

15 psi, Oil Pressure

1шт.

Выбрано товаров: 52
