Запчасти Case BPGHP335 (09-25) - BPDHP335 WAND, PRESSURE

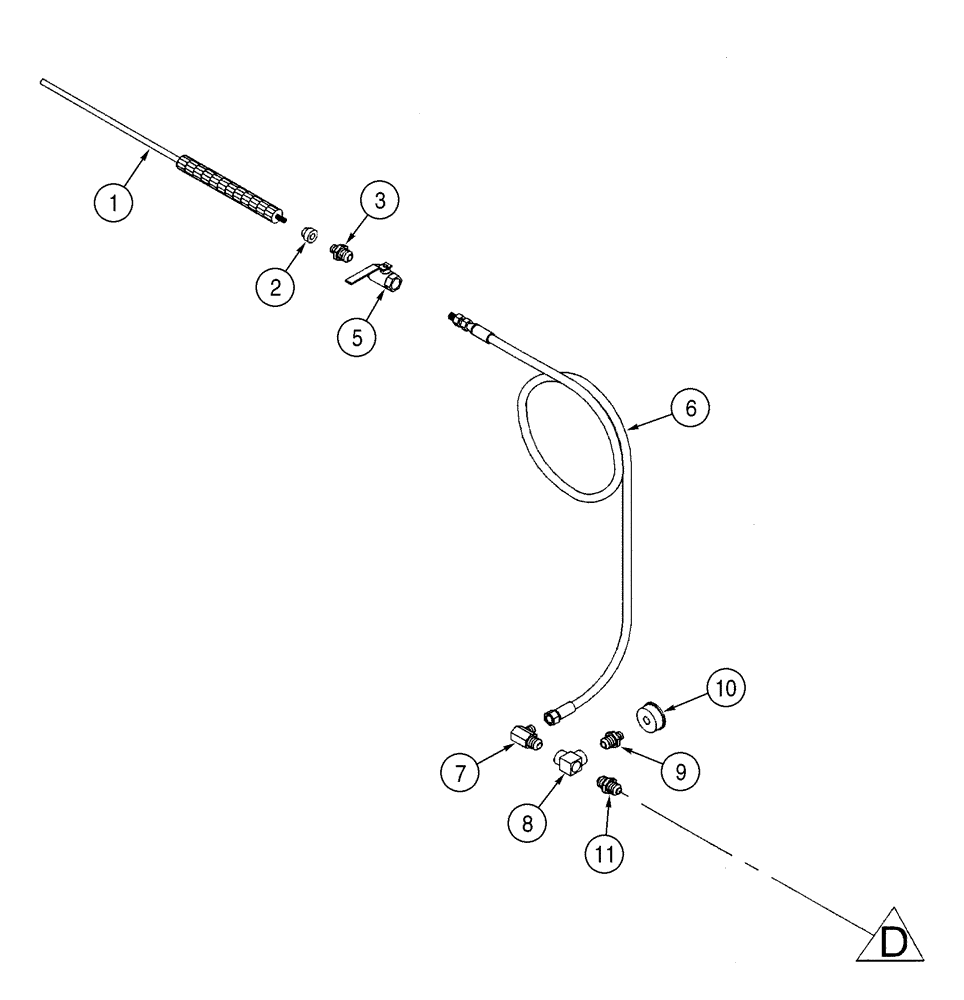

Схема запчастей Case BPGHP335 - (09-25) - BPDHP335 WAND, PRESSURE
8
10
1
11
2
5
7
6
9
3

Артикул

Название

Примечание

Количество

1

02507311

WASHER

48 in, Mixing Wand

1шт.

2

221-1055

REDUCER,Hex, 1/2" x 1/4" NPT

1/2 fem x 1/4 male PT

1шт.

3

217-1072

HYD CONNECTOR,1/2" - 14 NPTF

1/2 PT x 1-7/8

1шт.

5

01400111

BALANCE VALVE

1/2 fem PT

1шт.

6

301958A1

HOSE ASSY.

1/2 x 2510 mm

1шт.

7

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

3/4 fl x 1/2 PT

1шт.

8

217-1064

TEE,1/2" - 14 Female x 1/2" - 14 Male Run

1шт.

9

217-1109

REDUCER,1/2"-14 Male NPTF x 1/4"-18 Female NPTF

1шт.

10

15224511

GAUGE

5000 psi, Pressure, Drill Fluid

1шт.

11

A33567

ADAPTER

1/2 fem x 1 in male PT, For Attaching Parts, See Page(s) 9-109, Ref 22

1шт.

Выбрано товаров: 10
