Запчасти Case BPGHP335 (09-23) - BPDHP335 PUMP, MIXING SYSTEM

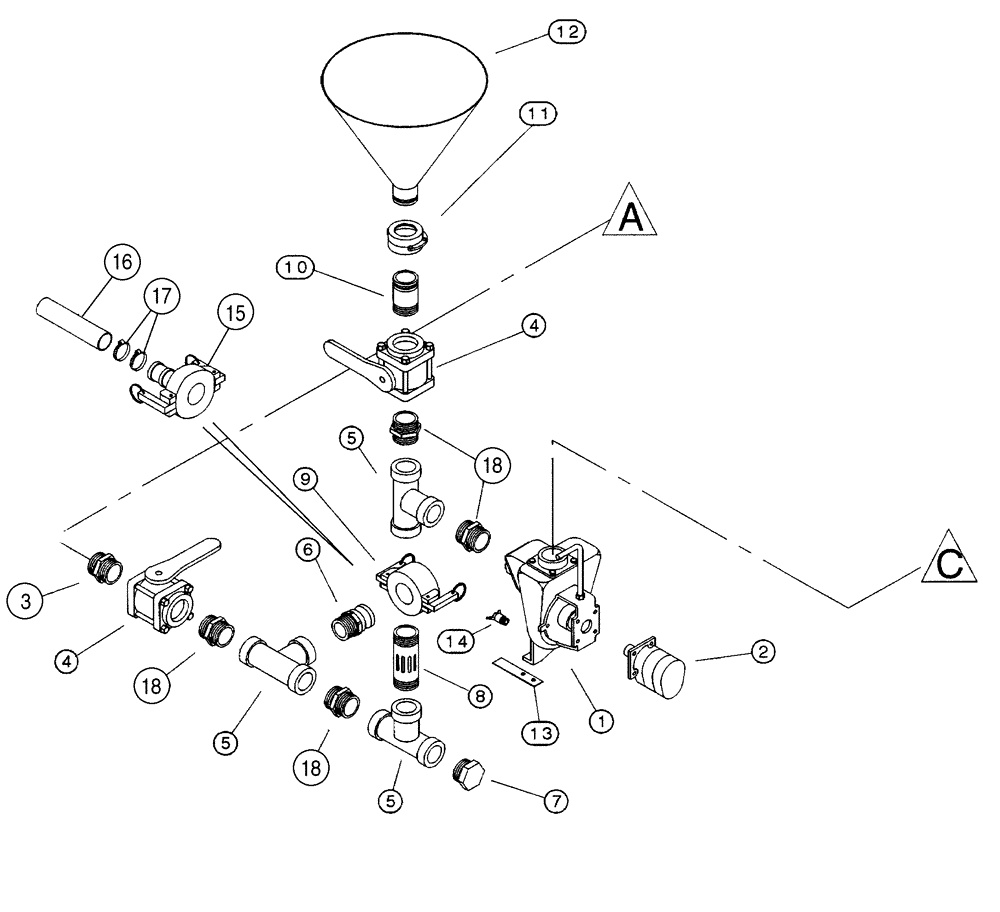

Схема запчастей Case BPGHP335 - (09-23) - BPDHP335 PUMP, MIXING SYSTEM
17
16
4
4
14
5
13
3
5
6
1
18
12
11
18
7
18
9
2
8
5
10
15

Артикул

Название

Примечание

Количество

98200311

PUMP

200 gpm, Mixing Pump, Bentonite, Includes Ref 1, 2, Component Parts Not Serviced Separately, For Attaching Parts, See Page(s) 9-101, Ref 3

1шт.

1

NSS

NOT SOLD SEPARAT

Pump

1шт.

2

NSS

NOT SOLD SEPARAT

Motor

1шт.

3

98024112

NIPPLE, LUBE

NIPPLE , 2 in PT, For Attaching Parts, See Page(s) 9-101, Ref 1

1шт.

4

52120111

VALVE

2 in PT, Component Parts Not Serviced Separately

2шт.

5

52110011

TEE

2 in fem PT

3шт.

6

98200618

ADAPTER

2 in PT, male, Auxiliary Fluid Connection and Drain, If Used

1шт.

7

98020032

PLUG

2 in

1шт.

8

98024012

TRANSMISSION SLEEVE

2 PT x 4 in

1шт.

9

98220018

CAP

2 in, Auxiliary Fluid Connection and Drain, If Used

1шт.

10

69332040

FITTING

2 x 2-1/2 in PT

1шт.

11

89700032

CLAMP

2 in

1шт.

12

98184415

FUNNEL

1шт.

13

98040400

SPACER

2шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

4шт.

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

231-1445

NUT,5/16"-18, GB

4шт.

14

99682912

DRAIN VALVE

1/4 PT

1шт.

15

98200318

COUPLING

2 in fem barb, If Used

1шт.

16

307365A1

HOSE

2 ID x 1220 mm (48 in), If Used

1шт.

17

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

18

98024112

NIPPLE, LUBE

NIPPLE , 2 in PT

4шт.

Выбрано товаров: 22
