Запчасти Case BPGHP335 (09-22) - BPDHP335 PUMP, MIXING SYSTEM

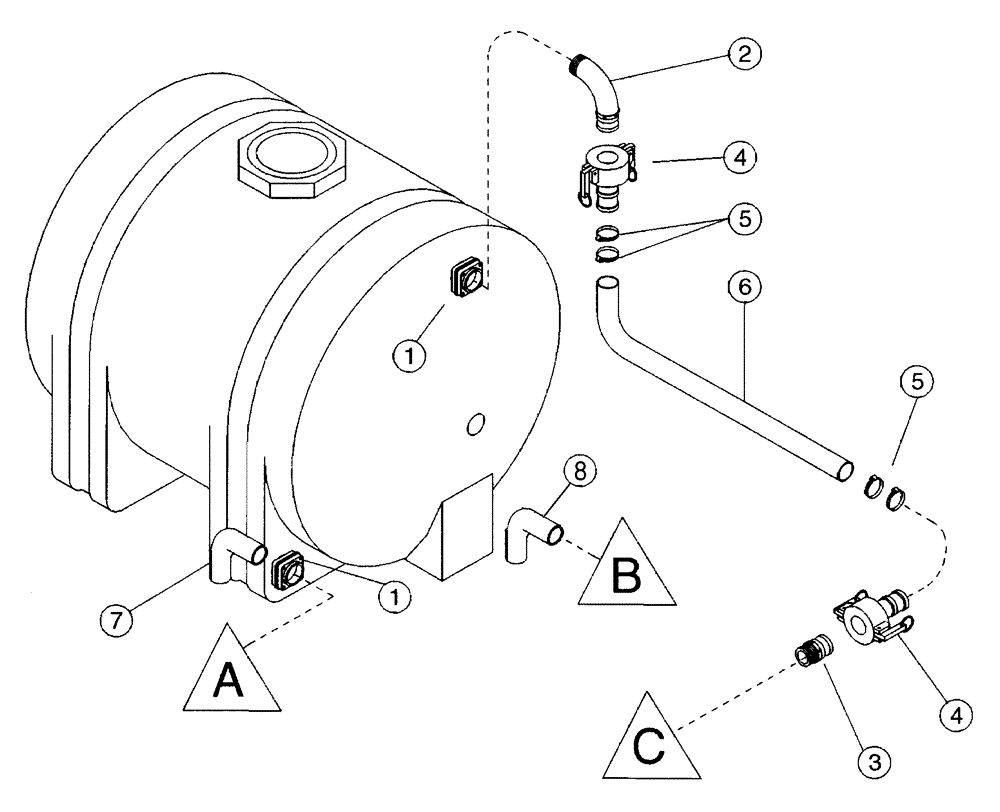

Схема запчастей Case BPGHP335 - (09-22) - BPDHP335 PUMP, MIXING SYSTEM
6
2
8
5
1
4
7
5
4
3
1

Артикул

Название

Примечание

Количество

1

98060516

FITTING

2 in blkhd

2шт.

2

98029012

ADAPTER,2" Male Thread

1шт.

3

98200618

ADAPTER

2 in PT, male, For Attaching Parts, See Page(s) 9-103, Ref 1

1шт.

4

98200318

COUPLING

2 in fem barb

2шт.

5

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

6

307358A1

HOSE

2 in ID x 865 mm

1шт.

7

301966A1

TUBE,1" ID, 2.375" OD, 12, 4.5" Length

2 NPT, Siphon, For Attaching Parts, See Page(s) 9-103, Ref 3

1шт.

8

301966A1

TUBE,1" ID, 2.375" OD, 12, 4.5" Length

2 NPT, Siphon, For Attaching Parts, See Page(s) 9-107, Ref 1

1шт.

Выбрано товаров: 8
