Запчасти Case BPGHP335 (09-21) - BPDHP335 ENGINE AND HYDRAULIC PUMPS

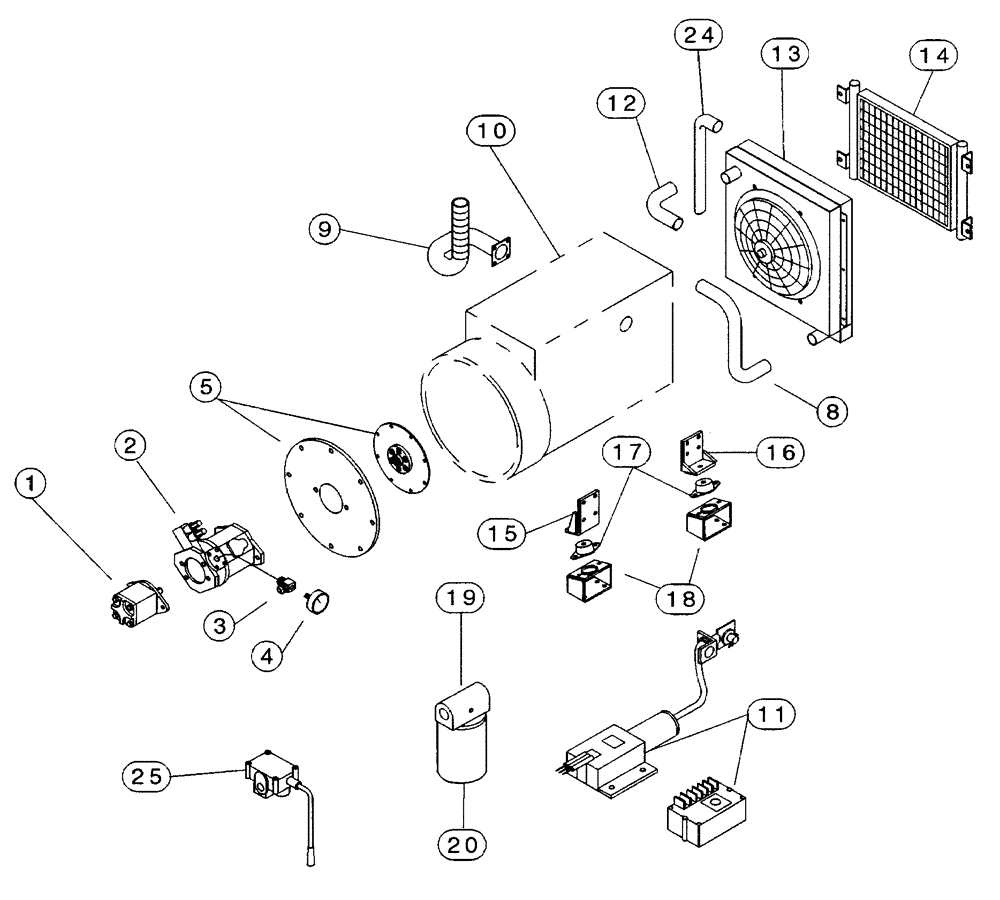

Схема запчастей Case BPGHP335 - (09-21) - BPDHP335 ENGINE AND HYDRAULIC PUMPS
25
3
12
14
11
5
2
13
9
1
19
8
17
4
16
15
24
18
20
10

Артикул

Название

Примечание

Количество

1

98031110

PUMP

Gear Pump, Component Parts Not Serviced Separately

1шт.

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

892-11010

LOCK WASHER,M10

2шт.

2

98010280

PUMP

Load Sense, Component Parts Not Serviced Separately

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

3

302870A1

ELBOW

Includes 237-6012

1шт.

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

00031511

GAUGE

5000 psi, Pressure

1шт.

5

TX212334

COUPLING

Flywheel To Pump

1шт.

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

8шт.

892-11008

LOCK WASHER,8mm ID

8шт.

8

NSS

NOT SOLD SEPARAT

Hose

1шт.

9

98001923

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST , Exhaust

1шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

892-11008

LOCK WASHER,8mm ID

4шт.

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

10

98000023

ENGINE ASSEMBLY

ENGINE ASSY , 23 hp, Diesel, Component Parts Not Serviced Separately

1шт.

TX400045

GUARD

1шт.

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

3шт.

614-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

Flywheel

6шт.

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

6шт.

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

Fan and Spacer

4шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

892-11008

LOCK WASHER,8mm ID

4шт.

11

TX061213

KIT

Throttle

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

496-21028

WASHER,.281" x 5/8" x .075", HDN

9/32 x 5/8 x 5/64

4шт.

231-1444

NUT,1/4"-20, GB

4шт.

440-10824

SCREW,Cross Pan Hd, #8-32 x 1 1/2"

No. 8 x 1-1/2

2шт.

495-21019

WASHER,#8

2шт.

225-14108

NUT,#8-32

2шт.

98040344

BRACKET

Throttle

1шт.

413-456

BOLT,Hex, 1/4" - 20 x 3-1/2", Gr 5

1/4 x 3-1/2

2шт.

496-21028

WASHER,.281" x 5/8" x .075", HDN

9/32 x 5/8 x 5/64

4шт.

231-1444

NUT,1/4"-20, GB

2шт.

12

NSS

NOT SOLD SEPARAT

Hose

1шт.

13

NSS

NOT SOLD SEPARAT

Radiator

1шт.

461-73112

HEX SOC SCREW,Btn Hd, 5/16"-18 x 3/4"

5/16 x 3/4

3шт.

231-1445

NUT,5/16"-18, GB

Radiator Mount

3шт.

495-81101

WASHER,5.56mm ID x 19.05mm OD x 1.7mm Thk

4шт.

231-14409

NUT,#10-24, GB

Radiator Door

4шт.

14

TX401012

COOLER

1шт.

15

TX440111

BRACKET

2шт.

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

8шт.

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

8шт.

892-11010

LOCK WASHER,M10

8шт.

16

TX440112

BRACKET

2шт.

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

6шт.

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

6шт.

892-11010

LOCK WASHER,M10

6шт.

17

TX425641

MOUNTING PARTS

4шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

496-21041

WASHER,13/32" x 13/16" x .089", HDN

16шт.

231-1446

NUT,3/8" - 16, Gr 5

8шт.

99153414

ANCHOR

Rubber

4шт.

18

TX440180

BRACKET

4шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

16шт.

496-21041

WASHER,13/32" x 13/16" x .089", HDN

32шт.

231-1446

NUT,3/8" - 16, Gr 5

16шт.

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

4шт.

496-21053

WASHER,17/32" x 1 1/16" x .134"

8шт.

231-1448

NUT,1/2"-13, GB

4шт.

19

98112513

HEAD

Spin-On

1шт.

20

98112510

ELEMENT

Filter

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

496-21028

WASHER,.281" x 5/8" x .075", HDN

9/32 x 5/8 x 5/64

2шт.

492-11025

LOCK WASHER,1/4"

2шт.

24

325425A1

HOSE

1/4 x 975 mm, Overflow

1шт.

25

300281A1

VALVE

Includes SVE21, SV125-3000, SVW1BB4, 671200011, 660401001

1шт.

SVE21

VALVE

Outlet

1шт.

SV125-3000

VALVE

Inlet

1шт.

SVW1BB4

VALVE

Work

1шт.

671200011

DETENT

1шт.

660401001

KIT

Tie Bolt

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

496-21041

WASHER,13/32" x 13/16" x .089", HDN

3шт.

Выбрано товаров: 79
