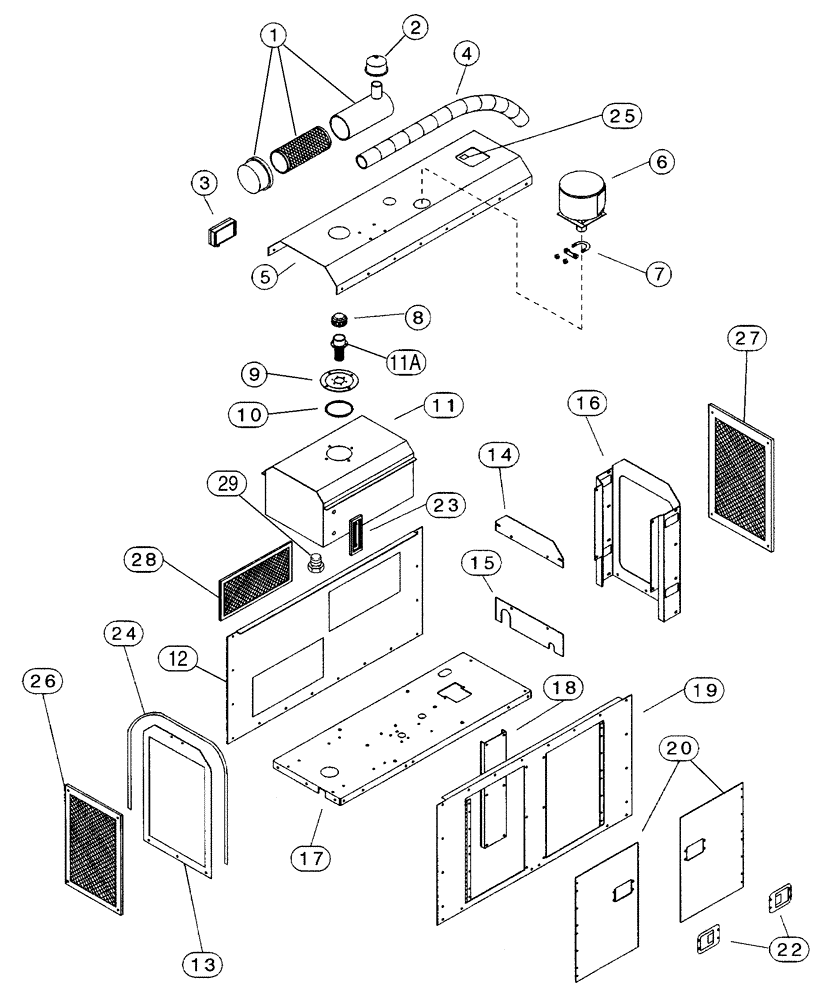

Запчасти Case BPGHP335 (09-20) - BPDHP335 ENGINE ENCLOSURE

1

H152553

AIR CLEANER

Air, Includes D48198, D78354, D48199, D48200, D48201

1шт.

D48198

AIR CLEANER

With End Cover

1шт.

D78354

WING NUT

7/16

2шт.

D48199

CLAMP

Includes Hardware

1шт.

D48200

BAFFLE

1шт.

D48201

CUP

With Baffle

1шт.

2

NSS

NOT SOLD SEPARAT

Cap

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

231-1445

NUT,5/16"-18, GB

4шт.

3

TX906453

LAMP, WORK

LIGHT, WORK , Work Lamp

1шт.

4

TX482101

INTAKE AIR HOSE,44.50 mm ID, 50.80 mm ID x 970.00 mm, SAE J200

Intake

1шт.

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

5

98040781

DOOR

1шт.

6

TX440306

MUFFLER

1шт.

461-73120

HEX SOC SCREW,Btn Hd, 5/16"-18 x 1 1/4"

5/16 x 1-1/4

4шт.

231-1445

NUT,5/16"-18, GB

4шт.

99153414

ANCHOR

Rubber

4шт.

7

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

1шт.

8

TX405715

FILLER CAP

1шт.

9

TX440178

LARGE PLATE

PLATE, LARGE

1шт.

10

TX405225

O-RING

Access Plate

1шт.

11

98040329

RESERVOIR

15 gal, Hydraulic Oil, Includes 11A

1шт.

11a

98010301

FILTER

3-3/8 in, Filter Suction Screen

1шт.

276-24512

SELF-TAP SCREW,Hex Hd, #10 x 3/4"

No. 10 x 3/4

6шт.

12

98040783

DOOR

1шт.

13

98040314

PANEL

1шт.

14

319264A1

SHROUD

1шт.

15

319265A1

SHROUD

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

8шт.

231-1445

NUT,5/16"-18, GB

4шт.

16

TX440300

MOUNTING PARTS

Radiator

1шт.

17

98040789

PLATE

1шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

1шт.

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1/2 x 3-1/4

1шт.

496-21053

WASHER,17/32" x 1 1/16" x .134"

11шт.

231-1448

NUT,1/2"-13, GB

6шт.

18

98040345

CHANNEL

Door

1шт.

19

98000313

PANEL

Includes 413-412, 231-1444, 151-513, 40156, 345230A1, 40313, Ref 20

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

10шт.

231-1444

NUT,1/4"-20, GB

10шт.

151-513

RIVET,Pop, 3/16" x .700"

3/16 x 11/16

16шт.

NLS

NO LONGER SERVICED

2шт.

345230A1

PANEL

Outer

1шт.

20

51200229

DOOR

2шт.

22

TX401115

LATCH

2шт.

151-522

RIVET,Pop, 3/16" x .575"

3/16 x 7/32

8шт.

23

00370015

GAUGE

Oil, With Thermometer

1шт.

24

TX400334

ORNAMENTAL STRIP

1шт.

25

TX423235

LATCH

1шт.

461-73112

HEX SOC SCREW,Btn Hd, 5/16"-18 x 3/4"

5/16 x 3/4

44шт.

231-1445

NUT,5/16"-18, GB

44шт.

234-10431

CROWN NUT,Crown, 5/16"-18

8шт.

26

98040332

PANEL

1шт.

27

303581A1

GRILLE

Radiator

1шт.

28

TX440167

FRAME

2шт.

29

TX407518

PLUG

3/4 in, Magnetic

1шт.

427-3058

CLEVIS PIN,3/16" x .580"

3шт.

S120261

PIN

3шт.
