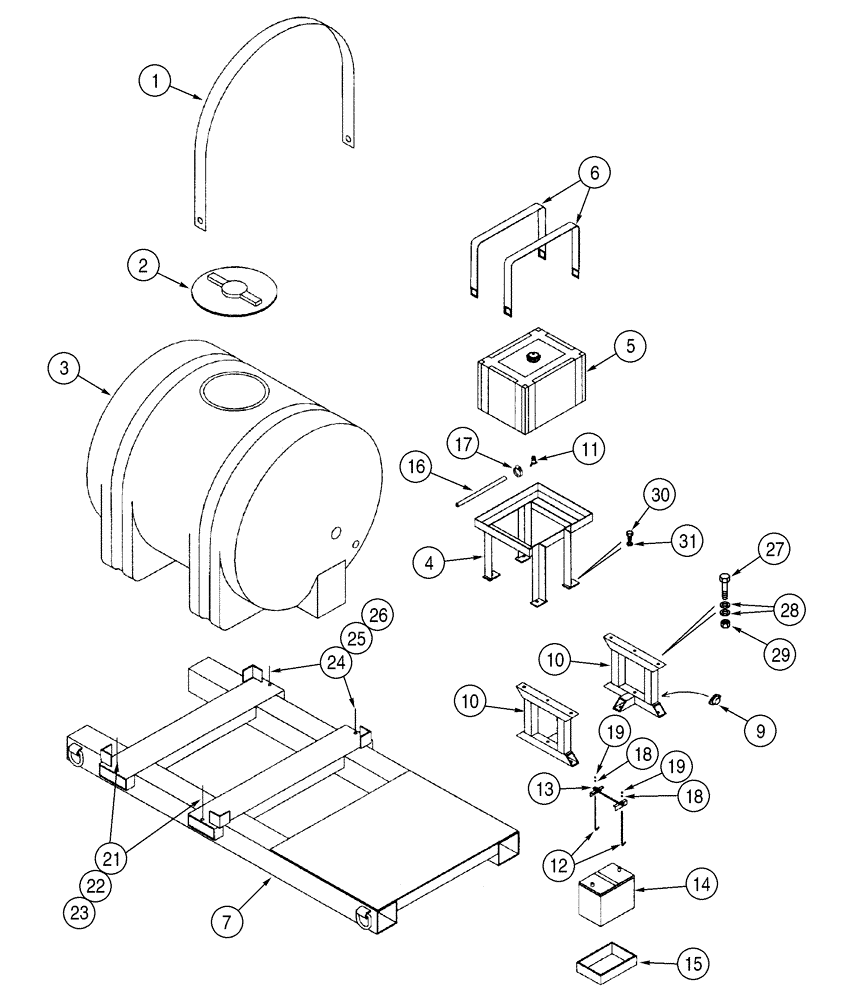

Запчасти Case BPGHP335 (09-11) - BPGHP335 FRAME AND BENTONITE TANK

1

99040301

STRAP

1шт.

2

NSS

NOT SOLD SEPARAT

Cap

1шт.

3

99040300

TANK

335 gal, Bentonite Tank

1шт.

4

308314A1

STAND

1шт.

5

98031010

RESERVOIR

12 gal, Fuel

1шт.

6

98033513

CABLE TIE

CABLE STRAP

2шт.

7

98600335

SUPPORT

Skid

1шт.

9

02360213

CONTROL

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

496-21028

WASHER,.281" x 5/8" x .075", HDN

9/32 x 5/8 x 5/64

4шт.

231-1444

NUT,1/4"-20, GB

2шт.

10

317927A1

STAND

Hydraulic Reservoir

2шт.

11

99682912

DRAIN VALVE

1/4 PT

1шт.

12

413-4120

BOLT,Hex, 1/4" - 20 x 7-1/2", Gr 5

1/4 x 7-1/2 in

2шт.

13

98040386

HOLDER

1шт.

14

D59470

SPARE PART , 12 V

1шт.

433-412

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5

2шт.

496-21028

WASHER,.281" x 5/8" x .075", HDN

9/32 x 5/8 x 5/64

2шт.

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

425-104

NUT,1/4"-20, Cl 5

2шт.

15

98106948

TRAY

1шт.

16

325721A1

HOSE

1/4 in x 915 mm

1шт.

17

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

No. 4

3шт.

18

496-21028

WASHER,.281" x 5/8" x .075", HDN

9/32 x 5/8 x 5/64

2шт.

19

231-1444

NUT,1/4"-20, GB

2шт.

21

325058A1

BOLT

3/8 x 5, J-Type

2шт.

22

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

23

231-1446

NUT,3/8" - 16, Gr 5

2шт.

24

461-73120

HEX SOC SCREW,Btn Hd, 5/16"-18 x 1 1/4"

5/16 x 1-1/4

2шт.

25

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

26

231-1445

NUT,5/16"-18, GB

2шт.

27

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

10шт.

28

496-21053

WASHER,17/32" x 1 1/16" x .134"

20шт.

29

231-1448

NUT,1/2"-13, GB

10шт.

30

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

31

492-11031

LOCK WASHER,5/16"

4шт.
