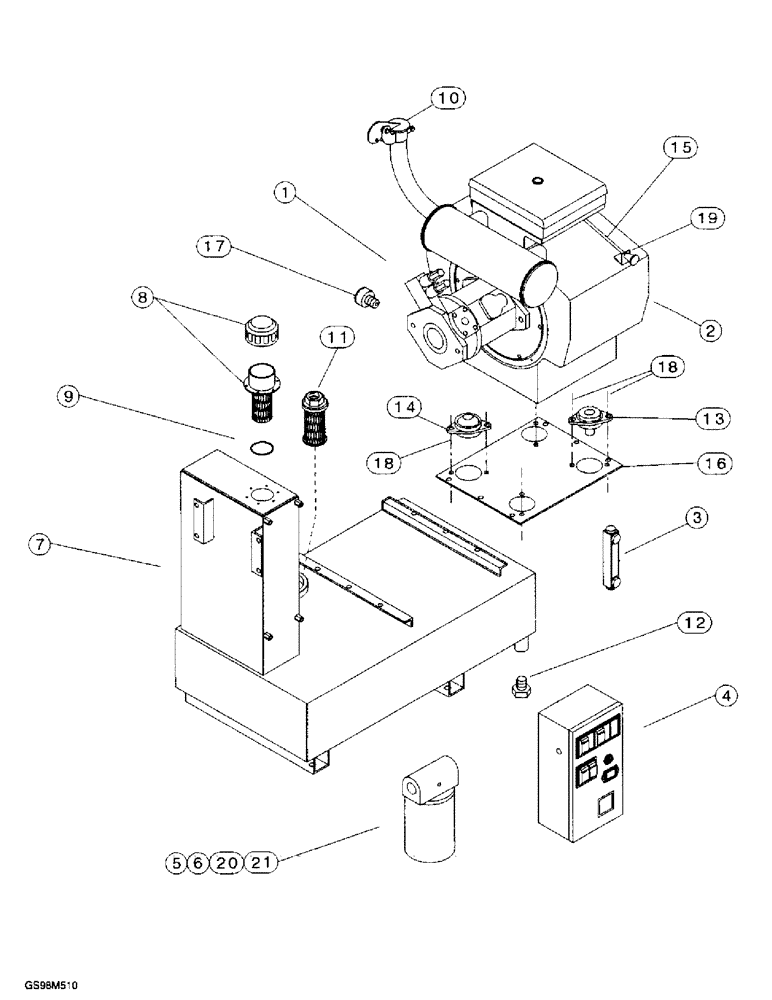

Запчасти Case BPGHP335 (9-08) - 20 HP ENGINE AND HYDRAULIC RESERVOIR

1

98010180

PUMP

- hydraulic

1шт.

2

98000020

ENGINE ASSEMBLY

ENGINE - gasoline, 20 HP Onan

1шт.

3

00370015

GAUGE

- sight, oil with thermometer

1шт.

4

325269A1

CONTROL ASSEMBLY - electrical (See Figure 9-10)

1шт.

5

98112513

HEAD

ASSEMBLY - filter, Includes: Ref. 6

1шт.

6

98112510

ELEMENT

- filter

1шт.

7

98040320

RESERVOIR

ASSEMBLY - hydraulic oil, Includes: Ref. 8 and 9

1шт.

8

TX405715

FILLER CAP

CAP - filler

1шт.

9

NSS

NOT SOLD SEPARAT

GASKET - filler cap

1шт.

11

98010301

FILTER

- suction screen, 3-3/8 inch

1шт.

12

TX407518

PLUG

- magnetic, 3/4 inch

1шт.

13

98062265

ANCHOR

MOUNT - engine, front

2шт.

14

98062280

ANCHOR

MOUNT - engine, rear

2шт.

15

98000021

CABLE

- choke

1шт.

16

98040327

LARGE PLATE

PLATE - engine mounting

1шт.

17

00031511

GAUGE

- pressure, 5000 PSI

1шт.

18

276-14612

SELF-TAP SCREW,Hex Hd, #12 x 3/4"

SCREW - hex head, 3/4 inch tapping

8шт.

19

284237A1

BRACKET

- choke

1шт.

20

284851A1

BRACKET

- filter (not shown)

1шт.

21

275-14716

SELF-TAP SCREW,Hex Hd, 1/4" x 1"

SCREW - hex head, 1/4 inch tapping (not shown)

2шт.
