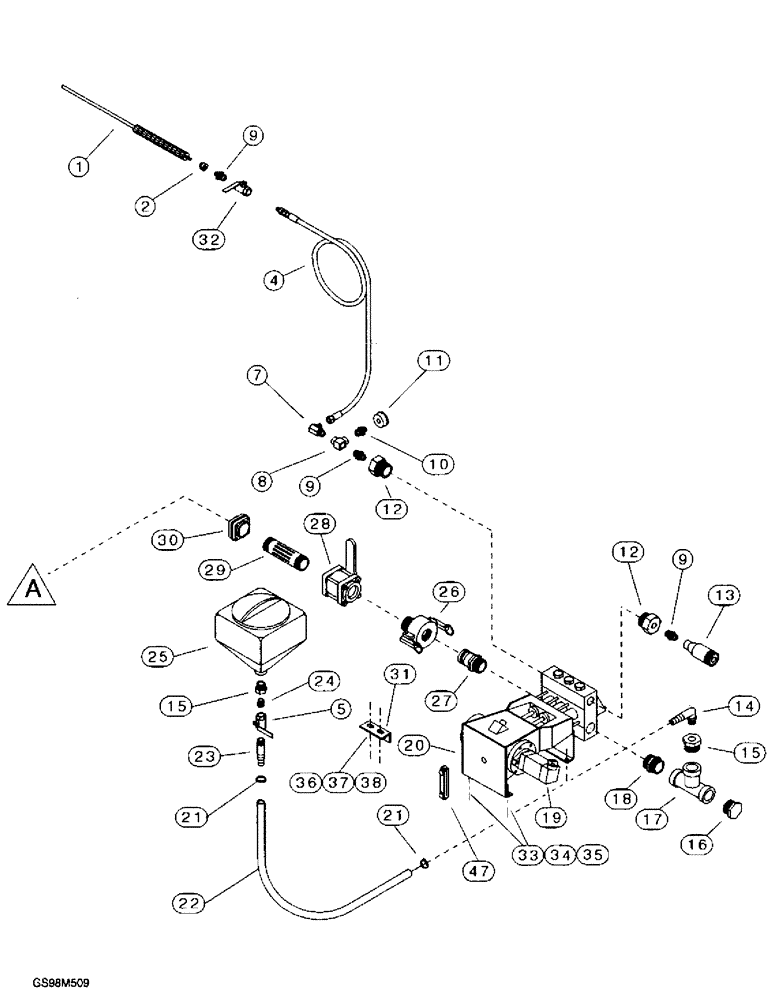

Запчасти Case BPGHP335 (9-06) - INJECTOR PUMP SYSTEM

1

02507311

WASHER

WAND - pressure washing, 48 inch

1шт.

2

221-1055

REDUCER,Hex, 1/2" x 1/4" NPT

BUSHING - reducer, 1/2 female x 1/4 inch male PT

1шт.

4

301958A1

HOSE ASSY.

HOSE - wand, hydraulic

1шт.

5

01434111

BALANCE VALVE

VALVE - ball, 3/4 inch PT, 2-way

1шт.

7

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 3/4-16 flare x 1/2 inch PT

1шт.

8

217-1064

TEE,1/2" - 14 Female x 1/2" - 14 Male Run

- street, 1/2 inch female PT x 1/2 inch male PT x 1/2 inch female PT

1шт.

9

217-1072

HYD CONNECTOR,1/2" - 14 NPTF

NIPPLE - hex, 1/2 PT x 1-7/8 inch

3шт.

10

217-1109

REDUCER,1/2"-14 Male NPTF x 1/4"-18 Female NPTF

Bushing 1/2"-14 Male NPTF x 1/4"-18 Female NPTF

1шт.

11

15224511

GAUGE

- pressure, 5000 PSI

1шт.

12

310589A1

BUSHING

- reducer, 2 male x 1/2 inch female PT

2шт.

13

00400511

COUPLING

COUPLER - self sealing, female half (Stainless steel)

1шт.

14

98759019

FITTING

ELBOW - 90 degree, 3/4 inch male PT x 3/4 inch hose barb

1шт.

15

98020075

FITTING

BUSHING - reducer, 2 PT x 3/4 inch PT

2шт.

16

98020032

PLUG

- square head, 2 inch

1шт.

17

52110011

TEE

- pipe, 2 inch PT, female

1шт.

18

98024112

NIPPLE, LUBE

NIPPLE - short, 2 inch PT

1шт.

19

98001032

MOTOR, HYDRAULIC

MOTOR - hydraulic, pump drive

1шт.

20

98032687

PUMP

- bentonite, repair parts

1шт.

98032687F CYLINDER PLUNGER

1шт.

98032687E ORING FOR CYL.CAP PLUG AND STUFFING BOX (6)

1шт.

98032687D ORING FOR SUCTION CHECK VALVE PLUG (3)

1шт.

98032687C ORING FOR DISCHARGE CHECK VALVE PLUG (3)

1шт.

98032687B SUCTION VALVE

1шт.

98032687A DISCHARGE VALVE

1шт.

21

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 3/4 inch

2шт.

22

308295A1

HYDRAULIC HOSE,19.05 mm ID x 15315.00 mm, SAE 100R1

HOSE - 3/4 x 84 inch, hydraulic

1шт.

23

98750018

FITTING

- straight, 3/4 PT x 3/4 inch hose barb

1шт.

24

217-1073

HYD CONNECTOR,3/4" - 14 NPTF

NIPPLE - hex, 3/4 PT x 1-15/16 inch

1шт.

25

98184416

FUNNEL

TANK - fresh water

1шт.

26

98200218

COUPLING

COUPLER - female, 2 inch PT

1шт.

27

98200618

ADAPTER

- threaded, male, 2 inch PT

1шт.

28

52120111

VALVE

- ball, 2 inch PT with full port

1шт.

29

98020018

NIPPLE, LUBE

NIPPLE - pipe, 2 PT x 6 inch

1шт.

30

98060516

FITTING

- bulkhead, 2 inch

1шт.

31

98040385

BRACKET

- mounting, motorized needle valve

1шт.

32

01400111

BALANCE VALVE

VALVE - ball, 1/2 inch PT, shut-off

1шт.

33

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

34

496-21053

WASHER,17/32" x 1 1/16" x .134"

- 1/2 inch

8шт.

35

231-1448

NUT,1/2"-13, GB

- 1/2 inch

4шт.

36

433-540

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/2", Gr 5

BOLT - round head, 5/16 x 2-1/2 inch

2шт.

37

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

38

231-1445

NUT,5/16"-18, GB

NUT - 5/16 inch

2шт.
