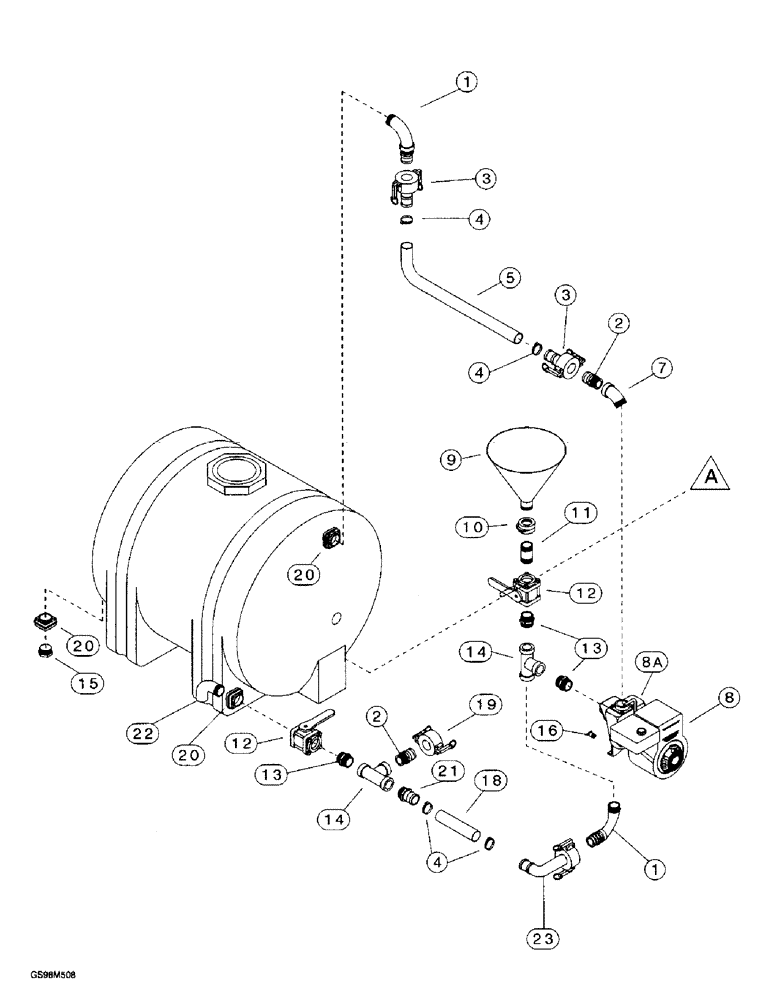

Запчасти Case BPGHP335 (9-04) - MIXING PUMP SYSTEM

1

98029012

ADAPTER,2" Male Thread

ELBOW - 90 degree, 2 inch PT x male coupler

2шт.

2

98200618

ADAPTER

- threaded, male, 2 inch PT

1шт.

3

98200318

COUPLING

COUPLER - hose barb, female, 2 inch

2шт.

4

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, #28, 1.31/2.25 Type F Worm

4шт.

5

307357A1

HOSE

- 2 x 36 inch

1шт.

7

98204518

ELBOW

- street, 45 degree, 2 inch PT

1шт.

8

301884A1

PUMP

ENGINE - gasoline, 5 HP Briggs and Stratton with pump, Includes: Ref. 8A

1шт.

8a

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - mixing (See Figure 9-12)

1шт.

9

98184415

FUNNEL

- bentonite, stainless steel

1шт.

10

89700032

CLAMP

- Gruvlock, 2 inch

1шт.

11

69332040

FITTING

NIPPLE - Gruvlock, 2-1/2 PT x 2 inch

1шт.

12

52120111

VALVE

- ball, 2 inch PT with full port

2шт.

13

98024112

NIPPLE, LUBE

NIPPLE - short, 2 inch PT

3шт.

14

52110011

TEE

- pipe, 2 inch PT, female

2шт.

15

98020032

PLUG

- square head, 2 inch

1шт.

16

99682912

DRAIN VALVE

VALVE - drain, 1/4 inch PT

1шт.

18

307358A1

HOSE

- 2 x 36 inch

1шт.

19

98220018

CAP

- 2 inch

1шт.

20

98060516

FITTING

- bulkhead, 2 inch

3шт.

21

98020212

HOSE

COUPLER - straight, 2 inch PT x hose barb, (Ref. BPG)

2шт.

22

301966A1

TUBE,1" ID, 2.375" OD, 12, 4.5" Length

- siphon, 2 inch

1шт.

23

98200319

COUPLING

COUPLER - 90 degree hose barb, female, 2 inch

1шт.
