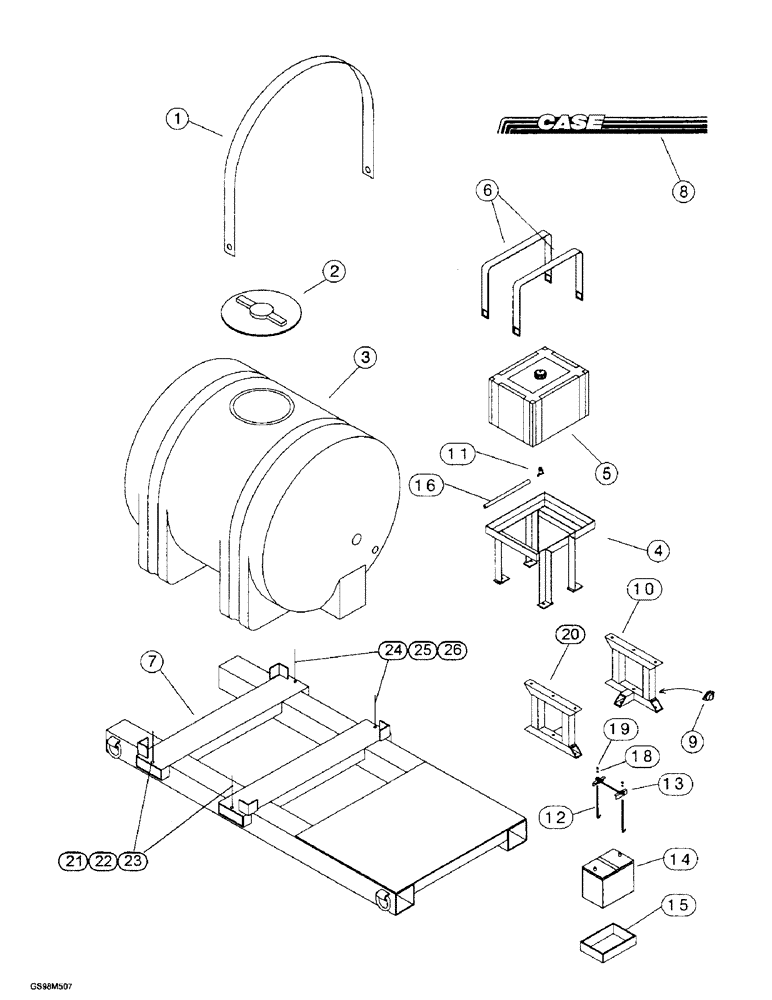

Запчасти Case BPGHP335 (9-02) - FRAME AND BENTONITE TANK

1

99040301

STRAP

- tank hold down, bentonite tank

1шт.

2

15060011

COVER

CAP - bentonite tank

1шт.

3

99040300

TANK

- bentonite, 335 gallon

1шт.

4

308314A1

STAND

- fuel tank

1шт.

5

98031010

RESERVOIR

TANK - fuel, 12 gallon

1шт.

6

98033513

CABLE TIE

STRAP - tank hold down, fuel tank

2шт.

7

98600335

SUPPORT

FRAME - skid, bentonite

1шт.

8

179217A2

DECAL

- Case, with stripes, left-hand (Shown)

1шт.

8

179218A2

DECAL

- Case, with stripes, right-hand

1шт.

9

02360213

CONTROL

PLUG - electrical, female, 6 pole

1шт.

10

317927A1

STAND

- hydraulic reservoir

1шт.

11

99682912

DRAIN VALVE

VALVE - drain, 1/4 inch PT

1шт.

12

413-4120

BOLT,Hex, 1/4" - 20 x 7-1/2", Gr 5

- 1/4 x 7-1/2 inch

2шт.

13

98040386

HOLDER

BRACKET - battery hold down

1шт.

14

D59470

BATTERY - electrical supply, 12 volt

1шт.

15

98106948

TRAY

- battery

1шт.

16

325721A1

HOSE

- fuel, 1/4 inch, IDX 915 mm

1шт.

18

496-21028

WASHER,.281" x 5/8" x .075", HDN

- 1/4 inch

2шт.

19

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

20

98040316

STAND

- hydraulic reservior

1шт.

21

325058A1

BOLT

- J, 3/8-16 x 5 inch

2шт.

22

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

23

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

2шт.

24

461-73116

HEX SOC SCREW,Btn Hd, 5/16"-18 x 1"

BOLT - BHCS, 5/16-18 x 1 inch

2шт.

25

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

26

231-1445

NUT,5/16"-18, GB

NUT - NYLock, 5/16-18

2шт.
