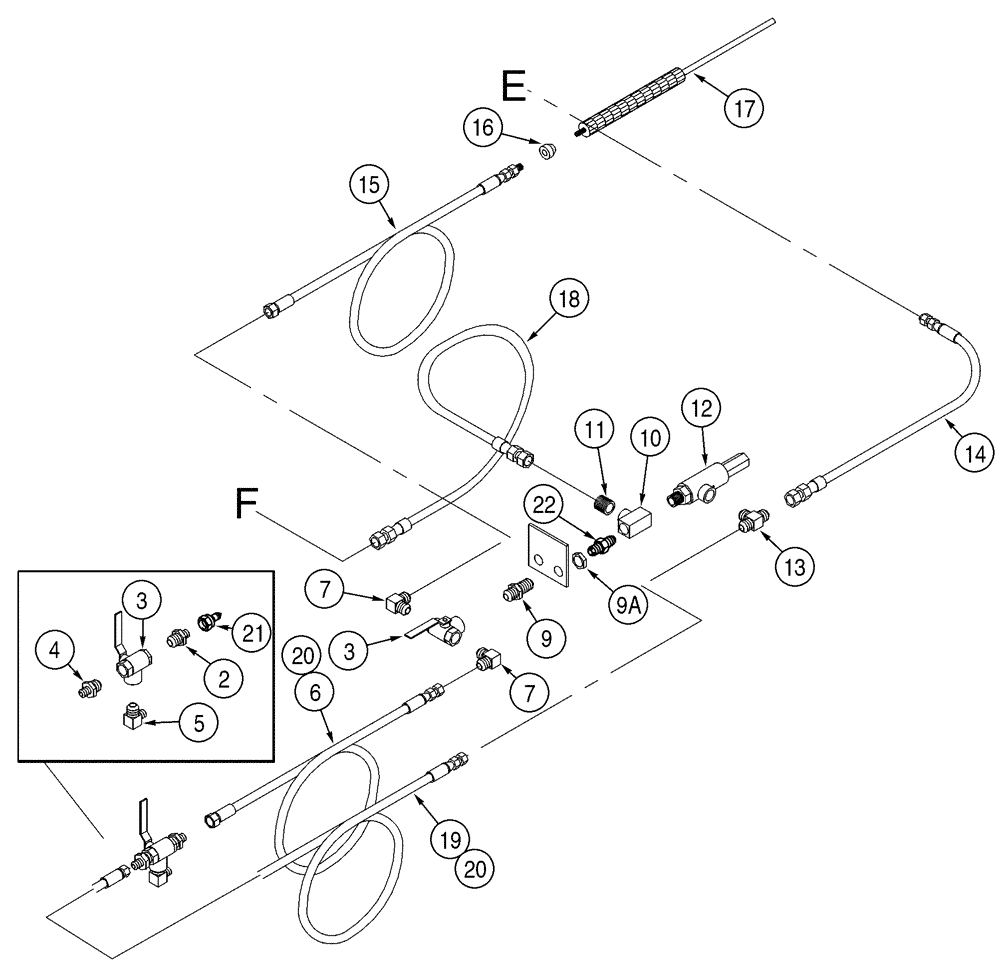

Запчасти Case BPG335 (09-06) - BPG335 HOSES, CONNECTING

2

217-1093

HYD CONNECTOR,3/4"-14 NPTF x 1/2"-14 NPTF

3/4 x 1/2 PT

1шт.

3

97060412

BALANCE VALVE

2шт.

4

218-1025

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-14, NPTF

3/4 fl x PT

1шт.

5

218-1056

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, NPTF

3/4 fl x PT, To Machine

1шт.

6

301963A1

HOSE ASSY.

15,020 mm

1шт.

7

218-1056

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, NPTF

3/4 fl x PT

2шт.

9

301968A1

Order 2706-LN-12

1шт.

9a

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

10

217-1164

TEE,3/4" - 14 NPT x 3/4" - 14 NPT x 3/4" - 14 NPT

3/4 fem PT

1шт.

11

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

1-1/16 fl x 3/4 PT

1шт.

12

99225320

VALVE, CONTROL

550 psi, See Page(s) 9-35

1шт.

13

301967A1

Order 2601-88-12

1шт.

14

301962A1

HOSE ASSY.

890 mm (35 in), Replaces H145-08 815 mm Long Hose, For Attaching Parts, See Page(s) 9-9, Ref 5

1шт.

15

301958A1

HOSE ASSY.

1/2 x 2510 mm, Replaces 98000611

1шт.

16

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

1/2 male x 1/4 fem

1шт.

17

02507311

WASHER

48 in, Mixing Wand

1шт.

18

301959A1

HOSE ASSY.

810 mm (31-15/16 in), Replaces H145-12 735 mm (29 in) Long Hose, Attaches To Drill Fluid Pump, For Attaching Parts, See Page(s) 9-13, Ref 3

1шт.

19

301957A1

HOSE ASSY.

15,320 mm (603-5/32 in)

1шт.

20

302263A1

SLEEVE

3 in ID x 14,020 mm

1шт.

21

00400512

NIPPLE, LUBE

NIPPLE , 1/2

1шт.

22

310588A1

FITTING

1шт.
