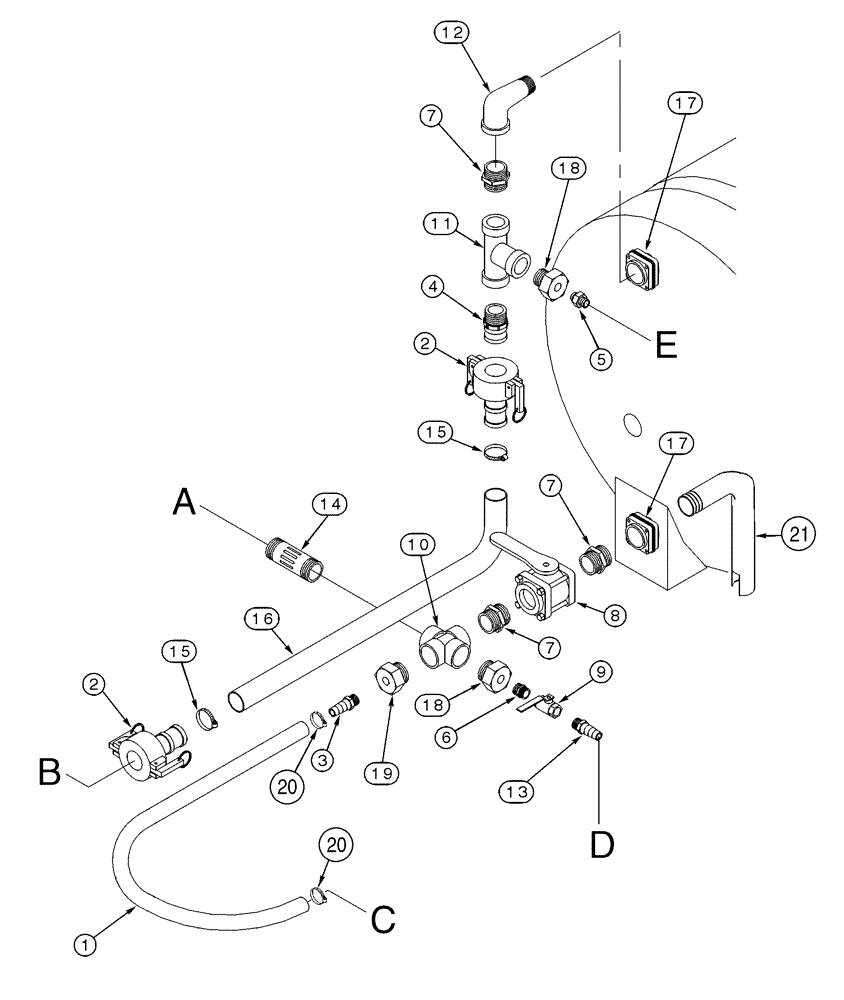

Запчасти Case BPG335 (09-03) - BPG335 PUMP, INJECTOR SYSTEM

1

301960A1

HOSE

1-1/4 ID x 21-1/16, For Attaching Parts, See Page(s) 9-13, Ref 3

1шт.

2

98200318

COUPLING

2 in fem barb, For Attaching Parts, See Page(s) 9-5, Ref 4

2шт.

3

98012518

ADAPTER

1-1/4 PT x 1-1/4 barb

1шт.

4

98200618

ADAPTER

2 in PT, male

1шт.

5

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

1-1/16 fl x 3/4 PT, For Attaching Parts, See Page(s) 9-17, Ref 14

1шт.

6

217-1073

HYD CONNECTOR,3/4" - 14 NPTF

3/4 PT

1шт.

7

98024112

NIPPLE, LUBE

NIPPLE , 2 in PT

3шт.

8

52120111

VALVE

2 in PT, Component Parts Not Serviced Separately

1шт.

9

01434111

BALANCE VALVE

1шт.

10

98020112

CROSS

2 in fem PT

1шт.

11

52110011

TEE

2 in fem PT

1шт.

12

98020312

PIPE

2 in PT

1шт.

13

217-155

FITTING,3/4" Hose Barb x 3/4" Male NPTF

3/4 PT x barb, For Attaching Parts, See Page(s) 9-15, Ref 5

1шт.

14

98020018

NIPPLE, LUBE

NIPPLE , 2 PT x 6 in, For Attaching Parts, See Page(s) 9-5, Ref 11

1шт.

15

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

16

98020012

HOSE

2 ID x 36 in, If Used

1шт.

16

301964A1

HOSE

2 ID x 21-1/16, If Used

1шт.

17

98060516

FITTING

2 in blkhd

2шт.

18

98020075

FITTING

2 PT x 3/4 in PT

2шт.

19

98020125

FITTING

2 PT x 1-1/4 in PT

1шт.

20

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

21

301966A1

TUBE,1" ID, 2.375" OD, 12, 4.5" Length

2 NPT, Siphon

1шт.
