Запчасти Case BPG335 (09-48) - HOSES, SINGLE WATER TANK

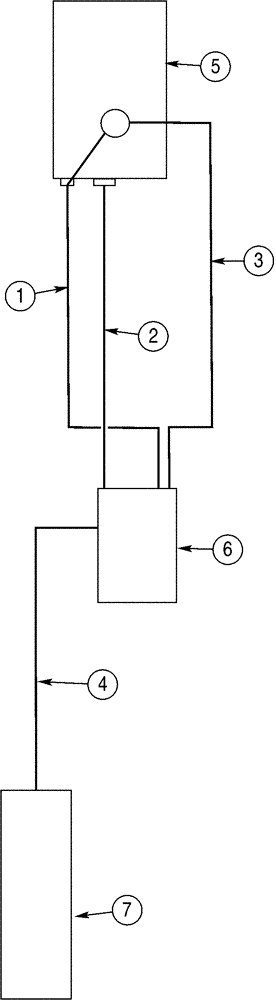

Схема запчастей Case BPG335 - (09-48) - HOSES, SINGLE WATER TANK
3
1
6
7
4
5
2

Артикул

Название

Примечание

Количество

1

402083A2

HOSE ASSY.

3 in x 1900 mm, Return, Mud Pump To Water Tank

1шт.

2

402086A1

HOSE ASSY.

4 in x 1420 mm, Suction, Water Tank To Mud Pump

1шт.

3

402087A2

HOSE ASSY.

2 in x 3450 mm, Water Tank To Mud Pump

1шт.

4

371041A2

HOSE ASSY.

2 in ID x 15240 mm, Mud Pump To Drill

1шт.

5

REF

INSTRUCTION

Tank, Water

1шт.

6

REF

INSTRUCTION

Pump, Mud

1шт.

7

REF

INSTRUCTION

Drill

1шт.

Выбрано товаров: 7
