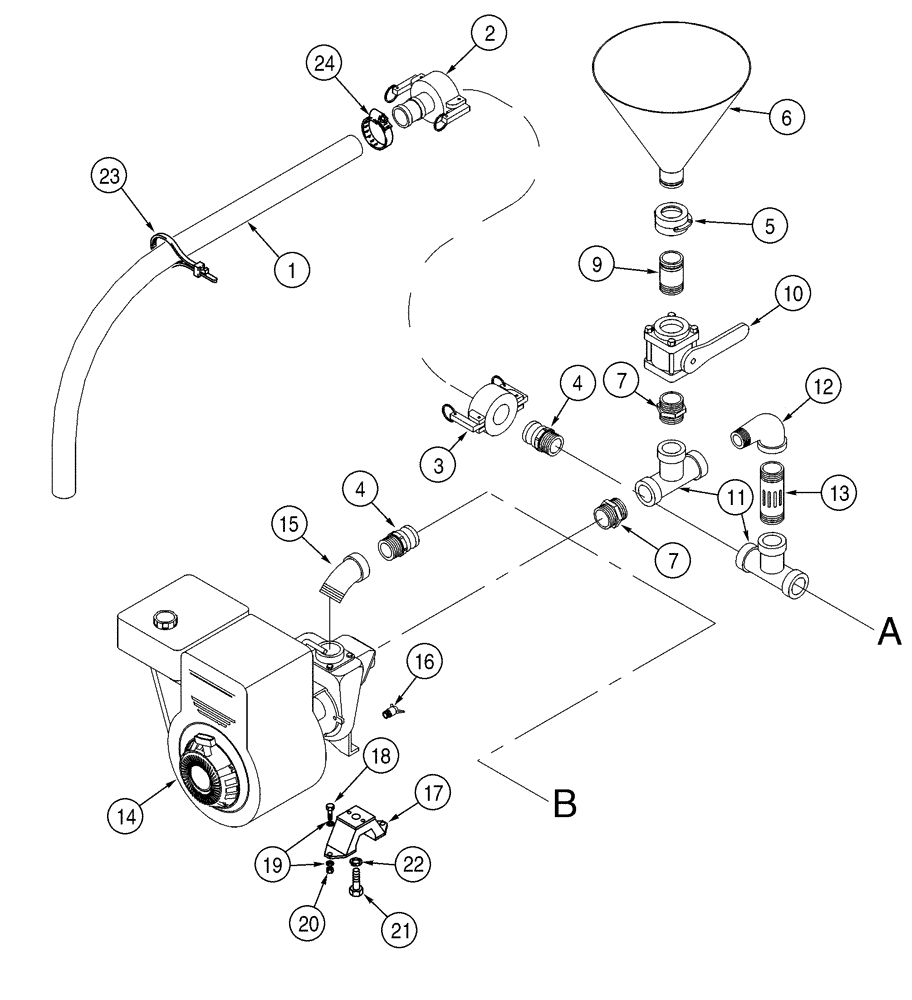

Запчасти Case BPG335 (09-02) - BPG335 PUMP, MIXING SYSTEM

1

98020012

HOSE

2 ID x 36 in, If Used

1шт.

1

307365A1

HOSE

2 ID x 1220 mm (48 in), Drain, If Used

1шт.

2

98200318

COUPLING

2 in fem barb, Auxiliary Fluid Connection and Drain

1шт.

3

98220018

CAP

2 in

1шт.

4

98200618

ADAPTER

2 in PT, male, For Attaching Parts, See Page(s) 9-9, Ref 2, 14

2шт.

5

89700032

CLAMP

2 in

1шт.

6

98184415

FUNNEL

1шт.

7

98024112

NIPPLE, LUBE

NIPPLE , 2 in PT

2шт.

9

69332040

FITTING

2 x 2-1/2 in PT

1шт.

10

52120011

VALVE

2 Inch PT With 1-1/2 Inch Port, Component Parts Not Serviced Separately

1шт.

11

52110011

TEE

2 in fem PT, For Attaching Parts, See Page(s) 9-9, Ref 14

2шт.

12

98020312

PIPE

2 in PT

1шт.

13

221-1308

PIPE,Nipple, 2" NPT x 3 1/2"

2 PT x 3-1/2

1шт.

14

301884A1

PUMP

Mixing Pump, With 5 hp Briggs and Stratton Engine, Order 200-PI-5, See Page(s) 9-21

1шт.

15

98204518

ELBOW

2 in PT

1шт.

16

99682912

DRAIN VALVE

1/4 PT

1шт.

17

98052160

ANCHOR

4шт.

18

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

19

496-21041

WASHER,13/32" x 13/16" x .089", HDN

16шт.

20

231-1446

NUT,3/8" - 16, Gr 5

8шт.

21

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP , 15 in

1шт.

24

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

1шт.
