Заказать запчасти

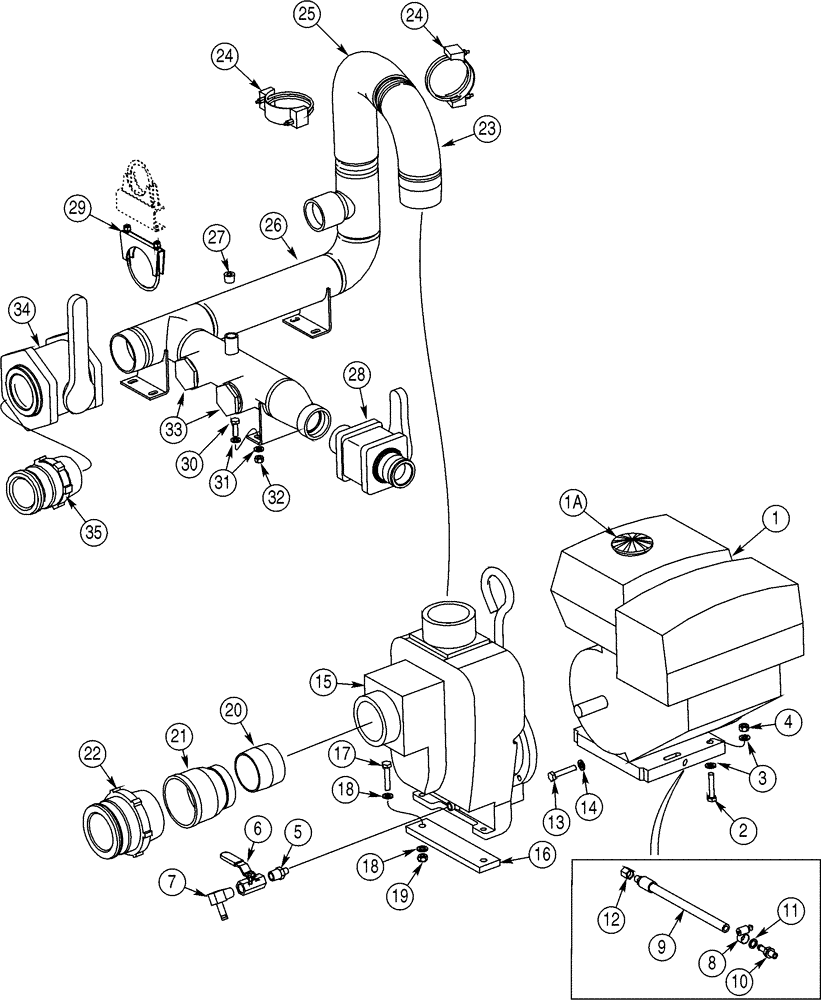

Запчасти Case BPG335 (09-40) - SKID, 13 HORSEPOWER ENGINE PUMP, MIXING SYSTEM
№
Артикул
Название
Примечание
Количество
1
390202A1
ENGINE
13 hp, Honda Engine, Component Parts Not Serviced Separately
1шт.
1a
NSS
NOT SOLD SEPARAT
Cap
1шт.
2
814-10050
BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8
4шт.
4
832-46410
NUT,M10 x 1.5, Cl 8
4шт.
5
217-63
REDUCER,1/2"-14 NPTF x 1/4"-18 NPTF
1/2 x 1/4 NPTF, Brass, If Used
1шт.
5
217-1093
HYD CONNECTOR,3/4"-14 NPTF x 1/2"-14 NPTF
3/4 x 1/2 PT, Steel, If Used
1шт.
6
01400111
BALANCE VALVE
1/2 fem PT
1шт.
7
217-335
FITTING,90 Degree Elbow, 1/2" Hose Barb x 1/2" Male NPTF
1/2 stem x PT
1шт.
8
214-1412
HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm
1шт.
9
403920A1
HOSE ASSY.
260 mm
1шт.
10
H437722
ADAPTER
Oil Drain
1шт.
11
H437723
WASHER
1шт.
13
814-10045
BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8
If used
4шт.
13
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
If Used
4шт.
15
390376A1
PUMP
See Page(s) 9-171B
1шт.
16
399295A1
PLATE
1шт.
17
814-10050
BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8
2шт.
19
832-46410
NUT,M10 x 1.5, Cl 8
2шт.
20
221-1723
PIPE,Nipple, 3" NPT x 2.62"
3 NPTF x 2-5/8
1шт.
21
399787A1
ADAPTER
4 x 3 in
1шт.
22
392939A1
FITTING
4 stem x 4 in male PT
1шт.
23
402465A1
ELBOW
1шт.
24
398648A1
CLAMP
2шт.
25
398630A1
HOSE ASSY.
406 mm
1шт.
26
398611A1
MANIFOLD ASSY
Component Parts Not Serviced Separately
1шт.
27
217-438
PLUG,Hex Soc, 1/2" - 14 NPTF
1шт.
28
387986A1
VALVE
2 fem stem x 2 in male PT, Component Parts Not Serviced Separately
1шт.
29
A17851
CLAMP
1шт.
30
614-10030
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd
6шт.
32
832-46410
NUT,M10 x 1.5, Cl 8
6шт.
33
402579A1
PLUG
2шт.
34
387984A1
VALVE
3 in male PT, Component Parts Not Serviced Separately
1шт.
35
387977A1
FITTING
1шт.
3
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
8шт.
14
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
4шт.
18
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
4шт.
31
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
12шт.
Выбрано товаров: 38
