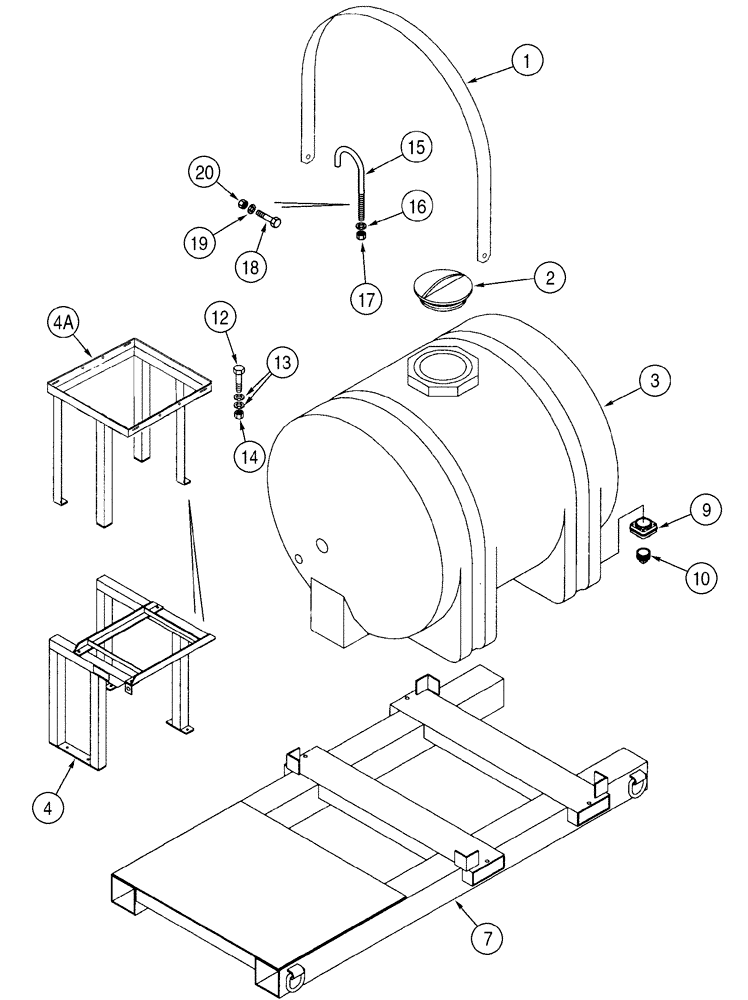

Запчасти Case BPG335 (09-01) - BPG335 FRAME AND BENTONITE TANK

1

99040301

STRAP

2шт.

2

NSS

NOT SOLD SEPARAT

Cap

1шт.

3

99040300

TANK

335 gal, Bentonite Tank

1шт.

4

98040323

STAND

Water, No Longer Available, Order 307418A1

1шт.

4a

307418A1

STAND

Water

1шт.

7

98600335

SUPPORT

Skid

1шт.

9

98060516

FITTING

2 in blkhd

1шт.

10

98020032

PLUG

2 in, Square Head, Drain

1шт.

12

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

6шт.

13

496-21053

WASHER,17/32" x 1 1/16" x .134"

12шт.

14

231-1448

NUT,1/2"-13, GB

6шт.

15

325058A1

BOLT

3/8 x 5, J-Type

2шт.

16

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

17

231-1446

NUT,3/8" - 16, Gr 5

2шт.

18

461-73120

HEX SOC SCREW,Btn Hd, 5/16"-18 x 1 1/4"

5/16 x 1-1/4

2шт.

19

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

20

231-1445

NUT,5/16"-18, GB

2шт.
