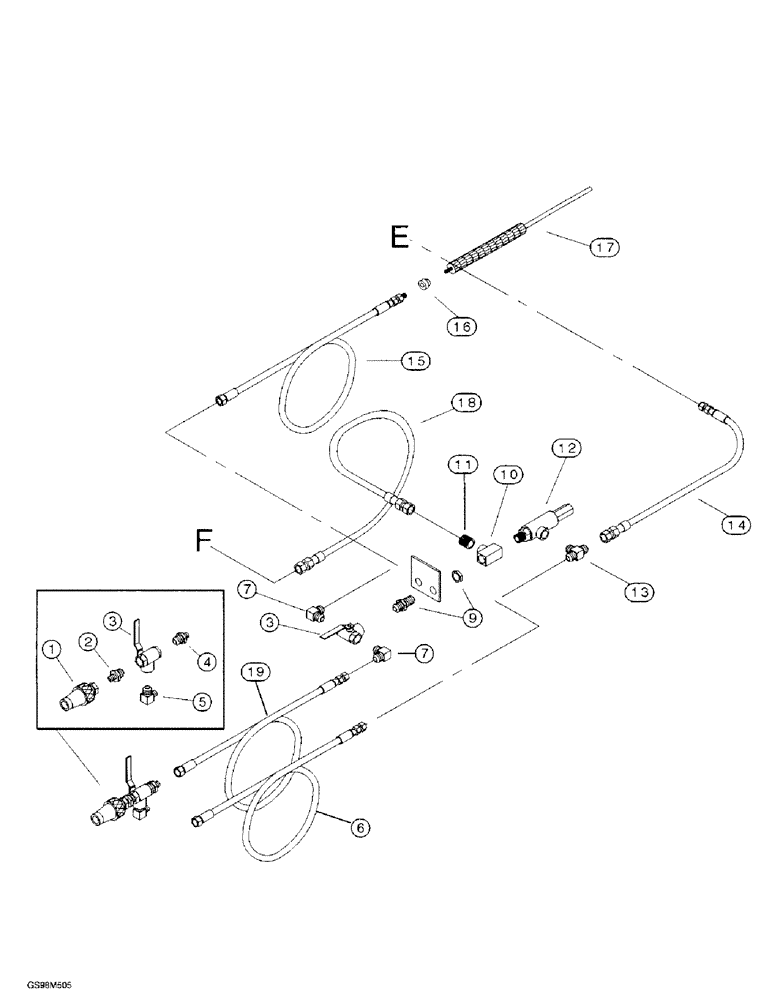

Запчасти Case BPG335 (9-12) - HOSES - CONNECTING

1

00400511

COUPLING

COUPLER - self sealing, female half (Stainless steel)

1шт.

2

218-1093

ELBOW,45 Degree, 1/2-20" 37 Degree x 1/4"-18, NPTF

REDUCER - 1/2 PT x 3/4 inch PT

1шт.

3

97060412

BALANCE VALVE

VALVE - ball, 3/4 inch, 3 way

2шт.

4

218-1025

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-14, NPTF

CONNECTOR - straight, 3/4-16 flare x 3/4 inch PT

1шт.

5

218-1056

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, NPTF

- 90 degree, 3/4-16 flare x 3/4 inch PT

1шт.

6

301957A1

HOSE ASSY.

HOSE - connecting hydraulic

2шт.

7

218-1056

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, NPTF

- 90 degree, 3/4-16 flare x 3/4 inch PT

2шт.

9

301968A1

FITTING - bulkhead, 3/4 inch PT

1шт.

10

217-1164

TEE,3/4" - 14 NPT x 3/4" - 14 NPT x 3/4" - 14 NPT

- pipe, 3/4 inch female

1шт.

11

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - straight, 1-1/16-12 flare x 3/4 inch PT

1шт.

12

99225320

VALVE, CONTROL

VALVE - relief, bentonite (See Figure 9-20)

1шт.

13

301967A1

TEE - 3/4-16 flare x 3/4-16 flare x 3/4 inch PT

1шт.

14

301962A1

HOSE ASSY.

HOSE - 815 mm (32 inch), hydraulic

1шт.

15

301958A1

HOSE ASSY.

HOSE - wand, hydraulic

1шт.

16

221-1055

REDUCER,Hex, 1/2" x 1/4" NPT

- pipe, 1/2 male x 1/4 inch female

1шт.

17

02507311

WASHER

WAND - pressure, washing, 48 inch

1шт.

18

301959A1

HOSE ASSY.

HOSE - 735 mm (29 inch), hydraulic

1шт.

19

301963A1

HOSE ASSY.

HOSE - 15 020 mm, hydraulic

1шт.
