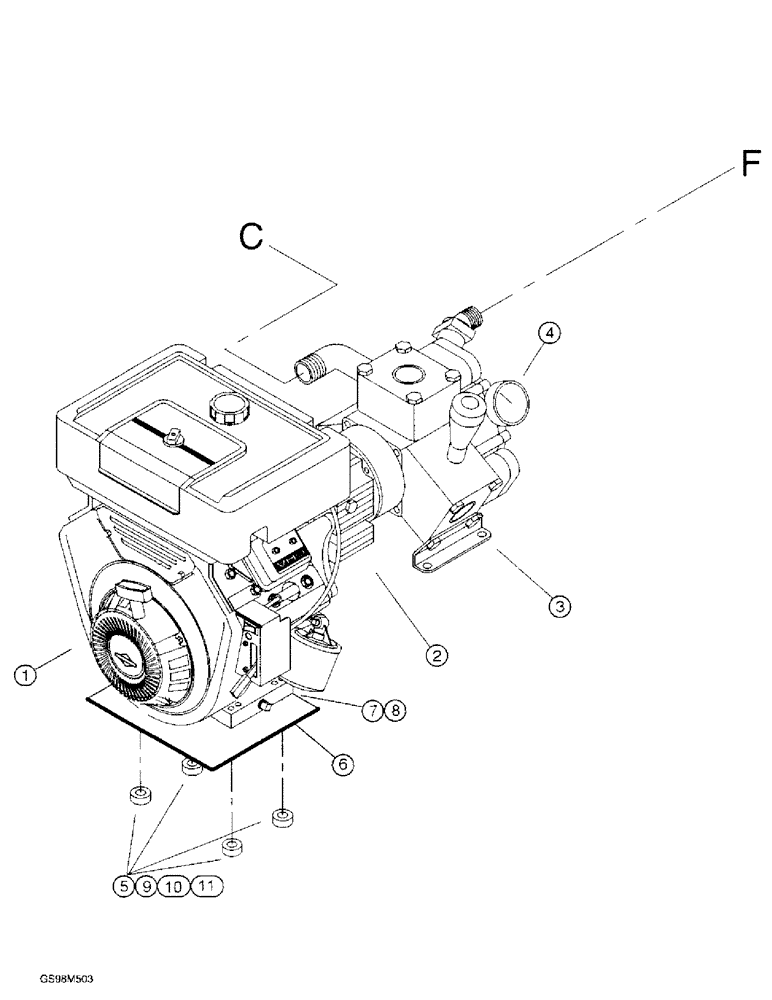

Запчасти Case BPG335 (9-08) - INJECTOR PUMP AND ENGINE

1

99161412

MOTOR

ENGINE - gasoline, 9 HP Vanguard

1шт.

2

99164411

GEARBOX ASSY

GEARBOX - injector pump, 6:1 ratio

1шт.

3

318372A1

PUMP ASSEMBLY - bentonite injector, modified (See Figures 9-16, 9-18)

1шт.

4

15224200

GAUGE

- pressure, 2000 PSI with viton socket

1шт.

5

99153414

ANCHOR

MOUNT - rubber isolator

4шт.

6

98040374

MOUNTING PARTS

MOUNT - plate, 9HP engine

1шт.

7

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

9

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4шт.

10

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

8шт.

11

231-1445

NUT,5/16"-18, GB

NUT - NYLock, 5/16-18

4шт.
