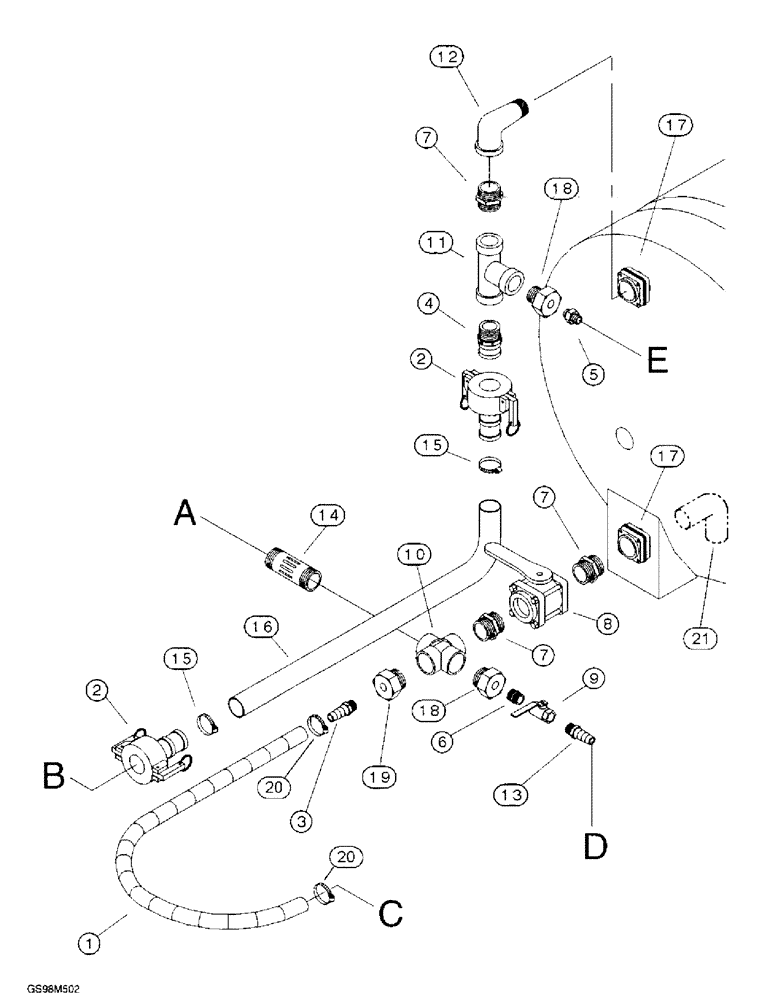

Запчасти Case BPG335 (9-06) - INJECTOR PUMP SYSTEM

1

301960A1

HOSE

- tank to injector pump, low pressure

1шт.

2

98200318

COUPLING

COUPLER - hose barb, female, 2 inch

2шт.

3

98012518

ADAPTER

- straight, 1-1/4 PT x 1-1/4 inch hose barb

1шт.

4

98200618

ADAPTER

- threaded, male, 2 inch PT

1шт.

5

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - straight, 1-1/16-12 flare x 3/4 inch PT

1шт.

6

218-1073

FITTING

NIPPLE - hex, 3/4 PT x 1-15/16 inch

1шт.

7

98024112

NIPPLE, LUBE

NIPPLE - short, 2 inch PT

3шт.

8

52120111

VALVE

- ball, 2 inch PT with full port

1шт.

9

01434111

BALANCE VALVE

VALVE - ball, 3/4 inch, 2-way

1шт.

10

98020112

CROSS

- pipe, 2 inch PT, female

1шт.

11

52110011

TEE

- 2 inch

1шт.

12

98020312

PIPE

ELBOW - street, 90 degree, 2 inch PT

1шт.

13

217-155

FITTING,3/4" Hose Barb x 3/4" Male NPTF

- straight, 3/4 PT x 3/4 inch hose barb

1шт.

14

98020018

NIPPLE, LUBE

NIPPLE - pipe, 2 PT x 6 inch

1шт.

15

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, #28, 1.31/2.25 Type F Worm

2шт.

16

301964A1

HOSE

- 2 x 36 inch

1шт.

17

98060516

FITTING

- tank bulkhead, 2 inch

2шт.

18

98020075

FITTING

BUSHING - reducer, 2 PT x 3/4 inch PT

2шт.

19

98020125

FITTING

BUSHING - reducer, 2 PT x 1-1/4 inch PT

1шт.

20

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, #16, 0.81/1.50 Type F Worm

2шт.

21

301966A1

TUBE,1" ID, 2.375" OD, 12, 4.5" Length

FITTING - 2 inch, siphon tube

1шт.
