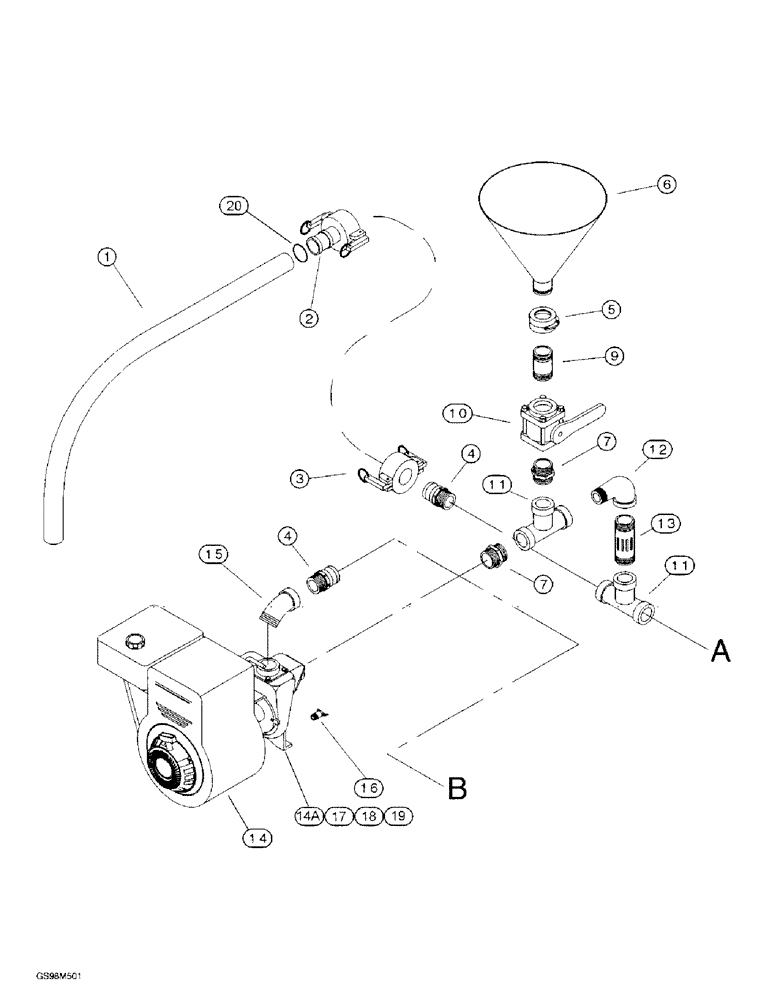

Запчасти Case BPG335 (9-04) - MIXING PUMP SYSTEM

1

307365A1

HOSE

- 2 x 36 inch

1шт.

2

98200318

COUPLING

COUPLER - hose barb, female, 2 inch

1шт.

3

98220018

CAP

- coupler, 2 inch

1шт.

4

98200618

ADAPTER

- threaded, male, 2 inch PT

2шт.

5

89700032

CLAMP

- Gruvlock, 2 inch

1шт.

6

98184415

FUNNEL

- bentonite, stainless steel

1шт.

7

98024112

NIPPLE, LUBE

NIPPLE - short, 2 inch PT

2шт.

9

69332040

FITTING

NIPPLE - Gruvlock, 2 1/2 x 2 inch PT

1шт.

10

52120011

VALVE

- ball, 2 inch PT with 1-1/2 - 2 inch port

1шт.

11

52110011

TEE

- 2 inch

2шт.

12

98020312

PIPE

ELBOW - street, 90 degree, 2 inch PT

1шт.

13

221-1308

PIPE,Nipple, 2" NPT x 3 1/2"

NIPPLE - straight, 2 PT x 3-1/2 inch

1шт.

14

301884A1

PUMP

ENGINE - gasoline, 5 HP with mixing pump, Includes: Ref. 14A

1шт.

14a

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - mixing (See Figure 9-14)

1шт.

15

98204518

ELBOW

- street, 45 degree, 2 inch PT

1шт.

16

99682912

DRAIN VALVE

VALVE - drain, 1/4 inch PT

1шт.

17

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

18

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

8шт.

19

231-1445

NUT,5/16"-18, GB

NUT - NYLock, 5/16-18

4шт.

20

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, #28, 1.31/2.25 Type F Worm

1шт.
