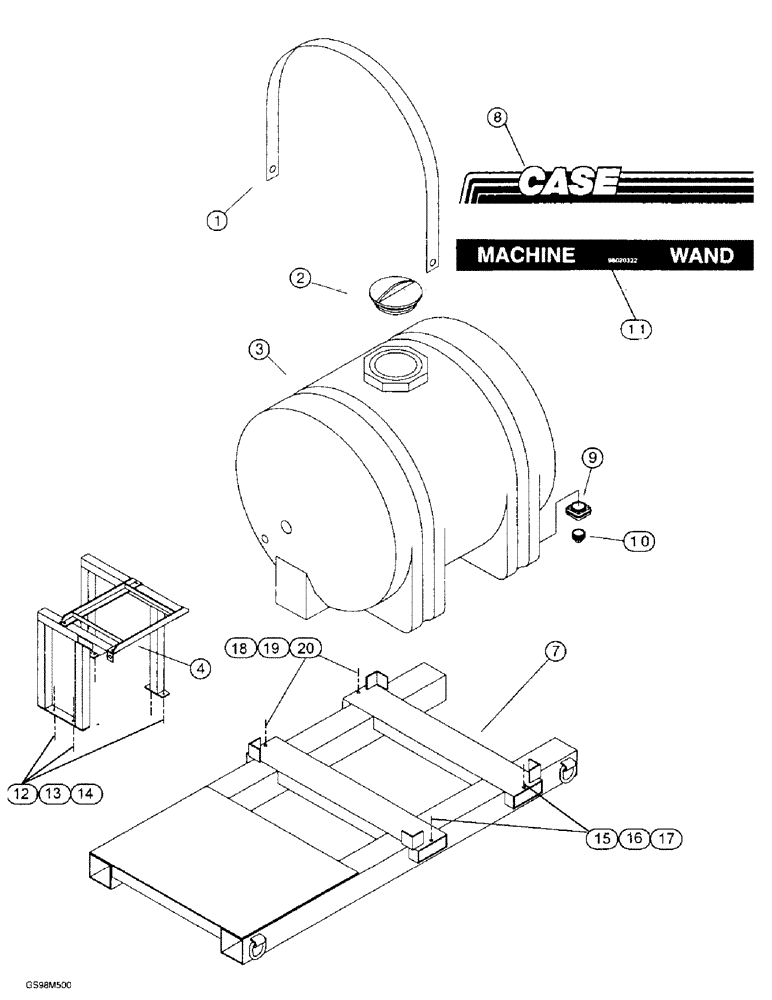

Запчасти Case BPG335 (9-02) - FRAME AND BENTONITE TANK

1

99040301

STRAP

- tank hold down, bentonite tank

2шт.

2

NSS

NOT SOLD SEPARAT

CAP - bentonite tank

1шт.

3

99040300

TANK

- bentonite, 355 gallon

1шт.

4

307418A1

STAND

- anti-freeze tank support

1шт.

7

98600335

SUPPORT

FRAME - skid, bentonite

1шт.

8

179217A2

DECAL

- Case, with stripes, left-hand (Shown)

1шт.

8

179218A2

DECAL

- Case, with stripes, right-hand

1шт.

9

98060516

FITTING

- bulkhead, 2 inch

1шт.

10

98020032

PLUG

- square head, 2 inch

1шт.

11

98020322

DECAL

- machine/wand

1шт.

12

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

6шт.

13

496-21053

WASHER,17/32" x 1 1/16" x .134"

- 1/2 inch

12шт.

14

231-1448

NUT,1/2"-13, GB

- 1/2 inch

6шт.

15

325058A1

BOLT

- 3/8 NC x 5 inch

2шт.

16

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

17

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

2шт.

18

461-73116

HEX SOC SCREW,Btn Hd, 5/16"-18 x 1"

BOLT - BHCS, 5/16-18 x 1 inch

2шт.

19

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

20

231-1445

NUT,5/16"-18, GB

NUT - NYLock, 5/16-18

2шт.
