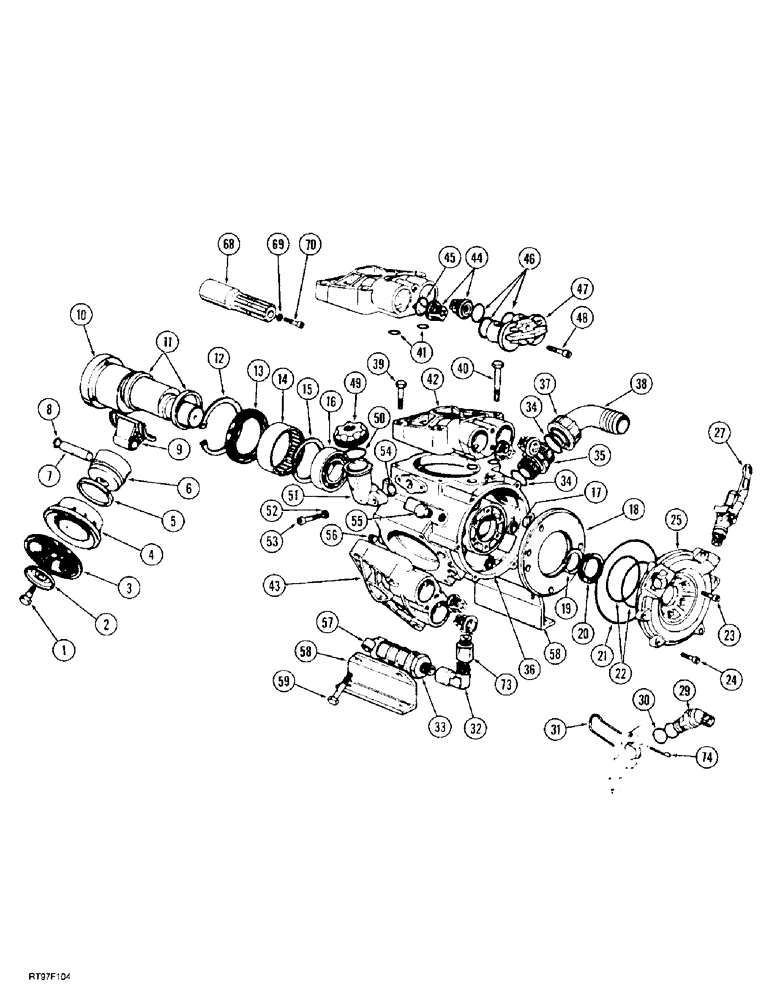

Запчасти Case BPG335 (9-16) - INJECTOR PUMP ASSEMBLY

99105031

PUMP

- bentonite injector, modified (See Figure 9-8), Includes: Ref. 1 - 74

1шт.

1

51200174

BOLT

- retaining

3шт.

2

1040180

WASHER

- retaining

3шт.

3

620085

DIAPHRAGM

- pump (Desmopan)

3шт.

Part of diaphragm repair kit. P/N KIT1881

1шт.

3

99106200

DIAPHRAGM

- pump (Buna-N)

3шт.

4

51200159

SLEEVE

- piston

3шт.

5

160230

RING, PISTON

RING - sealing, piston

3шт.

6

620120

PISTON

- diaphragm pump

3шт.

7

380300

PIN

- connecting

3шт.

8

380080

RING

- retaining

3шт.

9

1300140

ROD

- connecting

3шт.

10

1300170

LARGE PLATE

SHAFT - crank

1шт.

11

1300210

RING - retaining

2шт.

12

1300240

RING

- retaining

1шт.

13

1300220

CYLINDER END CAP

SEAL - crank shaft

1шт.

14

1300210

RING - retaining

1шт.

15

NLS

NO LONGER SERVICED

RING - retaining

1шт.

16

180400

BEARING

- crankshaft

1шт.

17

98000159

O-RING

- chamber plate

5шт.

18

99102395

LARGE PLATE

PLATE - chamber

1шт.

19

99105031L

RING, SNAP

RING - retaining

1шт.

20

99105031F

SEAL

- chamber plate

1шт.

21

99105031N

O-RING

- manifold

1шт.

22

99105031J

O-RING

- manifold

2шт.

23

880280

BOLT

- retaining

6шт.

24

880280

BOLT

retaining

6шт.

25

99105031M

TUBE ASSY.

MANIFOLD - outlet

1шт.

27

30491

VALVE

- ball, 3/8 inch hose barb

1шт.

29

99105031D

ADAPTER

- port, 3/4 inch PT

1шт.

30

390180

O-RING

- port adapter

2шт.

31

1040690

CLIP

- retaining

1шт.

32

120150

ELBOW

- street

1шт.

33

269050

VALVE

- relief

1шт.

34

98390290

O-RING

- port adapter

2шт.

35

98450120

ADAPTER

- port

1шт.

36

1300010

BODY

- pump

1шт.

37

NLS

NO LONGER SERVICED

NUT - fitting

1шт.

38

51200172

ELBOW

- hose barb

1шт.

39

86982785

BOLT

- cylinder head

4шт.

40

640230

BOLT

- cylinder head

4шт.

KIT1881

KIT

- diaphragm repair, Includes: Ref. 3 on Figures 9-16 and 9-18.

1шт.

99105031

PUMP

- bentonite injector, modified (See Figure 9-8)

1шт.

41

99105031H

O-RING

- cylinder head

6шт.

42

99105031B

HEAD

- cylinder

2шт.

43

99105031C

HEAD

- cylinder

1шт.

44

99105031A

VALVE

- cylinder head

6шт.

45

98026470

O-RING,26MM ID x 4MM Width

- check valve

6шт.

46

99105031I

O-RING

- valve

6шт.

47

99105031E

COVER

RETAINER - valve

3шт.

48

540290

BOLT

- retainer mounting

6шт.

49

51200170

CAP

- oil filler

1шт.

50

550040

O-RING

- filler cap

1шт.

51

550030

SIGHTGLASS

SIGHT GLASS - oil level

1шт.

52

550331

WASHER

- lock

2шт.

53

850850

BOLT

- sight glass retaining

2шт.

54

99105031G

O-RING

- sight glass

1шт.

55

30171

PLUG

- hex

1шт.

56

51200176

PLUG

- hex

1шт.

57

1300280

SPACER

- mounting bracket

2шт.

58

1300090

BRACKET

- mounting

2шт.

59

1300360

BOLT

- hex

4шт.

68

650300

SHAFT

ADAPTER - drive

1шт.

69

961340

WASHER

- lock

1шт.

70

680350

BOLT

- adapter retaining

1шт.

73

1040490

FITTING

- adapter

1шт.

74

1040950

PIN

- cotter

2шт.

KIT1881

KIT

- diaphragm repair, Includes: Ref. 3, on Figures 9-16 and 9-18.

1шт.

KIT1987

KIT

- valve repair, includes all Refs.

1шт.
