Запчасти Case BPDHP335 (9-12) - INJECTOR PUMP SYSTEM

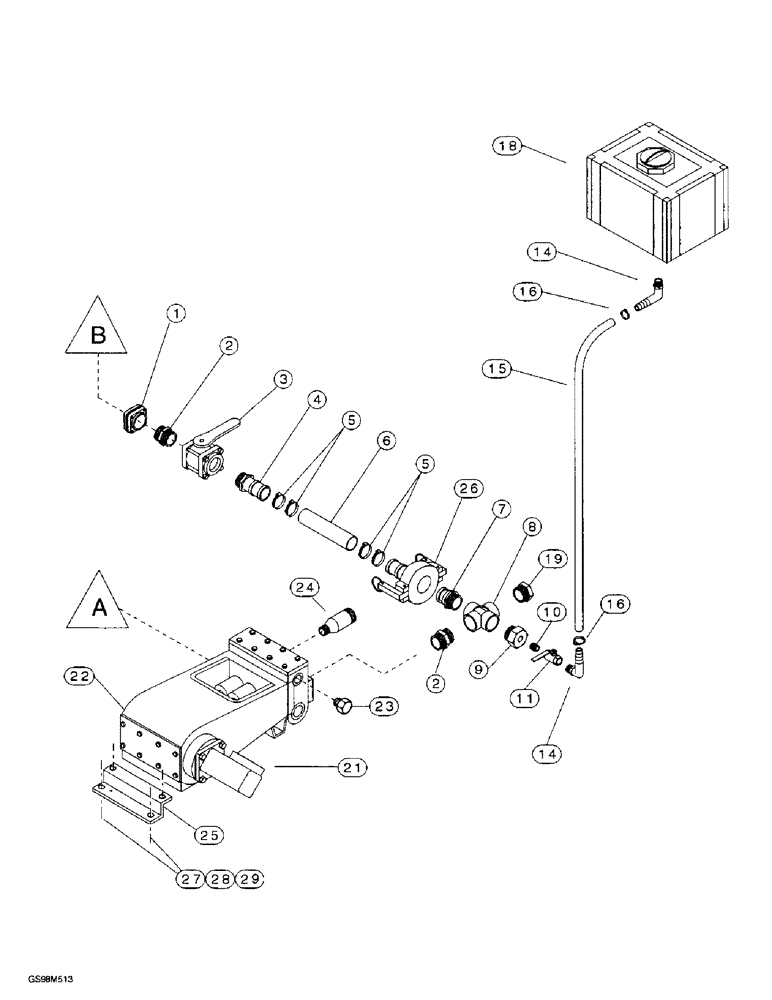

Схема запчастей Case BPDHP335 - (9-12) - INJECTOR PUMP SYSTEM

Артикул

Название

Примечание

Количество

1

98060516

FITTING

- bulkhead, 2 inch

1шт.

2

98024112

NIPPLE, LUBE

NIPPLE - short, 2 inch PT

2шт.

3

52120111

VALVE

- ball, 2 inch PT with full port

1шт.

4

98020212

HOSE

ADAPTER - straight, 2 inch PT x hose barb

1шт.

5

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, #28, 1.31/2.25 Type F Worm

4шт.

6

307357A1

HOSE

- 2 x 36 inch

1шт.

7

98200618

ADAPTER

- threaded, male, 2 inch PT

1шт.

8

98020112

CROSS

- pipe, 2 inch PT, female

1шт.

9

98020075

FITTING

BUSHING - reducer, 2 PT x 3/4 inch PT

1шт.

10

218-1073

FITTING

NIPPLE - close, 3/4 inch PT

1шт.

11

01434111

BALANCE VALVE

VALVE - ball, 3/4 inch PT, 2-way

1шт.

14

98759019

FITTING

ELBOW - 90 degree, 3/4 inch male PT x 3/4 inch hose barb

1шт.

15

307359A1

HOSE

- 2 inch x 28 inch

1шт.

16

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 3/4 inch

2шт.

18

15012035

PLASTIC

TANK - anti-freeze, 12 gallon

1шт.

19

98020032

PLUG

- square head, 2 inch

1шт.

99014511

PUMP

ASSEMBLY - bentonite, Includes: Ref. 21 and 22

1шт.

21

NSS

NOT SOLD SEPARAT

MOTOR - hydraulic

1шт.

22

NSS

NOT SOLD SEPARAT

PUMP - bentonite

1шт.

310583A1

SPRING

- elastemer (SC-30)

1шт.

310585A1

BAFFLE

PLATE, baffle (SC-30)

1шт.

310581A1

OIL SEAL

SEAL, oil (SC-30)

1шт.

310580A1

RING ASSY.

RING, poly pak (SC-30)

1шт.

310582A1

O-RING

rod seal (SC-30)

1шт.

325636A1

SEAL KIT

fluid end seal (SC-30)

1шт.

325637A1

KIT

plunger replacement (SC-30)

1шт.

325638A1

SEAL KIT

power end seal (SC-30)

1шт.

325639A1

BOX

fluid end (SC-30)

1шт.

325640A1

NUT

gland (SC-30)

1шт.

318079A1

O-RING

KIT, valve seal (SC30)

1шт.

324456A1

KIT

valve replacement

1шт.

318081A1

O-RING

KIT, power end rod seal (SC30)

1шт.

323701A1

MOTOR, HYDRAULIC

1шт.

310579A1

BOX

wiper (SC30)

1шт.

310584A1

SPRING

spacer (SC30)

1шт.

99014511A

PACKING

SEAL, packing (SC30)

1шт.

99014511E

VALVE

suction/discharge (SC30)

1шт.

324444A1

COVER

valve/cylinder (SC30)

1шт.

324457A1

PISTON

ROD, plunger, 1-5/8 inch diameter (SC30)

1шт.

316616A1

SEAL

stuffing box (SC30)

1шт.

23

221-36

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - square head, 1 inch

1шт.

24

98000106

COUPLING

COUPLER - self sealing, female half (Stainless steel)

1шт.

25

98040321

BRACKET

- pump mounting

2шт.

26

98200318

COUPLING

COUPLER - hose barb, female, 2 inch

1шт.

27

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

28

496-21053

WASHER,17/32" x 1 1/16" x .134"

- 1/2 inch

16шт.

29

231-1448

NUT,1/2"-13, GB

- 1/2 inch

8шт.

Выбрано товаров: 47
