Запчасти Case BPDHP335 (9-10) - MIXING PUMP SYSTEM

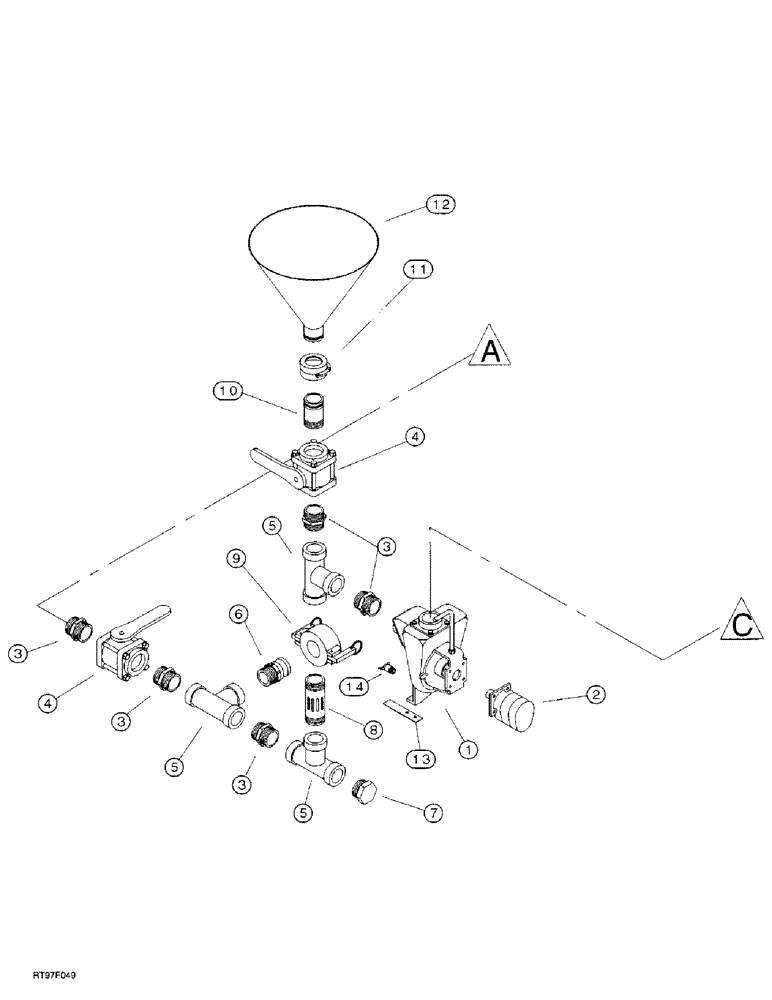

Схема запчастей Case BPDHP335 - (9-10) - MIXING PUMP SYSTEM

Артикул

Название

Примечание

Количество

98200311

PUMP

ASSEMBLY - mixing, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP - mixing

1шт.

2

NSS

NOT SOLD SEPARAT

MOTOR - hydraulic

1шт.

3

98024112

NIPPLE, LUBE

NIPPLE - short, 2 inch PT

5шт.

4

52120111

VALVE

- ball, 2 inch PT with full port

2шт.

5

52110011

TEE

- pipe, 2 inch PT, female

2шт.

6

98200618

ADAPTER

- threaded, male, 2 inch PT

1шт.

7

98020032

PLUG

- square head, 2 inch

1шт.

8

98024012

TRANSMISSION SLEEVE

NIPPLE - pipe, 2 PT x 4 inch

1шт.

9

98220018

CAP

- coupler, 2 inch

1шт.

10

69332040

FITTING

NIPPLE - Gruvlock, 2-1/2 x 2 inch PT

1шт.

11

89700032

CLAMP

- Gruvlock, 2 inch

1шт.

12

98184415

FUNNEL

- bentonite, stainless steel

1шт.

13

98040400

SPACER

- mixing pump

1шт.

14

99682912

DRAIN VALVE

VALVE - drain, 1/4 inch PT

1шт.

Выбрано товаров: 15
