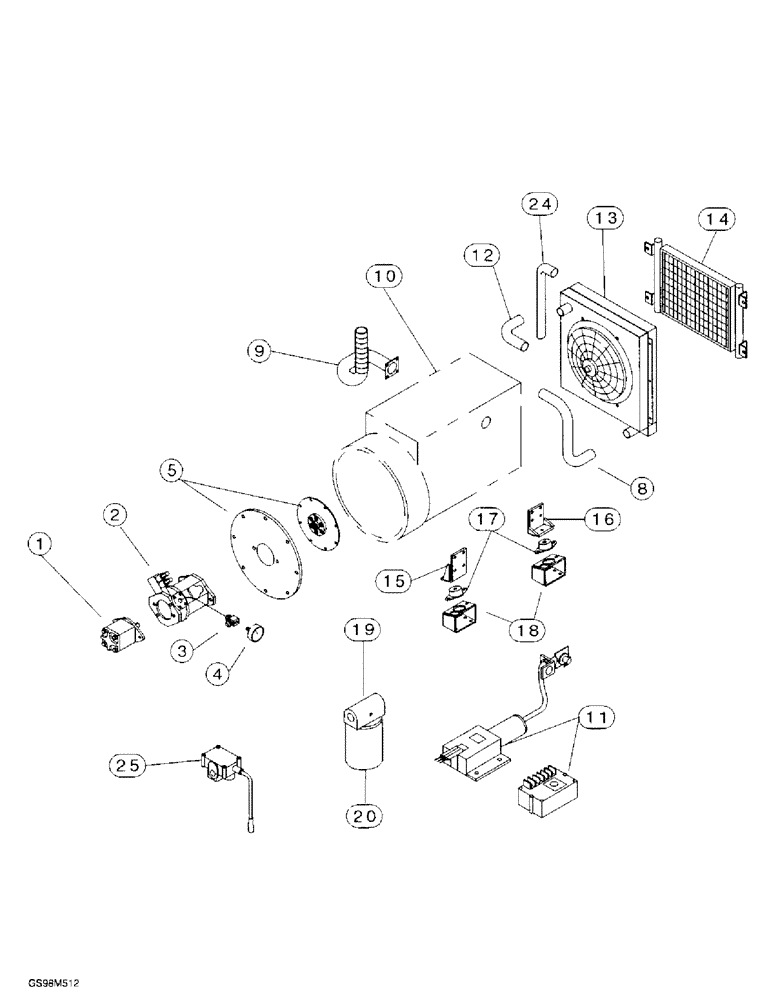

Запчасти Case BPDHP335 (9-06) - ENGINE AND HYDRAULIC PUMPS

1

98031110

PUMP

PUMP - gear

1шт.

2

98010280

PUMP

- load sense

1шт.

3

FITTING - special

1шт.

4

00031511

GAUGE

- pressure, 5000 PSI

1шт.

5

TX212334

COUPLING

-, Serial Range: flywheel-pump

1шт.

8

NSS

NOT SOLD SEPARAT

HOSE - radiator, lower

1шт.

9

98001923

PIPE, EXHAUST SYSTEM

PIPE - exhaust, custom, Includes: Ref. 9A and 9B

1шт.

9a

98001923

PIPE, EXHAUST SYSTEM

PIPE - exhaust

1шт.

9b

TX440684

FLANGE - exhaust

1шт.

10

98000023

ENGINE ASSEMBLY

ENGINE - diesel, 23 HP

1шт.

11

TX061213

KIT

SOLENOID - throttle

1шт.

12

NSS

NOT SOLD SEPARAT

HOSE - radiator, upper

1шт.

13

NSS

NOT SOLD SEPARAT

RADIATOR - engine coolant

1шт.

14

TX401012

COOLER

- hydraulic oil

1шт.

15

TX440111

BRACKET

- mounting, engine, upper rear

2шт.

16

TX440112

BRACKET

- mounting, engine, upper front

2шт.

17

TX425641

MOUNTING PARTS

ISOLATOR - engine

4шт.

18

TX440180

BRACKET

- mounting, engine, lower rear, and lower front

4шт.

19

98112513

HEAD

ASSEMBLY - filter, Includes: Ref. 20

1шт.

20

98112510

ELEMENT

- filter

1шт.

24

325425A1

HOSE

- rubber, 5/16 inch

1шт.

25

300281A1

VALVE

ASSEMBLY - control

1шт.

SVE21

VALVE

OUTLET - control valve

1шт.

SV125-3000

VALVE

INLET - control valve

1шт.

SVW1BB4

VALVE

SECTION - control valve

1шт.

671200011

DETENT

- stop

1шт.

660401001

KIT

- tie bolt

1шт.
