Запчасти Case BPDHP335 (9-04) - ENGINE ENCLOSURE

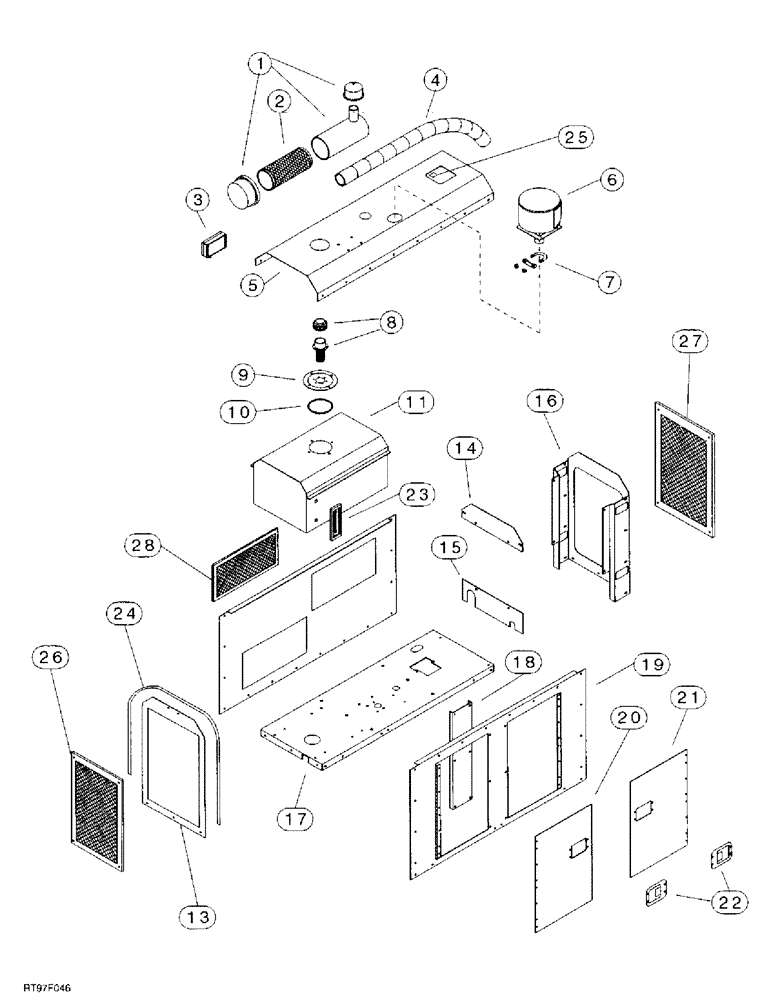

Схема запчастей Case BPDHP335 - (9-04) - ENGINE ENCLOSURE

Артикул

Название

Примечание

Количество

1

H152553

AIR CLEANER

FILTER ASSEMBLY - air, Includes: Ref. 2

1шт.

2

NSS

NOT SOLD SEPARAT

ELEMENT - air filter

1шт.

3

TX906453

LAMP, WORK

LIGHT - work

1шт.

4

TX482101

INTAKE AIR HOSE,44.50 mm ID, 50.80 mm ID x 970.00 mm, SAE J200

HOSE - air filter intake

1шт.

5

98040781

DOOR

PANEL - top

1шт.

6

TX440306

MUFFLER

- low decibel, custom, Includes: Ref. 6A, 6B and 6C

1шт.

6a

TX422235

MUFFLER - diesel

1шт.

6b

TX440920

BRACKET - muffler

1шт.

6c

TX422236

TUBE - exhaust extension

1шт.

7

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP - muffler mounting, 2 inch

1шт.

8

TX405715

FILLER CAP

CAP - filler

1шт.

9

TX440178

LARGE PLATE

PLATE - access, oil reservoir

1шт.

10

TX405225

O-RING

GASKET - access plate

1шт.

11

98040329

RESERVOIR

- hydraulic oil, 15 gallon

1шт.

12

98040783

DOOR

PANEL - inside, enclosure

1шт.

13

98040314

PANEL

- end, enclosure

1шт.

14

319264A1

SHROUD

PLATE - top, air baffle

1шт.

15

319265A1

SHROUD

PLATE - bottom, air baffle

1шт.

16

TX440300

MOUNTING PARTS

MOUNT - radiator

1шт.

17

98040789

PLATE

- base, enclosure

1шт.

18

98040345

CHANNEL

- door post

1шт.

19

98000313

PANEL

ASSEMBLY - enclosure, Includes: Ref. 20 - 22

1шт.

20

51200229

DOOR

- enclosure, left-hand

1шт.

21

51200229

DOOR

- enclosure, right-hand

1шт.

22

TX401115

LATCH

- door, lockable paddle with key

2шт.

23

00370015

GAUGE

- sight, oil with thermometer

1шт.

24

TX400334

ORNAMENTAL STRIP

TRIM - vinyl lock

1шт.

25

TX423235

LATCH

- access door

1шт.

26

98040332

PANEL

- access

1шт.

27

303581A1

GRILLE

GRILL - radiator

1шт.

28

TX440167

FRAME

PANEL, side access

2шт.

Выбрано товаров: 31
