Запчасти Case BPDHP335 (9-02) - FRAME AND BENTONITE TANK

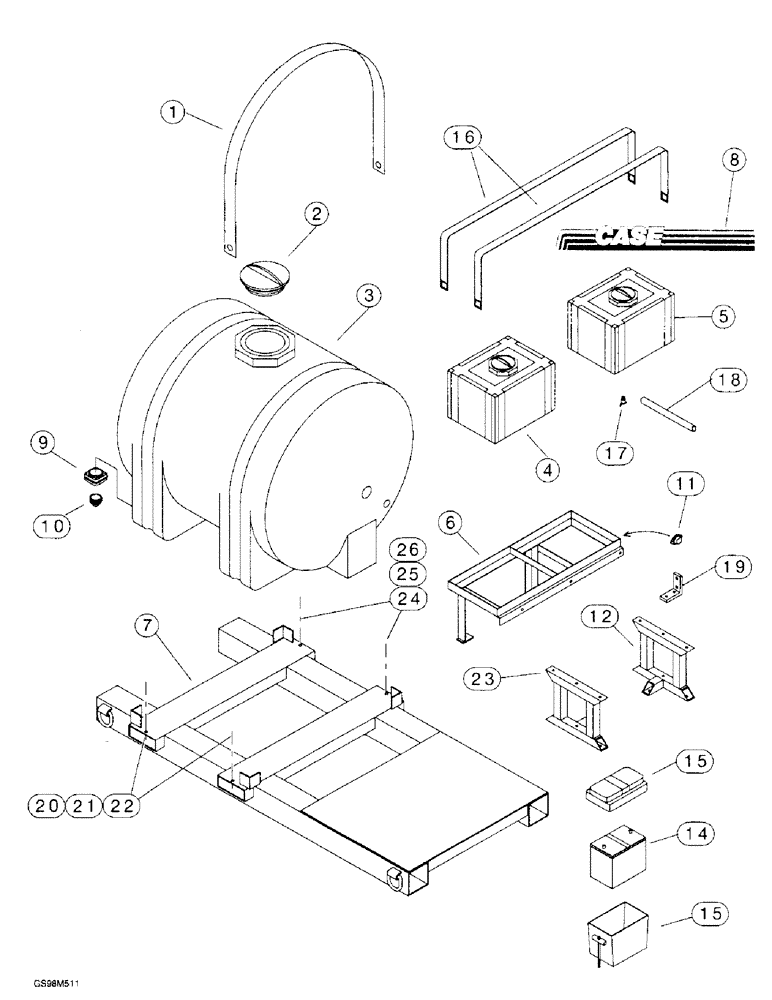

Схема запчастей Case BPDHP335 - (9-02) - FRAME AND BENTONITE TANK

Артикул

Название

Примечание

Количество

1

99040301

STRAP

- hold down, bentonite

2шт.

2

NSS

NOT SOLD SEPARAT

CAP - bentonite tank

1шт.

3

99040300

TANK

- bentonite, 335 gallon

1шт.

4

15012035

PLASTIC

TANK - anti-freeze, 12 gallon

1шт.

5

98031010

RESERVOIR

TANK - fuel, 12 gallon

1шт.

6

308212A1

STAND

- fuel / flush tank

1шт.

7

98600335

SUPPORT

FRAME - skid, bentonite

1шт.

8

179217A2

DECAL

- Case, with stripes, left-hand (Shown)

1шт.

8

179218A2

DECAL

- Case, with stripes, right-hand

1шт.

9

98060516

FITTING

- bulkhead, 2 inch

1шт.

10

98020032

PLUG

- square head, 2 inch

1шт.

11

02360213

CONTROL

SOCKET - electrical, female, 6 pole

1шт.

12

317927A1

STAND

- engine enclosure

1шт.

14

40341215

BATTERY

- electrical supply, 12 volt

1шт.

15

98091765

BOX

- battery with cover

1шт.

16

98033513

CABLE TIE

STRAP - tank hold down, fuel / flush

2шт.

17

99682912

DRAIN VALVE

VALVE - drain, 1/4 inch PT

1шт.

18

325398A1

HOSE

- fuel, 1/4 inch x 305 mm

1шт.

19

TX440164

BRACKET

- fuel filter mounting

1шт.

20

325058A1

BOLT

- 3/8 x 5 inch

2шт.

21

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

22

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

2шт.

23

98040316

STAND

- engine enclosure

1шт.

24

461-73116

HEX SOC SCREW,Btn Hd, 5/16"-18 x 1"

BOLT - BHCS, 5/16-18 x 1 inch

2шт.

25

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

26

231-1445

NUT,5/16"-18, GB

NUT - NYLock, 5/16-18

2шт.

Выбрано товаров: 26
