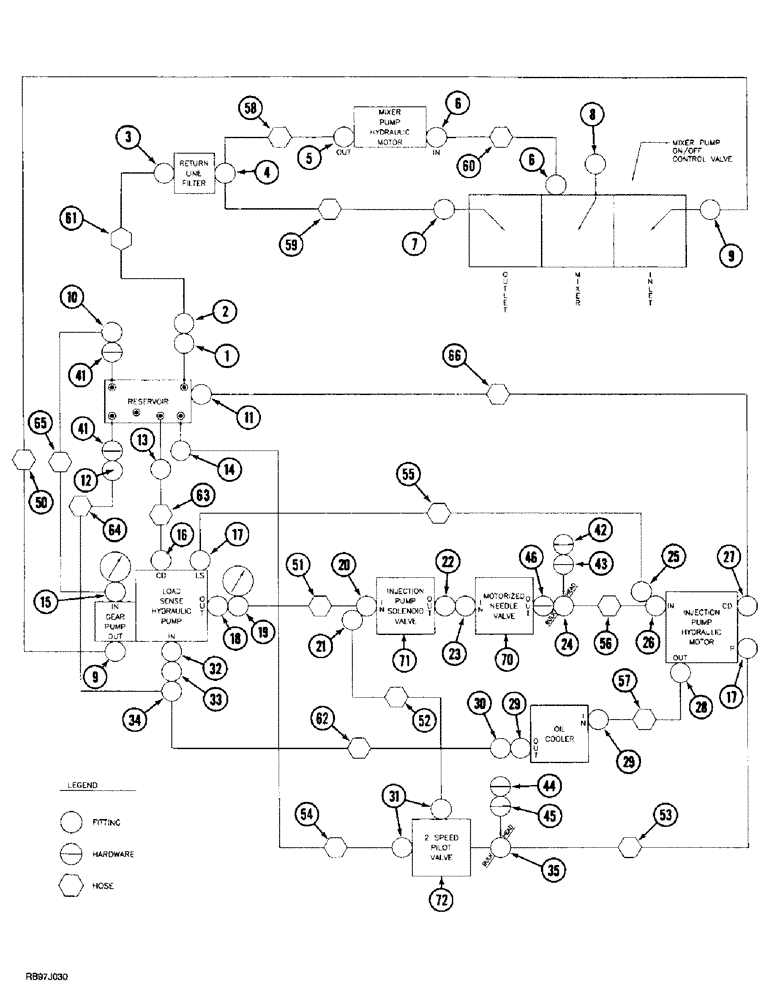

Запчасти Case BPDHP335 (9-18) - HYDRAULIC CIRCUIT

1

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight, 1-1/16-12 inch flare x O-ring boss

1шт.

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

2

98001200

VALVE, CHECK

VALVE - check

1шт.

3

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss

1шт.

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

4

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 3/4 inch x 3/4 inch x 3/4 inch

1шт.

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

5

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - straight, 1-1/16-12 flare x 3/4-16 inch O-ring boss

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

2шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

7

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 1-1/16-12 flare x 7/8-14 inch adj O-ring boss

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

8

214389

PLUG,3/4" - 16 ORB

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

9

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adj O-ring boss

2шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

10

218-5525

ELBOW,45 Degree, 1 5/16"-12 x 1 5/8"-12, 37 Degree

- 45 degree, 1-5/16-12 flare x 1-5/8-12 inch adj O-ring

1шт.

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

11

218-5320

ELBOW,90 Degree, 7/16"-20, 37 Degree x 3/4"-16, O-Ring

- 90 degree, 7/16-20 flare x 3/4-16 inch adj O-ring boss

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

12

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

CONNECTOR - straight, 1-5/16-12 flare x 1-5/8 inch O-ring

1шт.

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

13

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

CONNECTOR - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

14

218-5359

HYD CONNECTOR,7/16"-20, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - straight, 7/16-20 flare x 3/4-16 inch O-ring boss

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

15

302869A1

ELBOW

- 90 degree, special

1шт.

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

16

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

17

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, 7/16-20 inch flare x adj O-ring boss

2шт.

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.

18

302341A1

KIT

FLANGE - adapter, 1-1/16-12 inch, with hardware

1шт.

19

302870A1

ELBOW

- 90 degree, special

1шт.

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

20

302871A1

ELBOW

- 90 degree, special

1шт.

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

21

218-1092

ELBOW,45 Degree, 7/16-20" NPTF x 1/4"-18 37 Degree

- 45 degree, 7/16-20 flare x 1/4 inch PT

1шт.

22

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, 3/4-16 flare x 1-1/16-12 inch adj O-ring boss

1шт.

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

23

253510A1

FITTING

ELBOW - 90 degree, special

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

24

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

UNION - straight, 3/4-16 inch flare x bulkhead flare

1шт.

25

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

CONNECTOR - straight, 7/16-20 flare x 1/4 inch PT

1шт.

26

302872A1

ELBOW

- 90 degree, special

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

27

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, 7/16-20 flare x 1/4 inch PT

1шт.

28

218-5056

HYD CONNECTOR,1/2"-20, 37 Degree x 1/2"-20, O-Ring

CONNECTOR - straight, 1/2-20 inch flare x O-ring boss

1шт.

29

218-1046

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF

- 90 degree, 1-1/16-12 flare x 1 inch PT

2шт.

30

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree, 1-1/16-12 flare x 3/4 inch PT

1шт.

31

218-5283

ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

- 90 degree, 7/16-20 flare x 9/16-18 inch adj O-ring boss

2шт.

32

302340A1

KIT

FLANGE - adapter, 1-5/8-12 inch, with hardware

1шт.

33

218-5315

HYD CONNECTOR

ADAPTER - straight, 1-5/8-12 male O-ring boss x 1-1/16-12 female

1шт.

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

34

218-5185

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 1-1/16-12 inch adj O-ring branch x flare x flare

1шт.

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

35

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FIT STL BULKHD .375MJ .375MJ

1шт.

41

98010301

FILTER

- suction screen, 3-3/8 inch

2шт.

42

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

43

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

1шт.

45

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FIT STL BULKHD .375MJ .375MJ

1шт.

46

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

Flat 13/16" x 1 1/2" x .134", HDN

2шт.

50

302715A1

HOSE ASSY.

HOSE - 279 mm (11 inch) long, gear pump OUT to control valve INLET

1шт.

51

302718A1

HOSE ASSY.

HOSE - 495 mm (19-1/2 inch) long, hydraulic pump OUT to solenoid valve IN

1шт.

52

302720A1

HOSE ASSY.

HOSE - 254 mm (10 inch) long, solenoid valve IN to pilot valve

1шт.

53

302721A1

HOSE ASSY.

HOSE - 254 mm (10 inch) long, pilot valve to hydraulic motor P

1шт.

54

302722A1

HOSE ASSY.

HOSE - 914 mm (36 inch) long, reservoir to pilot valve

1шт.

55

302723A1

HOSE ASSY.

HOSE - 508 mm (20 inch) long, hydraulic pump LS to hydraulic motor IN

1шт.

56

302724A1

HOSE ASSY.

HOSE - 457 mm (18 inch) long, needle valve OUT to hydraulic motor IN

1шт.

57

302725A1

HOSE ASSY.

HOSE - 610 mm (24 inch) long, hydraulic motor OUT to oil cooler IN

1шт.

58

302726A1

HOSE ASSY.

HOSE - 279 mm (11 inch) long, hydraulic motor, Serial Range: OUT-filter

1шт.

59

302727A1

HOSE ASSY.

HOSE - 533 mm (21 inch) long, control valve, Serial Range: OUT-filter

1шт.

60

302728A1

HOSE ASSY.

HOSE - 305 mm (12 inch) long, control valve to hydraulic motor IN

1шт.

61

302729A1

HOSE ASSY.

HOSE - 248 mm (9-3/4 inch) long, Serial Range: filter-reservoir

1шт.

62

302730A1

HOSE ASSY.

HOSE - 1321 mm (52 inch) long, oil cooler OUT to hydraulic pump IN

1шт.

63

302731A1

HOSE ASSY.

HOSE - 241 mm (9-1/2 inch) long, hydraulic pump, Serial Range: CD-reservoir

1шт.

64

302732A1

HOSE ASSY.

HOSE - 292 mm (11-1/2 inch) long, hydraulic pump, Serial Range: IN-reservoir

1шт.

65

302733A1

HOSE ASSY.

HOSE - 476 mm (18-3/4 inch) long, gear pump, Serial Range: IN-reservoir

11шт.

66

302734A1

HOSE ASSY.

HOSE - 864 mm (34 inch) long, hydraulic motor, Serial Range: CD-reservoir

1шт.

70

99810151

VALVE, CONTROL

VALVE - needle, motorized

1шт.

71

99821112

VALVE, CONTROL

VALVE - solenoid

1шт.

72

15083011

VALVE, CONTROL

VALVE - pilot, 2 speed

1шт.

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

44

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
