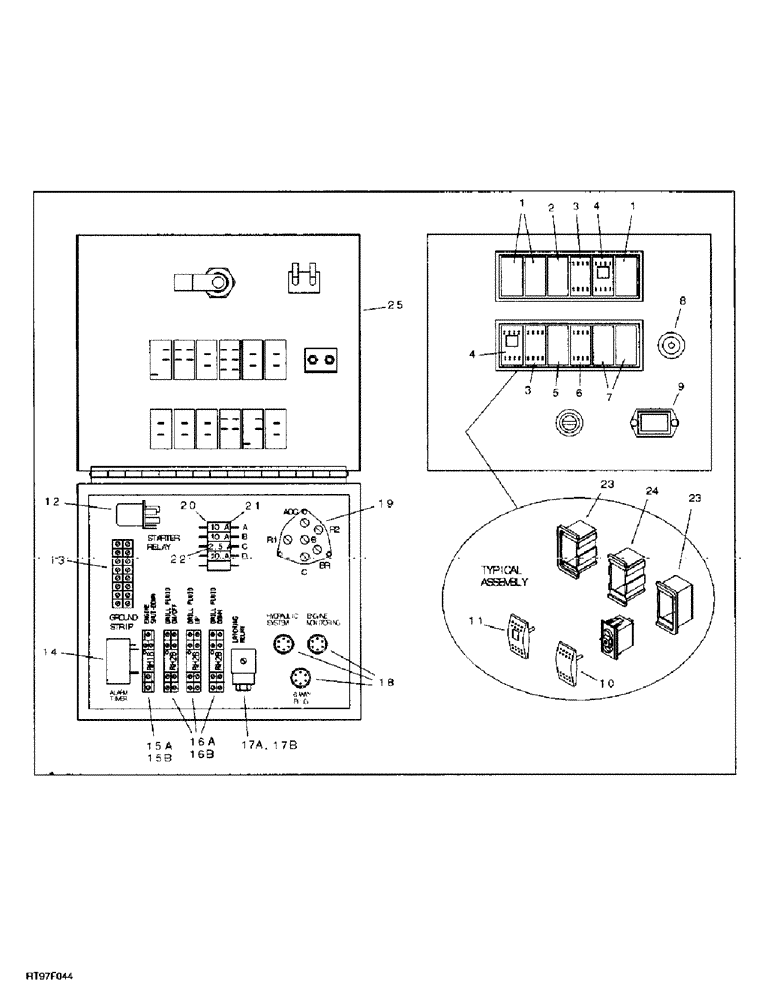

Запчасти Case BPDHP335 (9-16) - CONTROL PANEL

1

TX402114

LIGHT

- indicator, red

3шт.

2

TX402214

LIGHT

- indicator, amber

1шт.

3

TX444321

SWITCH

- on/off, DPST

2шт.

4

TX444305

SWITCH

- on/off, SPST, with light

2шт.

5

TX452251

LIGHT

- indicator, blue

1шт.

6

TX444324

SWITCH

- on/off/on, DPDT, momentary

1шт.

7

TX452241

LIGHT

- indicator, green

2шт.

8

TX400131

DIPSTICK

INDICATOR - glow plug

1шт.

9

98085094

HOURMETER

METER - hour

1шт.

10

TX444361

ACTUATOR

- switch

3шт.

11

TX444363

CLUSTER, INSTR.

ACTUATOR - switch, black, amber light

2шт.

12

TX400231

RELAY

- starter

1шт.

13

12071513

BLOCK

- terminal, 8 pole

1шт.

14

TX401213

RELAY

- timer

1шт.

15a

TX401005

SOCKET

- relay, single pole

1шт.

15b

TX400112

RELAY

- single pole

1шт.

16a

TX402005

SOCKET/RECEPTACLE

SOCKET - relay, double pole

3шт.

16b

TX400212

RELAY

- double pole

3шт.

17a

98055039

RELAY

- latching

1шт.

17b

98050311

BASE

- mounting, latching relay

1шт.

18

TX402451

MULTIPOLE CONNECTOR,Male, 6 Pole

CONNECTOR - male, panel mounting, 6 pin

3шт.

19

TX408231

SWITCH

- key

1шт.

20

TX403504

BLOCK

- fuse, 5 pole

1шт.

21

A149800

FUSE,10 Amp

- red, 10 ampere

2шт.

22

A187975

FUSE

- 1 ampere, blade type

1шт.

23

TX444383

CONTROL PANEL

BOX - switch and light mounting, end

4шт.

24

TX444384

CONTROL PANEL

BOX - switch and light mounting, center

8шт.

25

99012104

BOX

ENCLOSURE - electrical components

1шт.

26

A149803

FUSE,25 Amp

- 25 ampere

1шт.

27

A149801

FUSE,Lt Blue, 15 Amp

- 15 ampere

1шт.
