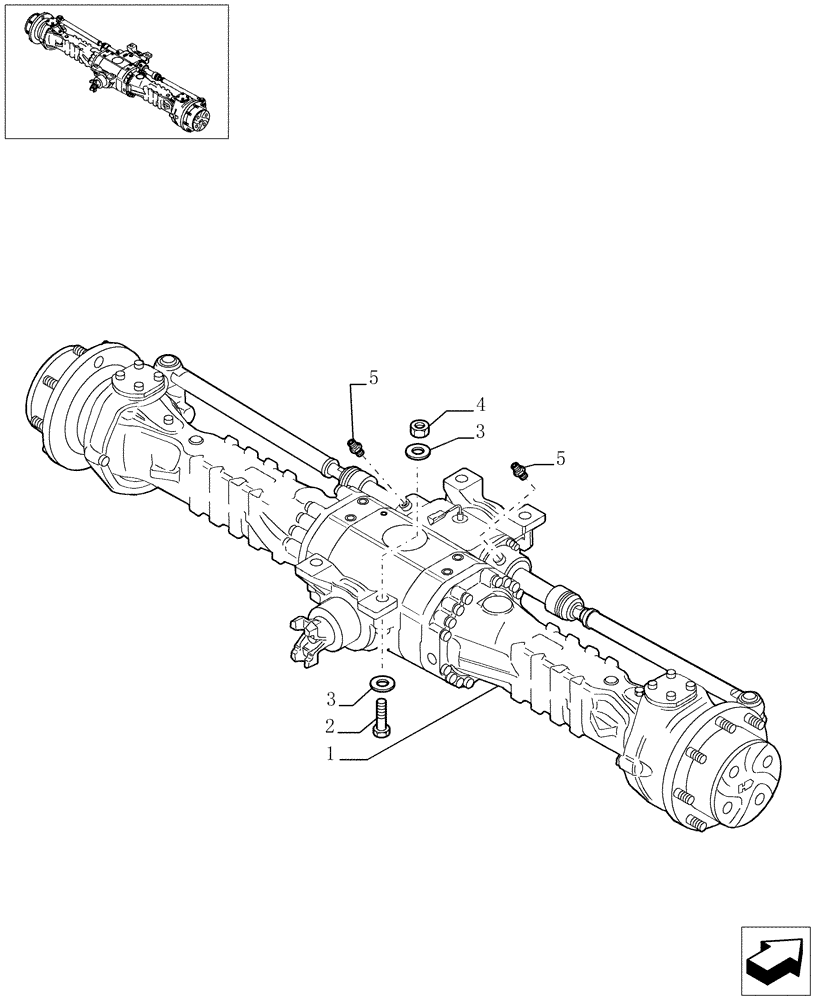

Запчасти Case TX945 (9.00447[01]) - LSD FRONT AXLE - OPTIONAL CODE 749081091 (25) - FRONT AXLE SYSTEM

1

87667779

FRONT AXLE

- 212 LSD - ASSY SEE PAG.2 TO 7

1шт.

2

15996037

BOLT,Hex, M20 x 1.5 x 240mm, Cl 10.9

4шт.

3

14497131

WASHER,21mm ID x 37mm OD x 3mm Thk

8шт.

4

12575121

NUT,M20 x 1.5, Cl 10

4шт.

5

83963374

FITTING,13/16"-16 ORFS x 3/4"-16 ORB

2шт.
