(9.00853[02]) - CLOTH-LINED SEAT WITHOUT MECHANICAL SUSPENSION - OPTIONAL CODE 749261011

Запчасти Case TX945 (9.00853[02]) - CLOTH-LINED SEAT WITHOUT MECHANICAL SUSPENSION - OPTIONAL CODE 749261011 (90) - PLATFORM, CAB, BODYWORK AND DECALS

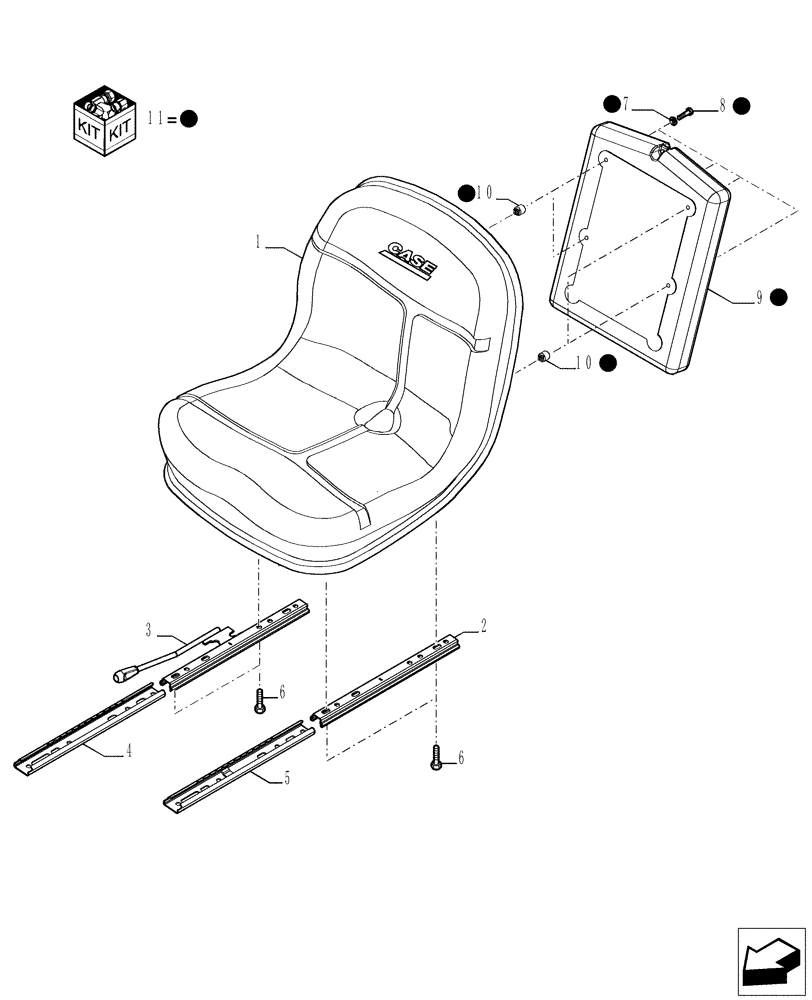

Схема запчастей Case TX945 - (9.00853[02]) - CLOTH-LINED SEAT WITHOUT MECHANICAL SUSPENSION - OPTIONAL CODE 749261011 (90) - PLATFORM, CAB, BODYWORK AND DECALS
10
11
11
11
3
11
9
7
6
5
2
11
11
11
6
10
1
4
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87753789

SEAT

1шт.

2

87753780

GUIDE

1шт.

3

87753781

GUIDE

1шт.

4

87753782

GUIDE

1шт.

5

87753785

GUIDE

1шт.

6

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

4шт.

7

895-30108

WASHER,4.3mm ID x 15mm OD x 1.2mm Thk

4шт.

8

13272417

SCREW,Pozidriv Pan Hd, M4 x 20mm, Cl 5.8, Full Thd

4шт.

9

87753787

BRIEF CASE

1шт.

10

87753788

SPACER

4шт.

11

87753786

KIT

Contains Ref. 7-10

1шт.
