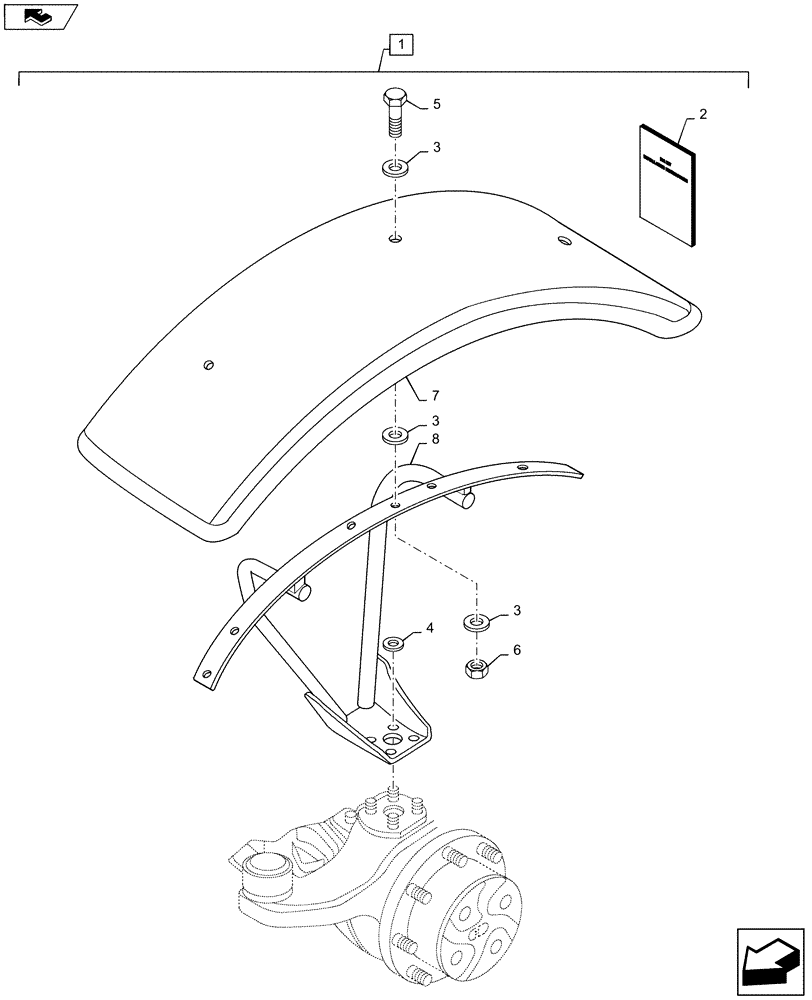

Запчасти Case TX945 (88.090.01) - DIA KIT, FENDERS (88) - ACCESSORIES

1

87718825

KIT

Dia Fenders, Incl 2 - 8

1шт.

2

87718806

INSTRUCTION

Installation For Fenders Dia Kit

1шт.

3

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

1шт.

4

12646921

WASHER,12.2mm ID x 28mm OD x 3mm Thk

1шт.

5

16043831

SCREW,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

6

16104121

NUT,M8 x 1.25, Cl 10

1шт.

7

76091494

REAR FENDER

Case Complete

1шт.

8

76092827

SUPPORT

Fender Alti

1шт.
