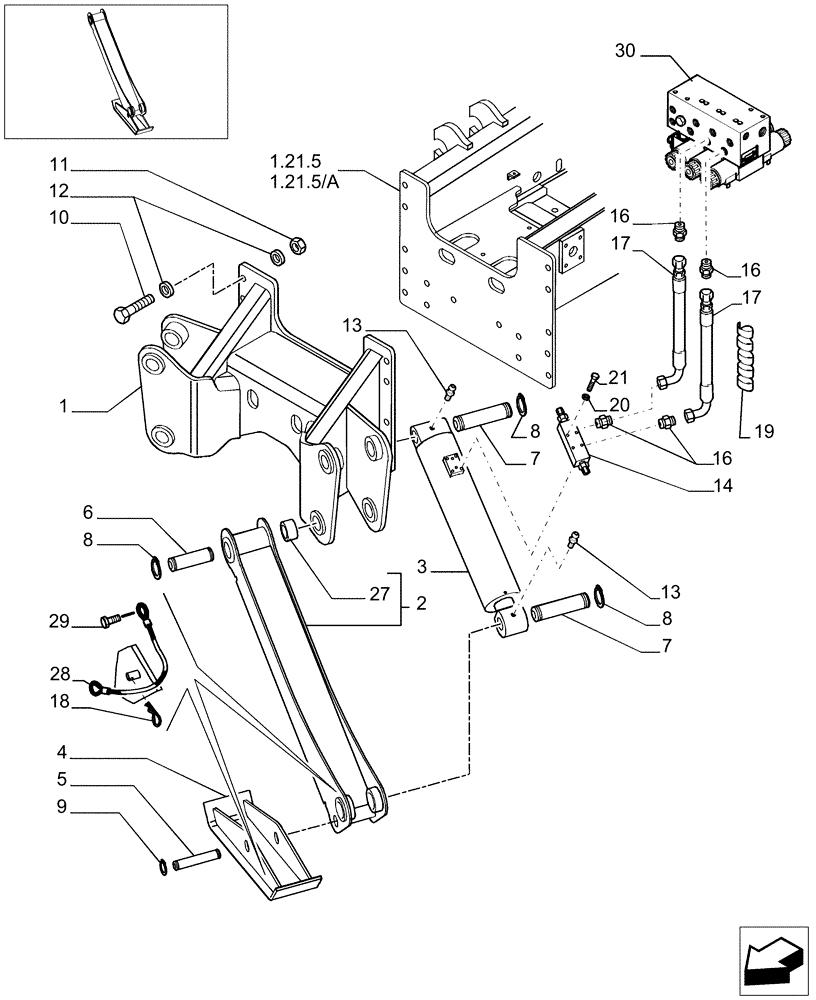

Запчасти Case TX945 (9.59001[01]) - STD STABILISER - OPTIONAL CODE 749267001 - VERSION (03/04) (39) - FRAMES AND BALLASTING

1

87613608

SUPPORT

1шт.

2

76094034

LIFT ARM

2шт.

3

87625927

CYLINDER

ASSY SEE PAG.2

2шт.

4

76092970

SLIDING PAD

, Start Year: 01-OCT-02

2шт.

5

76094038

PIN,40mm OD x 278mm L

2шт.

6

76094042

PIN,60mm OD x 250mm L

2шт.

7

85819295

PIN,60mm OD x 350mm L

4шт.

8

11069876

SNAP RING,M60, Ext

12шт.

9

11068876

SNAP RING,M40, Ext

4шт.

10

15224131

BOLT,Hex, M20 x 70mm, Cl 10.9, Full Thd

14шт.

11

12577721

NUT,M20 x 2.5, Cl 10

14шт.

12

14497131

WASHER,21mm ID x 37mm OD x 3mm Thk

28шт.

13

13407211

LUBE NIPPLE,M10 x 1

4шт.

14

85821215

CHECK VALVE

2шт.

16

85809049

FITTING,11/16"-16 ORFS x 3/4"-16 ORB

8шт.

17

76091150

FLEXIBLE HOSE

4шт.

18

76094509

COTTER PIN

2шт.

19

76081910

FLEXIBLE SHEATH

2шт.

20

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

12шт.

21

86625003

BOLT,Hex, M8 x 50mm, Cl 10.9

8шт.

27

85821194

BUSHING,60mm ID x 65mm OD x 60mm L

60X65X60

2шт.

28

76069726

CABLE,180mm L

2шт.

29

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

2шт.

30

76092746

HYDRAULIC VALVE

1шт.
