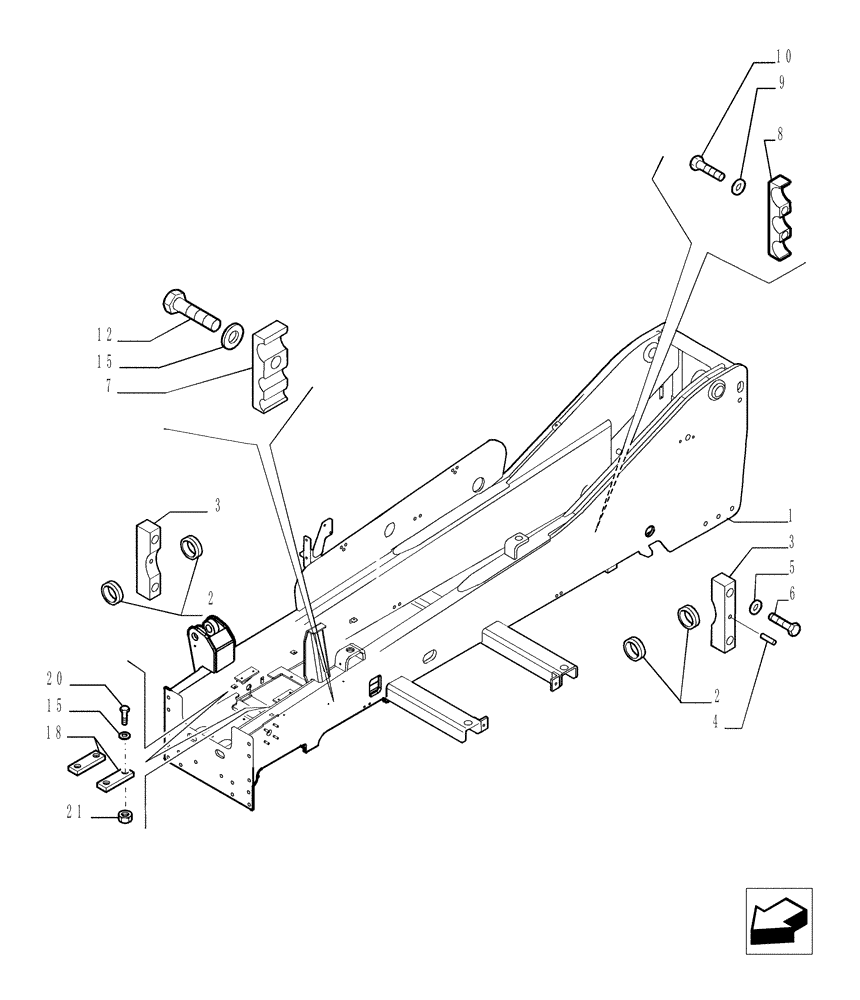

Запчасти Case TX945 (1.21.5/B[01]) - MAIN FRAME - VERSION 04 (39) - FRAMES AND BALLASTING

1

87692407

FRAME

1шт.

2

85820990

BUSHING,60mm ID x 80mm OD x 25mm L

4шт.

3

76080026

CLAMP

4шт.

4

14601174

ROLL PIN

4шт.

5

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

8шт.

6

15233034

SCREW

8шт.

7

76080030

CLAMP

1шт.

8

76080033

CLAMP

1шт.

9

11190579

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

10

11234721

BOLT,Hex, M10 x 1.25 x 45, 8.8

2шт.

12

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

1шт.

15

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

5шт.

18

76088078

PAD

2шт.

20

16043831

SCREW,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

21

16100821

NUT,M8, Cl 10

4шт.

22

87692379

PLUG

not illustrated

2шт.
