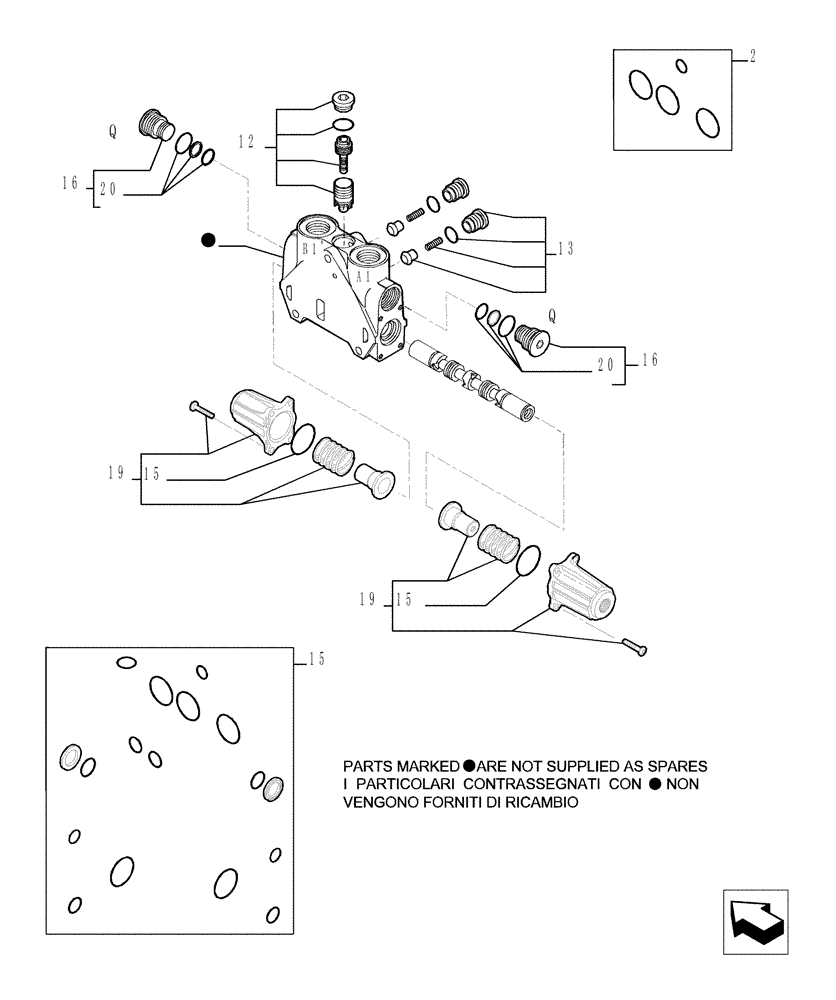

Запчасти Case TX945 (9.00825B[07]) - 3 SPOOL VALVE - COMPONENTS- OPTIONAL CODE 749001081 (35) - HYDRAULIC SYSTEMS

2-16

87642810

BODY

ASSY - SECTION BOOM

1шт.

2

85825473

SEAL KIT

1шт.

12

85819378

KIT

1шт.

13

85811938

KIT,Check Valve

1шт.

15

85824281

SEAL KIT,Control Valve Section, Complete

1шт.

16

85811937

PLUG

2шт.

19

76090104

KIT

2шт.

20

85811933

SEAL KIT,Secondary Valve

1шт.
