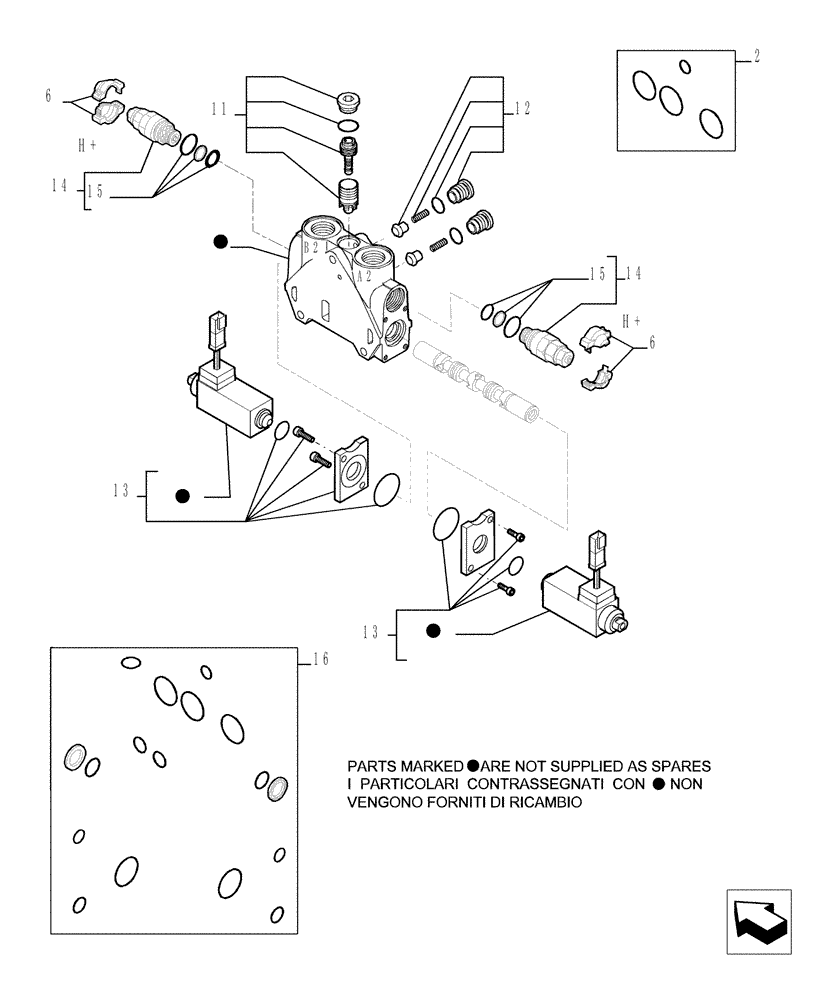

Запчасти Case TX945 (9.00825A[04]) - 3 SPOOL VALVE - COMPONENTS- OPTIONAL CODE 749001071 (35) - HYDRAULIC SYSTEMS

2-16

87642809

BODY

ASSY - SECTION FORK

1шт.

2

85825473

SEAL KIT

1шт.

6

85811934

COVER,Half, Orange

- In Alternative

2шт.

6

85811935

COVER,Half, Blue

- In Alternative

2шт.

11

85819378

KIT

1шт.

12

85811938

KIT,Check Valve

1шт.

13

76090105

KIT

1шт.

14

87572321

VALVE PRESSURE RELIE

1шт.

15

85811933

SEAL KIT,Secondary Valve

1шт.

16

85824281

SEAL KIT,Control Valve Section, Complete

1шт.
